OMRON - E3S-DBP21T - 388938





Ship on today

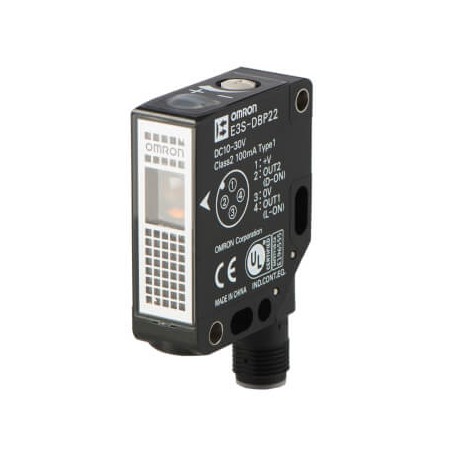

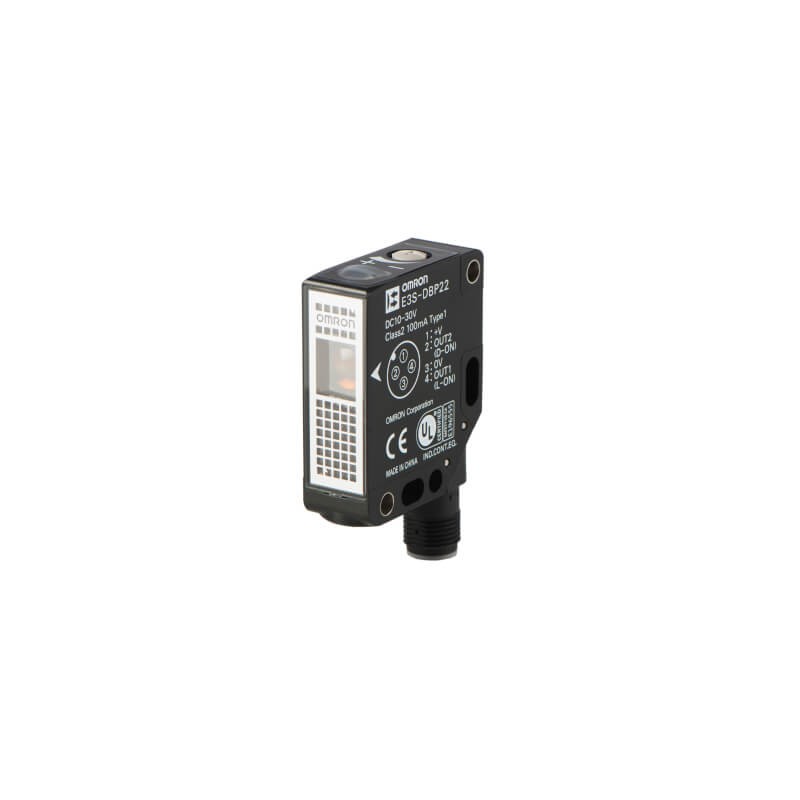

Photoelectric sensor, Obj transp Plastic Mirror (not included) Potentiometer 4.5m M12 PNP PRO +

More details

* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

Price: $152.36
*This price is per unit and is the net value (not including taxes if applicable).
Up to 35% discount for registered clients.

Request a quote
How it Works

How does the quotation request work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with our price proposals
4 You can directly process the order for the quotation

There are several options for payment
- Credit card
- Wire Transfer
- PayPal

More info

E3S-DB Special application sensors
Transparent object sensor
E3S-DB sensor provides most reliable detection of all kinds of transparent objects such as PET bottles, glass bottles or transparent trays.
• Most reliable detection of all transparent objects
• SmartTeach enabling fast set up and optimum threshold setting
• Narrow beam types detecting smallest object gaps (min. 3 mm)
• Proven for environments in Food & Beverage industry
Ordering information
Sensor type Sensing distance recommended (max.)
Connection method Order code*1
NPN output PNP output
Retro-reflective with MSR function
Smart teach Standard 3.5 m (4.5 m)*2
– –  – E3S-DBN11 2M E3S-DBP11 2M
–  – – E3S-DBN21 E3S-DBP21
– – –  E3S-DBN31 E3S-DBP31
Narrow beam*3
0.5 m (0.7 m)*4
– –  – E3S-DBN12 2M E3S-DBP12 2M
–  – – E3S-DBN22 E3S-DBP22
– – –  E3S-DBN32 E3S-DBP32
Trimmer Standard 3.5 m (4.5 m)*2 – –  – E3S-DBN11T 2M E3S-DBP11T 2M
–  – – E3S-DBN21T E3S-DBP21T
– – –  E3S-DBN31T E3S-DBP31T Narrow beam*3 0.5 m (0.7 m)*4 – –  – E3S-DBN12T 2M E3S-DBP12T 2M
–  – – E3S-DBN22T E3S-DBP22T
– – –  E3S-DBN32T E3S-DBP32T
*1 Please order reflector separately.
*2 Rated with E39-R8
*3 For narrow beam type please use micro-triple reflector (e.g. E39-R21)
*4 Rated with E39-R21
Sensing method Retro-reflective with MSR function
Model NPN output E3S-DBN_1 E3S-DBN_1T E3S-DBN_2 E3S-DBN_2T Item PNP output E3S-DBP_1 E3S-DBP_1T E3S-DBP_2 E3S-DBP_2T Sensing distance, typ. max 0 to 4.5 m (with E39-R8) 0 to 700 mm (with E39-R21)
Sensing distance, recommended 0 to 3.5 m (with E39-R8) 0 to 500 mm (with E39-R21)
Light source (wavelength) Red LED (624 nm)
Power supply voltage 10 to 30 VDC, including 10% ripple (p-p)
Operating modes OUT1: L-ON/OUT2: D-ON (antivalent output)
Protection circuits Reversed power supply polarity protection, Output short-circuit protection,
Reversed output polarity protection, Missconnection protection, Mutual interference suppression
Response time 0.5 ms
Sensitivity adjustment SmartTeach 11-turn trimmer SmartTeach 11-turn trimmer
Degree of protection IEC: IP67, DIN 40050-9: IP69K
Connection method Pre-wired cable (standard length: 2 m) or M12 4-pin connector or Pigtail (0.3 m/M12 4-pin)
Indicators Light indicator (orange), Stability indicator (green)
SmartTeach providing fast & easy setting of optimum thresholds
Narrow beam models for detecting gaps down to 3 mm
PC Tool enables detailed identification of object attenuation level and optimizing sensor set up
Auto-compensation-control for contamina- tion keeps light level stable in harsh environments
