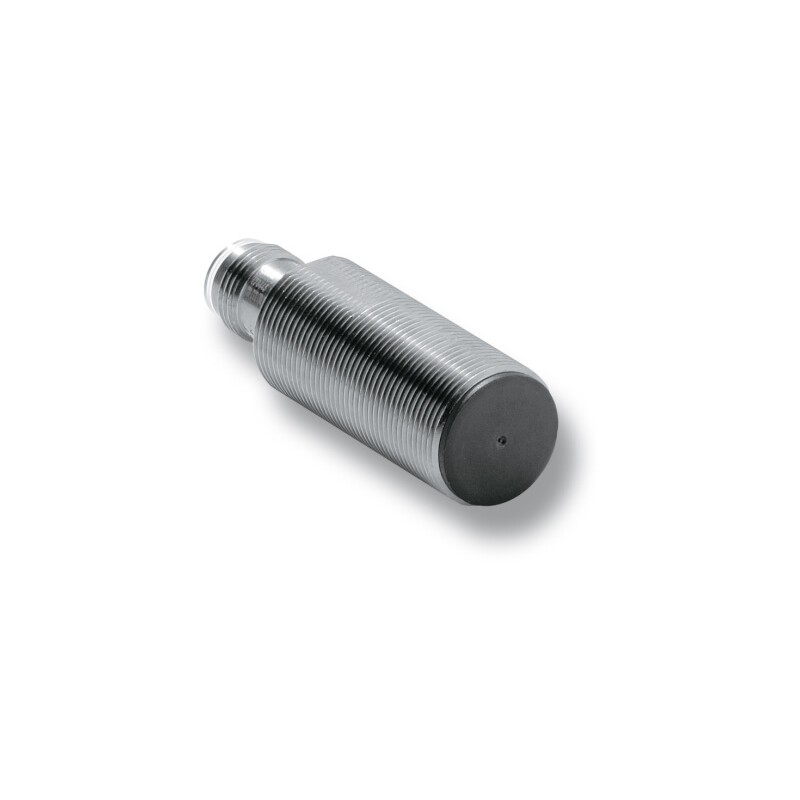

OMRON - E2A3-M12KS06-WP-C2 2M - 183118 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

OMRON - E2A3-M12KS06-WP-C2 2M - 183118

E2A3-M12KS06-WP-C2 2M




Ship on today

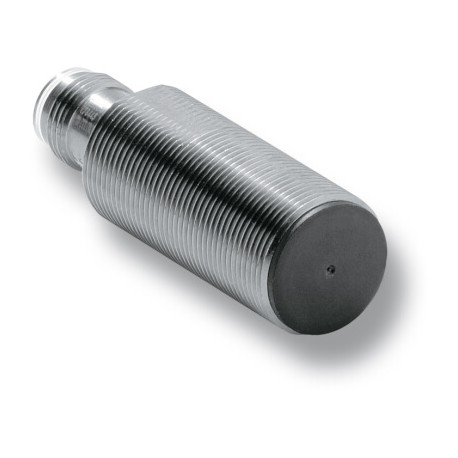

Proximity sensor, short-range 3h Enr Triple 6mm M12 NPN 2m Cable NC

More details

Inductive sensors - Compact - cylindrical - OMRON

Inductive sensors - Compact - cylindrical - E2A3 - OMRON

* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

Price: $44.36
*This price is per unit and is the net value (not including taxes if applicable).
Up to 35% discount for registered clients.

Request a quote
How it Works

How does the quotation request work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with our price proposals
4 You can directly process the order for the quotation

There are several options for payment
- Credit card
- Wire Transfer
- PayPal

More info

E2A3 Compact – cylindrical
Long (triple) distance inductive sensor in cylindrical brass housing
The E2A3 family features an optimised sensing performance to achieve triple sensing distance for quasi flush mounting requirements.
• Triple distance for enhanced sensor protection from mechanical damage
• IP67 and IP69k
Ordering information
(For different cable materials and lengths, special housing length or special connectors, please refer to complete datasheet.)
Size Sensing distance Thread length
(overall length)
Output configuration
Order code (for pre-wired types with 2 m PVC cable) Operation mode: NO Operation mode: NC
M8  – 3.0 mm 27 (40) mm PNP E2A3-S08KS03-WP-B1 2M E2A3-S08KS03-WP-B2 2M NPN E2A3-S08KS03-WP-C1 2M E2A3-S08KS03-WP-C2 2M
M12  – 6.0 mm 34 (50) mm PNP E2A3-M12KS06-WP-B1 2M E2A3-M12KS06-WP-B2 2M NPN E2A3-M12KS06-WP-C1 2M E2A3-M12KS06-WP-C2 2M
M18  – 11.0 mm 39 (60) mm PNP E2A3-M18KS11-WP-B1 2M E2A3-M18KS11-WP-B2 2M NPN E2A3-M18KS11-WP-C1 2M E2A3-M18KS11-WP-C2 2M
M30  – 20.0 mm 44 (65) mm PNP E2A3-M30KS20-WP-B1 2M E2A3-M30KS20-WP-B2 2M
NPN E2A3-M30KS20-WP-C1 2M E2A3-M30KS20-WP-C2 2M
Connector types (M12)
Size Sensing distance Thread length
(overall length)
Output configuration
Order code (for M12 connector types)
Operation mode: NO Operation mode: NC
M8  – 3.0 mm 27 (44) mm PNP E2A3-S08KS03-M1-B1 E2A3-S08KS03-M1-B2
NPN E2A3-S08KS03-M1-C1 E2A3-S08KS03-M1-C2
M12  – 6.0 mm 34 (49) mm PNP E2A3-M12KS06-M1-B1 E2A3-M12KS06-M1-B2
NPN E2A3-M12KS06-M1-C1 E2A3-M12KS06-M1-C2
M18  – 11.0 mm 39 (54) mm PNP E2A3-M18KS11-M1-B1 E2A3-M18KS11-M1-B2
NPN E2A3-M18KS11-M1-C1 E2A3-M18KS11-M1-C2
M30  – 20.0 mm 44 (59) mm PNP E2A3-M30KS20-M1-B1 E2A3-M30KS20-M1-B2
NPN E2A3-M30KS20-M1-C1 E2A3-M30KS20-M1-C2
Item M8 M12 M18 M30
E2A3-S08KS03 E2A3-M12KS06- E2A3-M18KS11 E2A3-M30KS20
Sensing distance 3 mm10% 6 mm10% 11 mm10% 20 mm10%
Response frequency 700 Hz 350 Hz 250 Hz 80 Hz
Power supply voltage
(operating voltage)
12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)
Protective circuits Power supply reverse
polarity protection, surge suppressor, short-circuit protection
Output reverse polarity protection, power supply reverse polarity protection, surge suppressor, short-circuit protection
Operating –25to 70°C
temperature Storage
Degree of protection IP67 after IEC 60529 IP69K after DIN 40050 part 9
Material Case Stainless steel Brass-nickel plated
Sensing surface PBT
