B3F-4100 137317 B3F 4100M OMRON 12x12 Stroke plane FO:130g with term earth
B3F-4100
137317
B3F4100
OMRON
12x12 Stroke plane FO:130g with term earth
12x12 Fo:130g flat emboloar with earth end
Miniature Limit Switches > B3F
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info

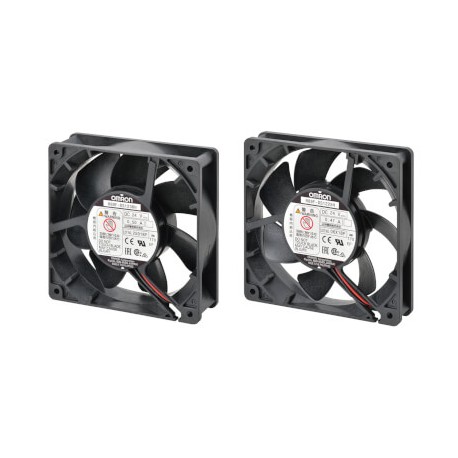

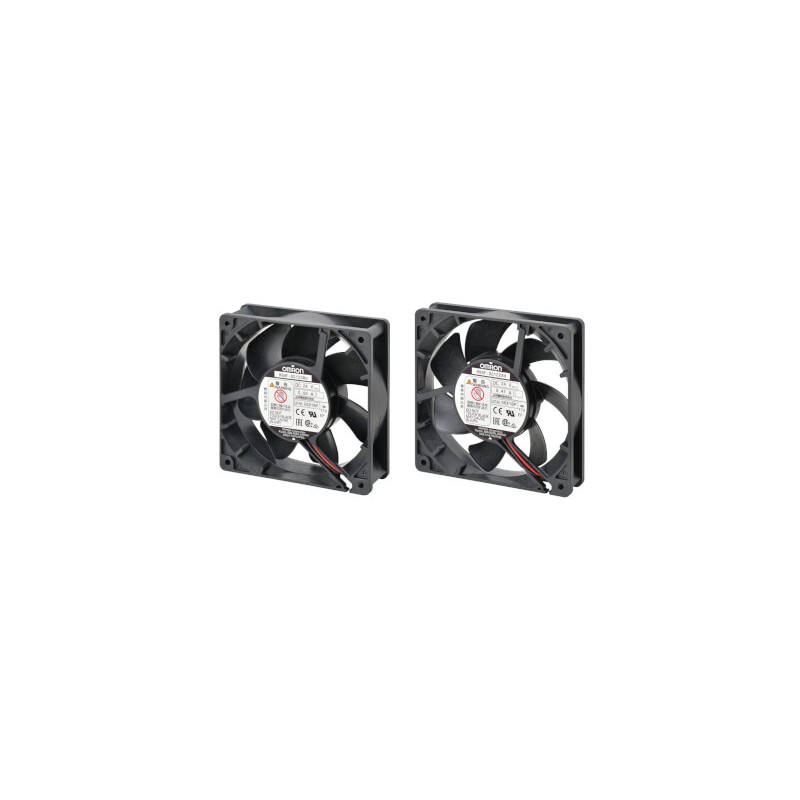

▲R89F-D
DC fans feature high air flow, high reliability and low noise. DC fans consume less power and its temperature rise of the bearings is very low.
- Low-voltage input 24 VDC
- Low power consumption
- Shorter replacement times, thanks to longer service life
- Expected life of 40,000 hours
- Available in set packages (including finger guards, connector cables and mounting screws)
- CE marking and certification according to various standards, including UL and CSA
Ordering information
DCAxial Fans
| Rated voltage | Dimension [mm] | Permitted voltage fluctuation range | Frequency [Hz] | Rated current [A] 2 Nominal value | Rated input [W] 2 Nominal value | Rated rotational speed [r/min-1] 2 Nominal value | Maximum flow rate [m³/min] 2 Nominal value | Maximum static pressure [Pa] 2 Nominal value | Noise [dB] 2 Nominal value | Order code |
|---|---|---|---|---|---|---|---|---|---|---|
| 24 VDC | 120×120×t25 | 20.4 to 27.6 V | – | 0.47 | 11.28 | 4100 | 3.68 | 120 | 51 | R89F-DS1225H |
| 12 to 27.6 V | 0.17 | 4.08 | 2850 | 2.5 | 64 | 40 | R89F-DS1225L | |||
| 120×120×t38 | 20.4 to 27.6 V | 0.5 | 12 | 3600 | 3.88 | 135 | 49 | R89F-DS1238H | ||
| 14 to 27.6 V | 0.11 | 2.64 | 1950 | 2.1 | 39.6 | 32 | R89F-DS1238L |
Set models
| Set Contents | Order code |
|---|---|
| Fan, Finger guard × 1, M4 Screw (40 mm) × 4and nut set × 4 | R89F-DS1225H-S1 |
| Fan, Finger guard × 1, M4 Screw (40 mm) × 4and nut set × 4 | R89F-DS1225L-S1 |
| Fan, Finger guard × 1, M4 Screw (55 mm) × 4and nut set × 4 | R89F-DS1238H-S1 |
| Fan, Finger guard × 1, M4 Screw (55 mm) × 4and nut set × 4 | R89F-DS1238L-S1 |
| Fan, Finger guard × 2, M4 Screw (40 mm) × 4and nut set × 4 | R89F-DS1225H-S2 |
| Fan, Finger guard × 2, M4 Screw (40 mm) × 4and nut set × 4 | R89F-DS1225L-S2 |
| Fan, Finger guard × 2, M4 Screw (55 mm) × 4and nut set × 4 | R89F-DS1238H-S2 |
| Fan, Finger guard × 2, M4 Screw (55 mm) × 4and nut set × 4 | R89F-DS1238L-S2 |
Accessories
| Type | Size [mm] | Material | Weight [g] | Applicable Axial Fans | Order code |
|---|---|---|---|---|---|
| Finger Guards 2 Finger Guards reduce the flowrate by approximately 2% to 5%. | 120×120 | Steel, nickel-chrome plated | Approx. 45 | R89F-DS1225⬜series R89F-DS1238⬜series | R87F-FG120 |
| Filter 2 Filters reduce theflow rate by approximately 20% to 40%. Ensure that there is no clogging. 2 Thefilter contains one medium. | Plastic | Approx. 43 | R87F-FL120 | ||
| Aluminium | R87F-FL120S | ||||
| Media | – | 5 max. (Set of five) | R87F-FL120-M120 |
Mounting screws are not provided.
Specifications
| Item | R89F-DS1225⬜ | R89F-DS1238⬜ | |
|---|---|---|---|
| Motor type | Brushless DC motor | ||
| Terminaltype | Lead wires | ||
| Insulationclass | Class E (UL class A) | ||
| Insulationresistance | 10 MΩ min. (at 500 VDC) Betweenlead wire conductor and frame | ||
| Insulationwithstand voltage | 500 VAC (1 minute) Betweenlead wire conductor and frame | ||
| Ambient operatingtemperature | –20 to +70°C (no icing) | ||
| Ambient storagetemperature | –30 to +70°C (no icing) | ||
| Ambient humidity | 20% to 85% | ||
| Protection | Restraint burnout protection (Current blocking function) Power supply lead wire reversepolarity protection | ||
| Materials | Frame | PBT/ABS alloy (UL94V-0) | |
| Blades | PPHOX (UL94V-1) | ||
| Bearings | Ball bearings | ||
| Weight | Approx. 280 g | Approx. 330 g | |
| Compliantstandards | EN/IEC 60950 (CE marking compliant) EAC RCM | ||
| Certifiedstandards | UL: UL507 (Recognition) CSA:C22.2 No.113 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| B3F-4100 B3F4100 137317 | 240 Kbytes |
 |
| B3F-4100 B3F4100 137317 r89f_datasheet_en.pdf | 5 Mbytes |
|
