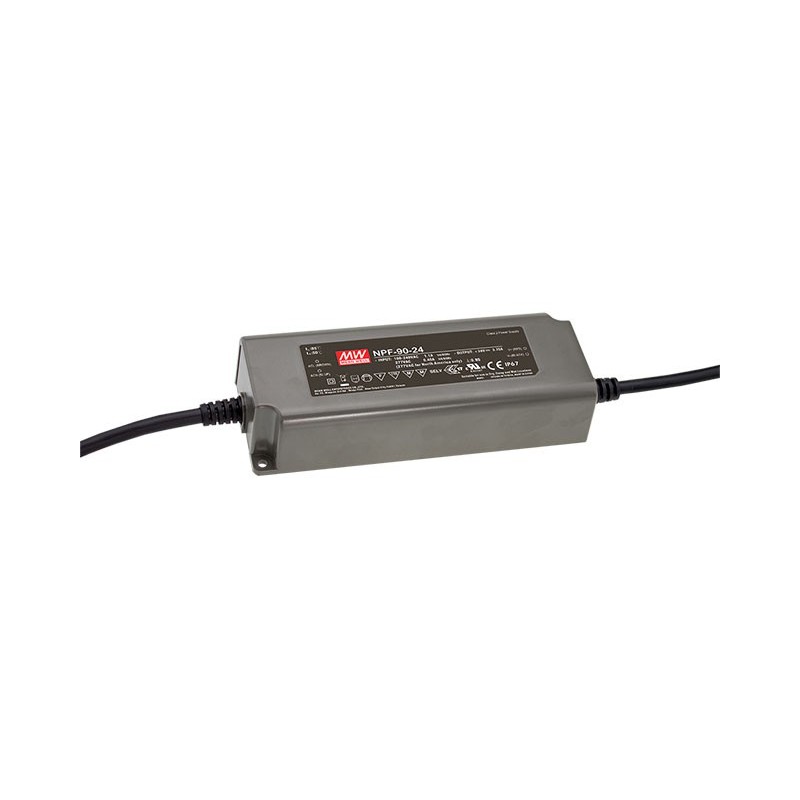

NPF-90-54 MEANWELL AC-DC Single output LED driver with Active PFC, Output 54VDC / 1.67A

LED driver.

Specially designed for powering LEDs directly in a steady stream.

Format in box Waterproof plasticIP67.

Input range90-305Vca47-63Hz.

Output in constant current1670mA.

Range of output voltage32,4 to 54Vccaccording to demade the load.

Power:90,1 W.

Efficiency typical:Total of 90.5%.

Input class II without grounding.

Factor corrector, power>0,96to 230vac at full load.

Consumption without load <0,15 W.

Operating temperature range of caseTcfrom-40ºCup+70ºC.

Dimensions (Length x Width x Height):171 x 63 x 37.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.

You can also work in voltage mode constant giving a fixed voltage of 54V if the load is powered at constant voltage and does not overcome the maximum output power.

With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US.
