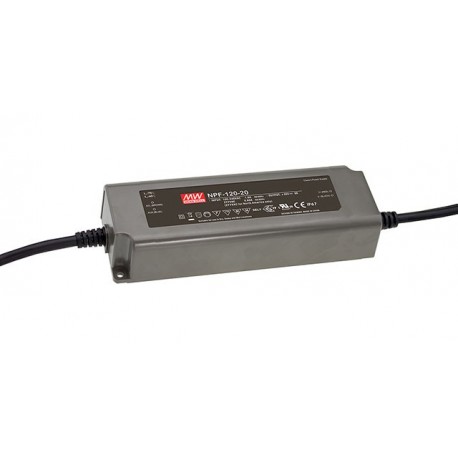

NPF-120-24 MEANWELL AC-DC Single output LED driver mix mode (CC+CV) with Active PFC, Output 24VDC / 5A

LED driver.

Specially designed to feed LED strips.

Format in box waterproof plasticIP67.

Input range90-305Vca47-63Hz.

Output voltage24vdc.

Output intensity5A. Range of output current 0-5A according to demand load.

Power:120W.

Efficiency typical:Total of 90.5%.

Input class II without grounding.

Factor corrector, power>0.96to 230vac at full load.

Consumption without load <0,15 W.

Operating temperature range of caseTcfrom-40ºCup+70ºC.

Dimensions (Length x Width x Height):191 x 63 x 37.5 mm

5 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power.

With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US.
