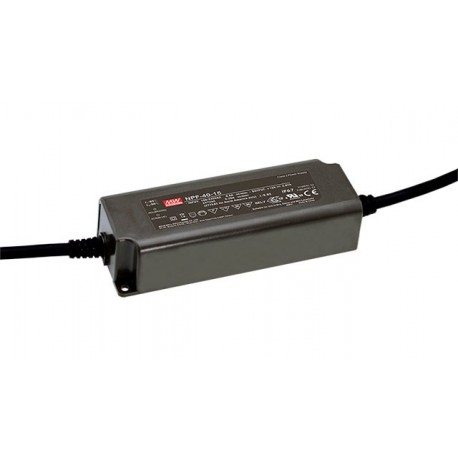

NPF-40-24 MEANWELL AC-DC Single output LED driver with Active PFC, Output 24VDC / 1.67A
NPF-40-24
MEANWELL
AC-DC Single output LED driver with Active PFC, Output 24VDC / 1.67A
LED DRIVERS > NPF
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | NPF-40-24 |
|---|---|
| Long Description | LED driver. Specially designed to feed LED strips. Format in box waterproof plasticIP67. Input range90-305Vca47-63Hz. Output voltage24vdc. Output intensity1670mA. Range of output current 0-1670mA according to demand load. Power:40W. Efficiency typical:Eighty nine%. Input class II without grounding. Factor corrector, power>0.95to 230vac at full load. Consumption without load <0,15 W. Operating temperature range of caseTcfrom-40ºCup+70ºC. Dimensions (Length x Width x Height):150 x 53 x 35mm. 5 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with LED strips or LED bulbs, which are fed at constant voltage. Working mode constant voltage giving a fixed voltage of 12V if the load is powered at constant voltage and does not overcome the maximum output power. With plastic housing, watertight, designed for lighting applications in indoor, decorative, architectural, signage, mobile (roads, screens...) or tunnel lighting. Suitable for damp and wet conditions. Approved HL Class I Division 2 for ex-zones in the US. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP67 |
| Applications | Lighting |
| Series | NPF-40 |
| State | Recommended Model |
| Warranty (Years) | 5,00 |
| Height (mm) | 35.00 |
| Width (mm) | 53.00 |
| Long/Background | 150.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 305,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Output voltage | 24,00 |
| Power (W) | 40,00 |
| Peak Power (W) | Forty |
| Output connector | Cable |
| Isolation (V) | 3.750,00 |
| Approvals | CCC, CE, ENEC, UL |
