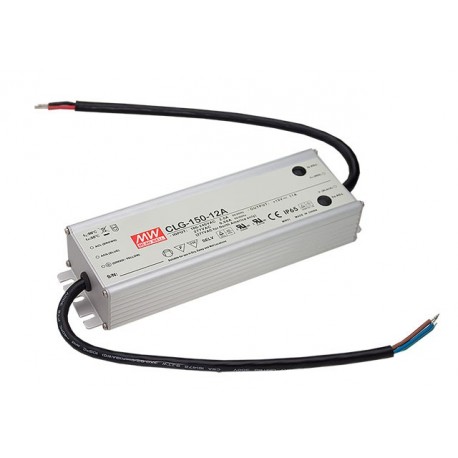

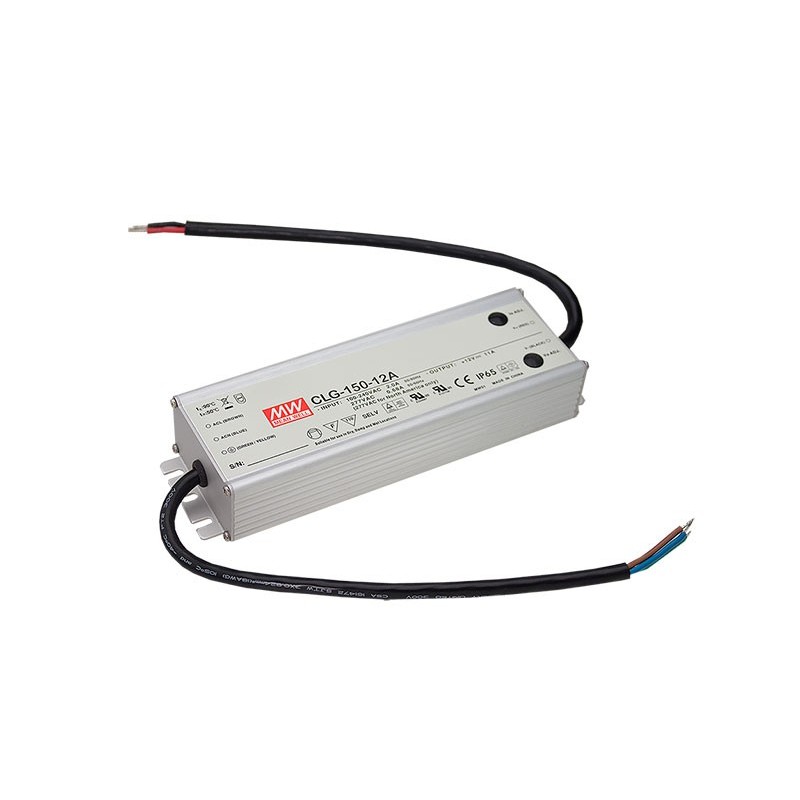

CLG-150-36C MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with PFC, Output 36VDC / 4.2A, IP00, te..

LED driver.

Specially designed for powering LEDs directly in a steady stream.

Format in metal box.

Input range90-295Vca47-63Hz.

Output in constant current4,2 A.Adjustable by external potentiometer (2,1-4,2 A).

Range of output voltage with current mode constant27 to 36Vccaccording to demand load.

The output voltage in voltage mode constant36Vcc.Adjustable by external potentiometer (31-41Vcc).

Power:151,2 W.

Efficiency typical: 91%.

Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current. Connection terminals for input and output.

Input class I with grounding.

Factor corrector, power>0,95to 230vac at full load.

Operating temperature range of caseTcfrom-30ºCup+70ºC.

Dimensions (Length x Width x Height):229 x 68 x 38,8 mm

3 years of warranty.

Manufacturer: MEAN WELL.

The series CLG are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source. This version CLG-C has connection terminals of input and output.

You can also work in voltage mode constant giving a fixed voltage of 36V if the load is powered at constant voltage and does not overcome the maximum output power.

With metal housing water-tight. The series CLG has a high reliability with active PFC. Burn test at 100% load. Suitable for applications of LED lighting, signage, mobile, and public lighting in dry environments, humid, and wet conditions . Complies with the requirements of security at the global level for lighting.
