CLG-150-30A
MEANWELL
1
Available Ship on today

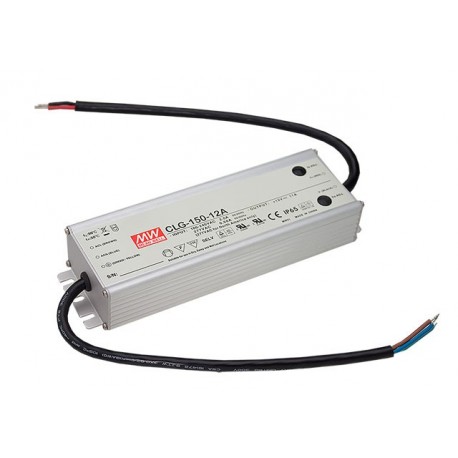

AC-DC Single output LED driver Mix mode (CV+CC) with PFC, Output 30VDC / 5A, IP65, cable output, Dimming with Potentiometer
LED DRIVERS > CLG
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | CLG-150-30A |
---|---|
Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in metal boxIP65. Input range90-295Vca47-63Hz. Output in constant current5A.Adjustable by external potentiometer (2,5-5A). Range of output voltage with current mode constantFor 22.5 to 30vdcaccording to demand load. The output voltage in voltage mode constant30vdc.Adjustable by external potentiometer (26-32Vcc). Power:150W. Efficiency typical: 91%. Potentiometers:This model incorporates 2 external potentiometers that allows us to regulate the output voltage and the maximum output current. Input class I with grounding. Factor corrector, power>0,95to 230vac at full load. Operating temperature range of caseTcfrom-30ºCup+70ºC. Dimensions (Length x Width x Height):222,2 x 68 x 38,8 mm 3 years of warranty. Manufacturer: MEAN WELL. The series CLG are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current and the output voltage can be adjusted byexternal potentiometerslocated in the housing of the source. You can also work in voltage mode constant giving a fixed voltage of 30V if the load is powered at constant voltage and does not overcome the maximum output power. With metal housing IP65. The series CLG has a high reliability with active PFC. Burn test at 100% load. Suitable for applications of LED lighting, signage, mobile, and public lighting in dry environments, humid, and wet conditions . Complies with the requirements of security at the global level for lighting. Include cable approved for Europe (VDE) , Usa (UL), Korea (KC), Taiwan (BSMI) , China (CCC), Brazil (IEC 60245-4 ), Australia (RCM) and Japan (PSE). |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP65 |
Applications | Lighting |
Series | CLG-150 |
State | Do not Use for New Designs |
Warranty (Years) | 3,00 |
Height (mm) | 38.80 |
Width (mm) | 68.00 |
Long/Background | 222.20 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 295,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 2.500,00 |
Intensity of Output Maximum (mA) | 5.000,00 |
Output current mA | 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3200, 3300, 3400, 3500, 4000, 4500, 5000 |
Power (W) | 150,00 |
Peak Power (W) | One hundred fifty |
Output connector | Cable |
Isolation (V) | 3.750,00 |
Approvals | CCC, CE, PSE, UL |
