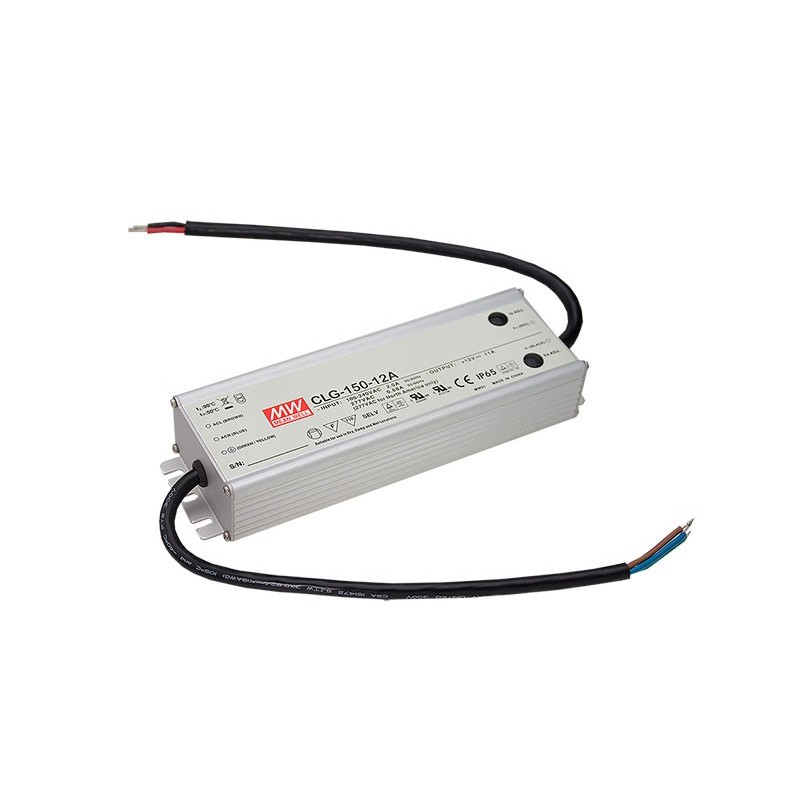

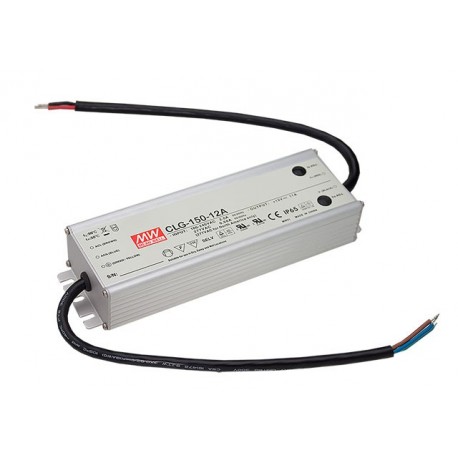

CLG-150-20B MEANWELL AC-DC Single output LED driver Mix mode (CV+CC) with PFC, Output 20VDC / 7.5A, IP67, ca..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in metal boxIP67.

Input range90-295Vca47-63Hz.

Output in constant current7,5 A.

Range of output voltage with current mode constant15 to 20vdcaccording to demade the load.

Power:150W.

Efficiency typical:90%.

Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.

Input class I with grounding.

Factor corrector, power>0,95to 230vac at full load.

Operating temperature range of caseTcfrom-30ºCup+70ºC.

Dimensions (Length x Width x Height):222,2 x 68 x 38,8 mm

3 years of warranty.

Manufacturer: MEAN WELL.

The series CLG are LED Drvers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current.

You can also work in voltage mode constant giving a fixed voltage of 20V, if a load is fed at constant voltage and does not overcome the maximum output power.

With metal housing water-tight. The series CLG has a high reliability with active PFC. Burn test at 100% load. Suitable for applications of LED lighting, signage, mobile, and public lighting in dry environments, humid, and wet conditions . Complies with the requirements of security at the global level for lighting.

This model is not recommended for dimming of LED strips, since the computer regulates reducing this crash the maximum output current. If the strip consumes less of the power of the equipment when we start to regulate it will do nothing, because the output current is giving is already decreasing. Nor do we lose 30% of power of the strip as in the low levels of regulation this can you blink, or have very low accuracy for the regulation in the low levels. If you need regular, LED strips, we recommend the series PWM.

Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).

Con dimmers 1-10V we can only reach 10% of regulation without shutting down the output.

Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
