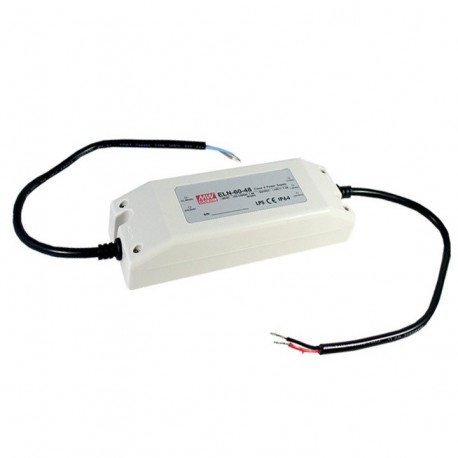

ELN-60-9P MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 9VDC / 5A, Dimming with PWM
ELN-60-9P
MEANWELL
AC-DC Single output LED driver Mix mode (CV+CC), Output 9VDC / 5A, Dimming with PWM
LED DRIVERS > ELN
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | ELN-60-9P |
|---|---|
| Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP64. Input range90-264vac47-63Hz. Output in constant current5A. Range of output voltage with current mode constant3 to 9Vccaccording to demand load. Power:45W. Efficiency typical:82%. Regulationwith a PWM signal of 10V with a frequency of 100Hz to 3KHz. Input class II without grounding. Operating temperature range of caseTcfrom-20ºCup+60ºC. Dimensions (Length x Width x Height):One hundred eighty onex 61.5 x 35mm. 2 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. You can also work in voltage mode constant giving a fixed voltage of 9V if the load is powered at constant voltage and does not overcome the maximum output power. With plastic housing, designed for applications of LED-lighting and signalling mobile. Suitable for interior lighting and electronic displays. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP64 |
| Applications | Industrial, Telecommunications |
| Series | ELN-60P |
| State | Do not Use for New Designs |
| Warranty (Years) | 2,00 |
| Height (mm) | Thirty five |
| Width (mm) | 61.5 |
| Long/Background | One hundred eighty one |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Intensity of Minimum Output (mA) | 5.000,00 |
| Intensity of Output Maximum (mA) | 5.000,00 |
| Output current mA | Five thousand |
| Power (W) | 45,00 |
| Peak Power (W) | Forty five |
| Dimming | Signal PWM 10V |
| Output connector | Cable |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
