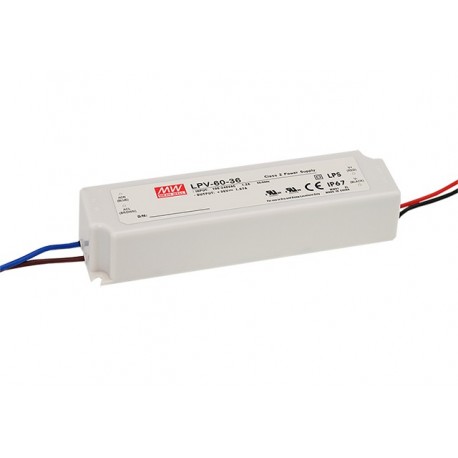

LPV-60-36 LPV6036 MEANWELL Input: 90-264 AC / 127-370 DC, Output: 1, V1: 36, A1: 1,67 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPV-60-36 LPV6036 MEANWELL Input: 90-264 AC / 127-370 DC, Output: 1, V1: 36, A1: 1,67

LPV-60-36

LPV6036

MEANWELL

Available

Ship on today

Input: 90-264 AC / 127-370 DC, Output: 1, V1: 36, A1: 1,67

More details


Power Supplies

LED DRIVERS

LPV

* Brand new produt in its original packing covered by the warranties and certifications provided by MEANWELL

QuantityPrice
1+$21.86
14+$19.54
27+$19.09
40+$18.86
53+$18.71
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



60W Single Output Switching Power Supply 60W Single Output Switching Power Supply
60W Single Output Switching Power Supply Features : Features :
Features : Constant voltagedesign Constant voltagedesign
Constant voltagedesign UniversalAC input / Full range UniversalAC input / Full range
UniversalAC input / Full range LP V -60series LP V -60series
LP V -60series SPECIFICATION SPECIFICATION
SPECIFICATION Withstand 300VAC surge input for 5 seconds Withstand 300VAC surge input for 5 seconds
Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Over load / Over voltage Protections: Short circuit / Over load / Over voltage
Protections: Short circuit / Over load / Over voltage Cooling by free air convection Cooling by free air convection
Cooling by free air convection Fully encapsulated with IP67 level (Note.8) Fully encapsulated with IP67 level (Note.8)
Fully encapsulated with IP67 level (Note.8) Fully isolated plastic case Fully isolated plastic case
Fully isolated plastic case Classpower unit, no FG Classpower unit, no FG
Classpower unit, no FG Class 2 power unit Class 2 power unit
Class 2 power unit Pass LPS Pass LPS
Pass LPS Suitable for LED lighting and moving sign applications (Note.7) Suitable for LED lighting and moving sign applications (Note.7)
Suitable for LED lighting and moving sign applications (Note.7) 100% full load burn-in test 100% full load burn-in test
100% full load burn-in test Low cost,high reliability Low cost,high reliability
Low cost,high reliability 2 years warranty 2 years warranty
2 years warrantyLPS (except for 5V) IP67 (for 48V only) (except for 5V,48V) LPS (except for 5V) IP67 (for 48V only) (except for 5V,48V)
LPS (except for 5V) IP67 (for 48V only) (except for 5V,48V) MODEL LPV-60-5LPV-60-12LPV-60-15LPV-60-24LPV-60-36LPV-60-48 MODEL LPV-60-5LPV-60-12LPV-60-15LPV-60-24LPV-60-36LPV-60-48
MODEL LPV-60-5LPV-60-12LPV-60-15LPV-60-24LPV-60-36LPV-60-48 DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER
DC VOLTAGE RATED CURRENT CURRENT RANGE RATED POWER 5V12V15V24V36V48V 5V12V15V24V36V48V
5V12V15V24V36V48V 8A5A4A2.5A 1.67A1.25A 8A5A4A2.5A 1.67A1.25A
8A5A4A2.5A 1.67A1.25A 0 ~ 8A0 ~ 5A0 ~ 4A0 ~ 2.5A0 ~ 1.67A0 ~ 1.25A 0 ~ 8A0 ~ 5A0 ~ 4A0 ~ 2.5A0 ~ 1.67A0 ~ 1.25A
0 ~ 8A0 ~ 5A0 ~ 4A0 ~ 2.5A0 ~ 1.67A0 ~ 1.25A 40W 60W 60W 60W 60W 60W 40W 60W 60W 60W 60W 60W
40W 60W 60W 60W 60W 60W RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p
RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p OUTPUT OUTPUT
OUTPUT VOLTAGE TOLERANCE Note.38.0% VOLTAGE TOLERANCE Note.38.0%
VOLTAGE TOLERANCE Note.38.0% 5.0% 5.0%
5.0% LINE REGULATION LOAD REGULATION LINE REGULATION LOAD REGULATION
LINE REGULATION LOAD REGULATION 1.0% 1.0%
1.0% 6.0% 6.0%
6.0%2.0% 2.0%
2.0% SETUP, RISE TIME Note.6500ms, 20ms / 230VAC500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC500ms, 30ms / 115VAC at full load(for 48V) SETUP, RISE TIME Note.6500ms, 20ms / 230VAC500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC500ms, 30ms / 115VAC at full load(for 48V)
SETUP, RISE TIME Note.6500ms, 20ms / 230VAC500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC500ms, 30ms / 115VAC at full load(for 48V) HOLD UP TIME (Typ.) HOLD UP TIME (Typ.)
HOLD UP TIME (Typ.) 50ms/230VAC16ms/115VAC at full load 50ms/230VAC16ms/115VAC at full load
50ms/230VAC16ms/115VAC at full load VOLTAGE RANGENote.490 ~ 264VAC127 ~ 370VDC VOLTAGE RANGENote.490 ~ 264VAC127 ~ 370VDC
VOLTAGE RANGENote.490 ~ 264VAC127 ~ 370VDCINPUT INPUT
INPUT FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT (Typ.) FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT (Typ.)
FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT (Typ.) 47 ~ 63Hz 47 ~ 63Hz
47 ~ 63Hz 76% 83% 76% 83%
76% 83% 1.2A/115VAC 1A/230VAC 1.2A/115VAC 1A/230VAC
1.2A/115VAC 1A/230VAC83% 86% 86% 86% 83% 86% 86% 86%
83% 86% 86% 86% PROTECTION PROTECTION
PROTECTION ENVIRONMENT ENVIRONMENT
ENVIRONMENTSAFETY & EMC SAFETY & EMC
SAFETY & EMCOTHERS OTHERS
OTHERS INRUSH CURRENT(Typ.) INRUSH CURRENT(Typ.)
INRUSH CURRENT(Typ.) MAX. No. of PSUs on 16A CIRCUIT BREAKER MAX. No. of PSUs on 16A CIRCUIT BREAKER
MAX. No. of PSUs on 16A CIRCUIT BREAKER LEAKAGE CURRENT OVER LOAD LEAKAGE CURRENT OVER LOAD
LEAKAGE CURRENT OVER LOAD OVER VOLTAGE WORKING TEMP. OVER VOLTAGE WORKING TEMP.
OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION
WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATIONSAFETY STANDARDS SAFETY STANDARDS
SAFETY STANDARDSWITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION
WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY EMC IMMUNITY
EMC IMMUNITY MTBF DIMENSION PACKING MTBF DIMENSION PACKING
MTBF DIMENSION PACKING COLD START 60A(twidth=525s measured at 50% Ipeak) at 230VAC COLD START 60A(twidth=525s measured at 50% Ipeak) at 230VAC
COLD START 60A(twidth=525s measured at 50% Ipeak) at 230VAC3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC0.25mA / 240VAC 0.25mA / 240VAC
0.25mA / 240VAC 110 ~ 150% rated output power 110 ~ 150% rated output power
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed Protection type : Hiccup mode, recovers automatically after fault condition is removed
Protection type : Hiccup mode, recovers automatically after fault condition is removed 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 41.4 ~ 48.6V 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover 5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 41.4 ~ 48.6V 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
5.75 ~ 6.75V 13.8 ~ 16.2V 17.25 ~ 20.25V 27.6 ~ 32.4V 41.4 ~ 48.6V 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover -30 ~ +70 (Refer to "Derating Curve") -30 ~ +70 (Refer to "Derating Curve")
-30 ~ +70 (Refer to "Derating Curve") 20 ~ 90% RH non-condensing 20 ~ 90% RH non-condensing
20 ~ 90% RH non-condensing -40 ~ +80, 10 ~ 95% RH -40 ~ +80, 10 ~ 95% RH
-40 ~ +80, 10 ~ 95% RH 0.03%/ (0 ~ 50) 0.03%/ (0 ~ 50)
0.03%/ (0 ~ 50) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48),
UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), IP67, IEC60950-1:2005+A2:2013 approved ; design refer to TUV EN60950-1 CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), IP67, IEC60950-1:2005+A2:2013 approved ; design refer to TUV EN60950-1
CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), IP67, IEC60950-1:2005+A2:2013 approved ; design refer to TUV EN60950-1 I/P-O/P:3KVAC I/P-O/P:3KVAC
I/P-O/P:3KVAC I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level,criteria A Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level,criteria A
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level,criteria A 732Khrs min.MIL-HDBK-217F (25) 732Khrs min.MIL-HDBK-217F (25)
732Khrs min.MIL-HDBK-217F (25) 162.5*42.5*32mm (L*W*H) 162.5*42.5*32mm (L*W*H)
162.5*42.5*32mm (L*W*H) 0.4Kg; 32pcs/13.8Kg/0.56CUFT 0.4Kg; 32pcs/13.8Kg/0.56CUFT
0.4Kg; 32pcs/13.8Kg/0.56CUFTNOTE NOTE
NOTE 1. All parameters NOT speciallymentioned are measured at 230VAC input, ratedload and 25 of ambient temperature. 1. All parameters NOT speciallymentioned are measured at 230VAC input, ratedload and 25 of ambient temperature.
1. All parameters NOT speciallymentioned are measured at 230VAC input, ratedload and 25 of ambient temperature. 2. Ripple & noiseare measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2. Ripple & noiseare measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Ripple & noiseare measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes setup tolerance, line regulation and load regulation. 3. Tolerance : includes setup tolerance, line regulation and load regulation.
3. Tolerance : includes setup tolerance, line regulation and load regulation. 4. Deratingmay be needed underlow input voltage.Please checkthe static characteristics for more details. 4. Deratingmay be needed underlow input voltage.Please checkthe static characteristics for more details.
4. Deratingmay be needed underlow input voltage.Please checkthe static characteristics for more details. 5. The powersupply is considered as a component that will be operated in combination with final equipment. SinceEMC performance will be affected by the complete installation,the final equipment manufacturers must re-qualify EMC Directive on the complete installationagain. 5. The powersupply is considered as a component that will be operated in combination with final equipment. SinceEMC performance will be affected by the complete installation,the final equipment manufacturers must re-qualify EMC Directive on the complete installationagain.
5. The powersupply is considered as a component that will be operated in combination with final equipment. SinceEMC performance will be affected by the complete installation,the final equipment manufacturers must re-qualify EMC Directive on the complete installationagain. 6. Lengthof setup time is measured at first cold start.Turning ON/OFF the powersupply may lead to increase of the setup time. 6. Lengthof setup time is measured at first cold start.Turning ON/OFF the powersupply may lead to increase of the setup time.
6. Lengthof setup time is measured at first cold start.Turning ON/OFF the powersupply may lead to increase of the setup time. 7. The unit might not be suitable for lighting applications in EU countries. Please checkwith your local authorities for the possible useof the unit. 7. The unit might not be suitable for lighting applications in EU countries. Please checkwith your local authorities for the possible useof the unit.
7. The unit might not be suitable for lighting applications in EU countries. Please checkwith your local authorities for the possible useof the unit. 8. Suitable for indoor useor outdoorusewithout direct sunlightexposure. Please avoid immerse in the waterover 30 minute. 8. Suitable for indoor useor outdoorusewithout direct sunlightexposure. Please avoid immerse in the waterover 30 minute.
8. Suitable for indoor useor outdoorusewithout direct sunlightexposure. Please avoid immerse in the waterover 30 minute.File Name:LPV-60-SPEC2015-05-28 File Name:LPV-60-SPEC2015-05-28
File Name:LPV-60-SPEC2015-05-28
