ELN-30-24D
MEANWELL
1
Available Ship on today

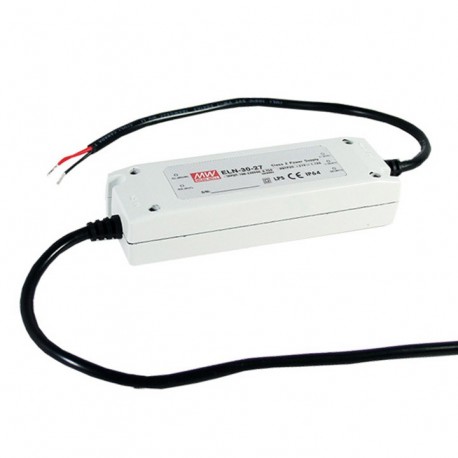

AC-DC Single output LED driver Mix mode (CV+CC), Output 24VDC / 1.25A, Dimming with 1-10VDC
LED DRIVERS > ELN
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | ELN-30-24D |
---|---|
Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP64. Input range90-264vac47-63Hz. Output in constant current1250mA. Range of output voltage with current mode constant3 to 24vdcaccording to demand load. Power:30W. Eficienciatípica:85%. Regulationfrom 10% to 100% of the output intensity with a dimmer 1-10V. With the regulation we can not turn off the output, we can only go down to 10%. Input class II without grounding. Operating temperature range of caseTcfrom-20ºCup+60ºC. Dimensions (Length x Width x Height):One hundred forty fivex 47 x 30mm. 2 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current. You can also work in voltage mode constant giving a fixed voltage of 24V if the load is powered at constant voltage and does not overcome the maximum output power. With plastic housing, designed for applications of LED-lighting and signalling mobile. Suitable for interior lighting and electronic displays. Can be adjusted by regulatory assets or liabilities1-10V.Compatible with any dimmer 1-10V-market both assets and liabilities. Does not work with dimmers Triac dimmer cutting phase. Some compatible models tested are: MEAN WELL DAP-04S01 (compatible with any push button normally open) SIMON: 75317 BJC: 5TC8 425 LEGRAND: 0784 04 ABB- "NIESSEN": N2260.9 SIEMENS: 5TC8424 EFAPEL: Model 21210 LED BOX: Model LD1160188 OSRAM: Model DIM MCU JUNG: Model 240-10 We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | IP64 |
Applications | Industrial, Telecommunications |
Series | ELN-30D |
State | Do not Use for New Designs |
Warranty (Years) | 2,00 |
Height (mm) | 30.00 |
Width (mm) | 47.00 |
Long/Background | 145.00 |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Intensity of Minimum Output (mA) | 1.250,00 |
Intensity of Output Maximum (mA) | 1.250,00 |
Output current mA | One thousand two hundred fifty |
Power (W) | 30,00 |
Peak Power (W) | Thirty |
Dimming | 1-10V |
Output connector | Cable |
Isolation (V) | 3.000,00 |
Approvals | CE, UL |
