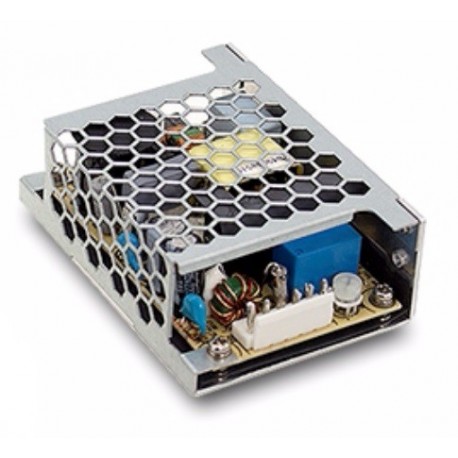

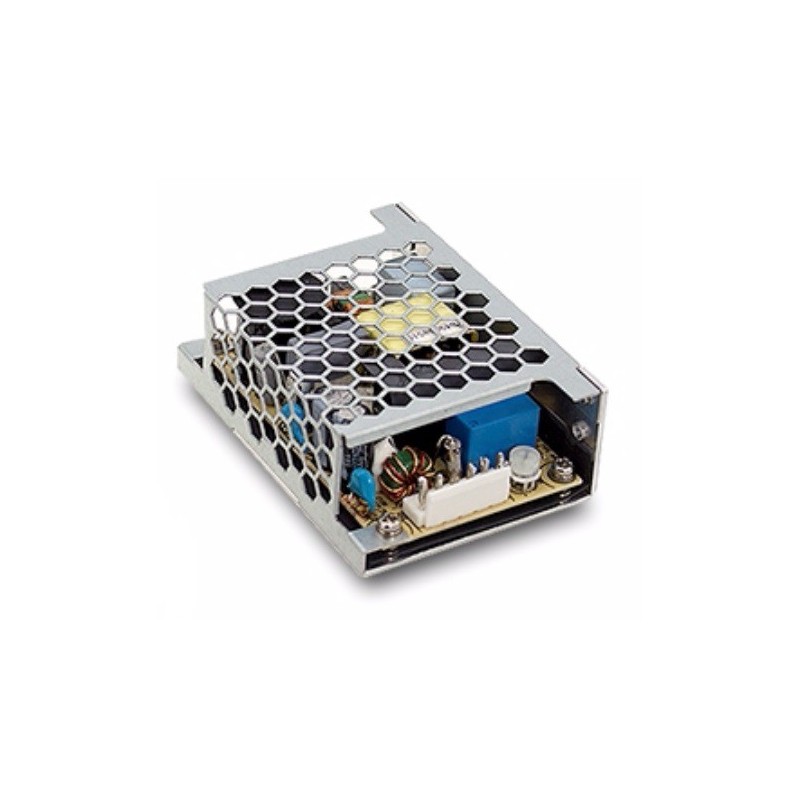

PSC-35A-C MEANWELL AC-DC Open framepower supply with UPS function, Output CH1-13.8VDC / 1.7A / CH2-13.8VDC /..

UPS input switches and output continuously.

Format box of the grid..

Range of universal input90-264vac. 47-63Hz.

Output voltagefor the loadwith power: 13,8 Vdc.

Output voltage in battery mode: voltage of the battery.

Output intensity1.7 To. Peak At 2.6 A.

Float voltageadjustable12-15vdc. (The setting of the float voltage also adjusts the output voltage of power supply).

Intensity of load0.9 To.

Power:35,8 W.

Type of batteries:Gel, AGM and wet.

Battery capacity:3-9Ah.

Efficiency typical:84%at full load with power.

Protection against deep discharge of the batteries.

No cut in output in the step feed mode to battery mode. 0ms transfer time.

Alarms correct supply AC OK and battery low via TTL signal to open collector.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Larco x Width x Height) [mm]:As 86.4 x 59.6 x 30.

2 years of warranty.

Manufacturer: MEAN WELL.

The series PSC are Ups input switches and output continuously. When there is mains power the computer gives a stable output while charging the battery. In case of failure of power supply maintains the output fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage.

These are protected against overloads, short-circuit in the output, sobrentesión output, low battery and reverse battery polarity (by fuse). Also feature alarms by signal: TTL open collector which alert us in case of network failure or when the output voltage is lower than a certain value, indicating that the capacity of the battery is low.
