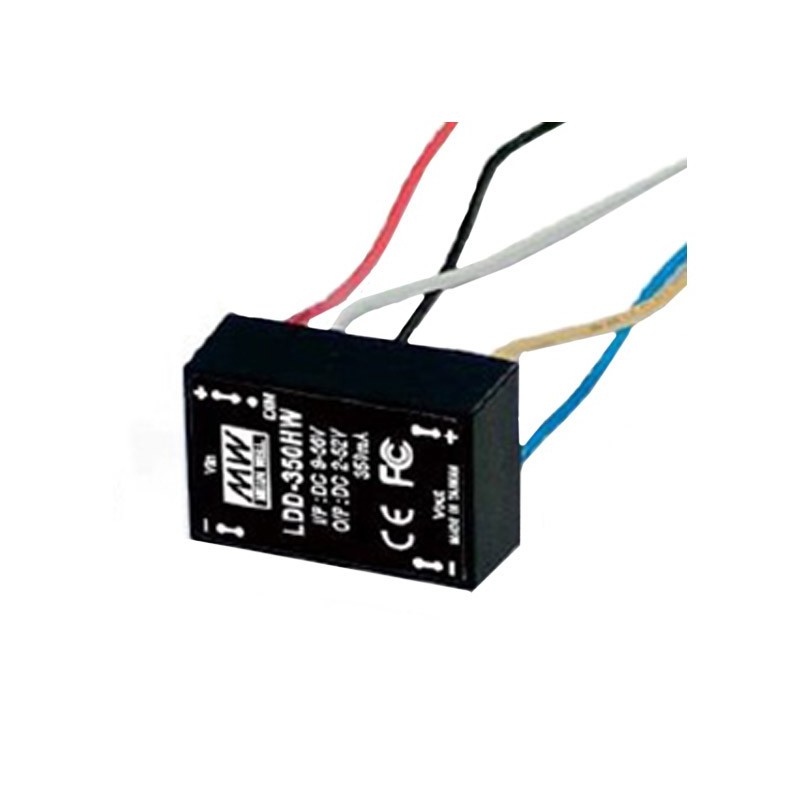

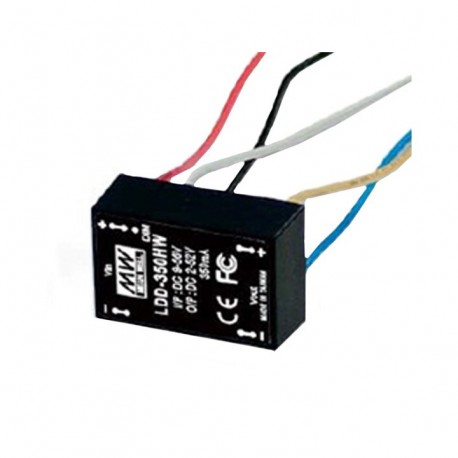

LDD-600HW MEANWELL DC-DC Step down LED driver Constant Current (CC), Input 9-56VDC, Output 0.6A / 2-52VDC, W..
LDD-600HW
MEANWELL
DC-DC Step down LED driver Constant Current (CC), Input 9-56VDC, Output 0.6A / 2-52VDC, Wired input and output, Dimming with PWM and remote ON/OFF
LED DRIVERS > LDD
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | LDD-600HW |
|---|---|
| Long Description | LED driver input and continuous output in a steady stream. Specially designed for applications of solar street lights powered from battery. Format in box with connection cables.IP67. Input rangeNine-56Vcc. Output in constant current600mA. Range of output voltage with current mode constantTwoto 52Vccaccording to demand load. The output voltage must be at least 3V lower than the input voltage. Version with connection cable. Power:To 31.2 W. Efficiency typical:97%. Regulation0% to 100% of the output intensity with a PWM signal. Consumption without load 1mA in power-off mode. Operating temperature range of caseTcfrom-40ºCup+85ºC. Dimensions (Length x Width x Height):31,8 x 20,3 x 12,2 mm 3 years of warranty. Manufacturer: MEAN WELL. The series LDD-H are current regulators designed to feed the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal. This series are voltage reducers (designed for buck or step-down) that reduce the input voltage to an output voltage lower while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V lower than the supply voltage. |
| Country of Origin | Taiwan |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | Encapsulated |
| Applications | Lighting, Solar |
| Series | LDD-300-1000HW |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 12.20 |
| Width (mm) | 20.30 |
| Long/Background | 31.80 |
| Range DC Input | 9, 9,2, 10, 10,5, 10,8, 12, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36, 38,4, 40, 43, 46,8, 50,4, 52, 56 |
| Input connector | Cable |
| Output current mA | Six hundred |
| Power (W) | 31,20 |
| Peak Power (W) | 31.2 |
| Dimming | Signal PWM 10V |
| Output connector | Cable |
| Approvals | EC |
