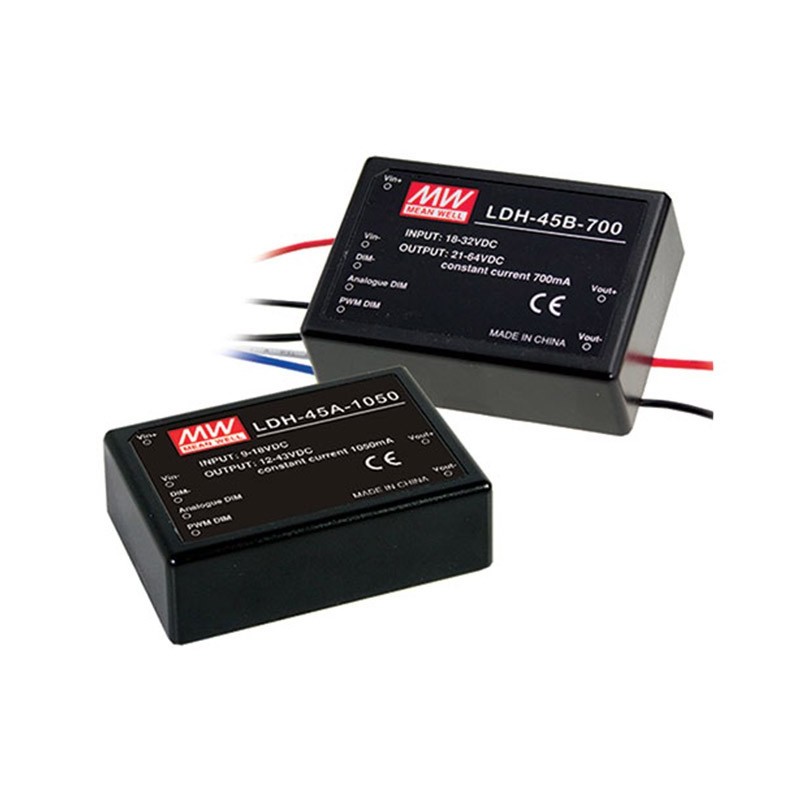

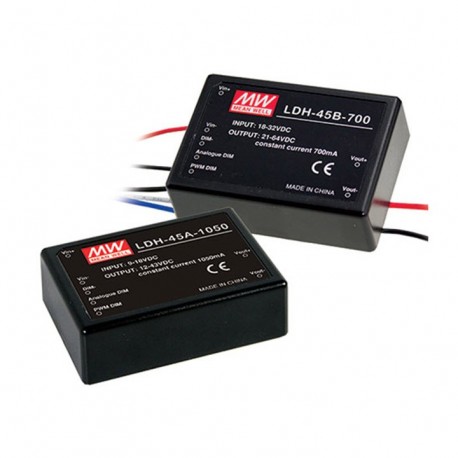

LDH-45A-350W MEANWELL DC-DC Step up LED driver Constant Current (CC), Input 9-18VDC, Output 0.35A / 12-86VDC..
LDH-45A-350W
MEANWELL
DC-DC Step up LED driver Constant Current (CC), Input 9-18VDC, Output 0.35A / 12-86VDC, Wired input-output, PWM + analog dimming and remote ON/OFF
LED DRIVERS > LDH
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | LDH-45A-350W |
|---|---|
| Long Description | LED driver input and continuous output in a steady stream. Specially designed for applications of solar street lights powered from battery. Format in box with connection cables. Input rangeNine-18vdc. Output in constant current350mA. Range of output voltage with current mode constantTwelveto 86Vccaccording to demand load. The output voltage must be at least 3V higher than the input voltage. Power:30,1 W. Efficiency typical:91%. Regulation0% to 100% of the output intensity with a PWM signal or analog 0 to 1.3 V. Input class II without grounding. Consumption at no load in 7th in off mode. Operating temperature range of caseTcfrom-40ºCup+70ºC. Dimensions (Length x Width x Height):75 x 53 x 22,7 mm 3 years of warranty. Manufacturer: MEAN WELL. The series LDH-45 are current regulators designed to feed the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal or an analog signal. This series are lifts voltage (design boost or step-up) that raise the input voltage to an output voltage higher while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V higher than the supply voltage. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | Encapsulated |
| Applications | Lighting, Solar |
| Series | LDH-45-W |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | 22.70 |
| Width (mm) | 53.00 |
| Long/Background | 75.00 |
| Range DC Input | 9, 9,2, 10, 10,5, 10,8, 12, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18 |
| Input connector | Cable |
| Output current mA | Three hundred fifty |
| Power (W) | 30,10 |
| Peak Power (W) | 30.1 |
| Dimming | Analog, Signal PWM 10V |
| Output connector | Cable |
| Approvals | EC |
