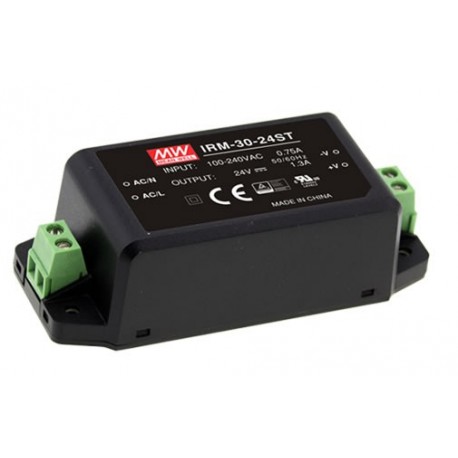

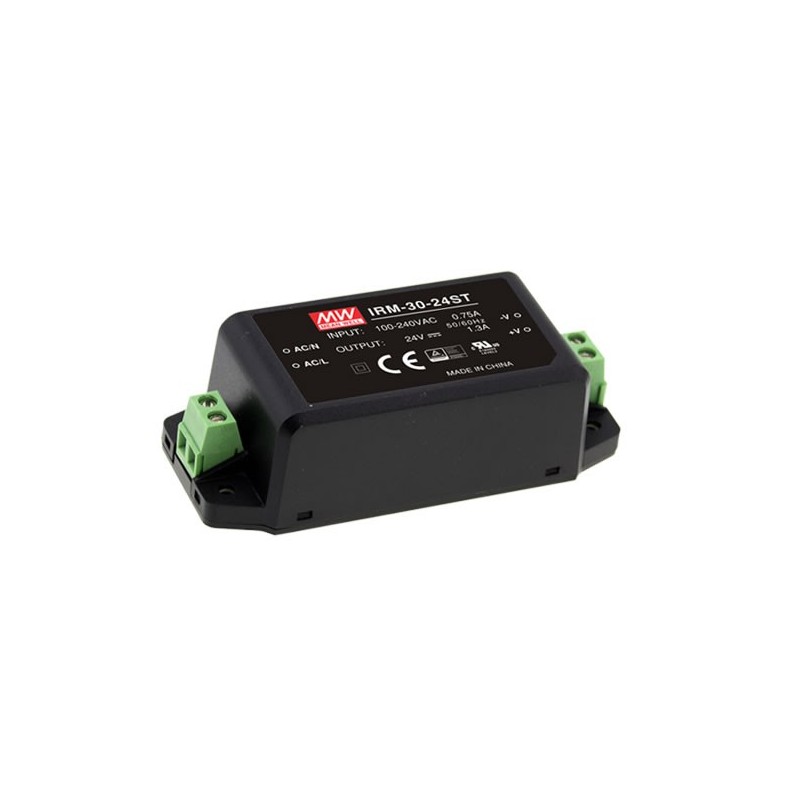

IRM-30-24ST MEANWELL AC-DC Single output Encapsulated power supply, Screw terminal, Input 85-264VAC, Output ..

Switching Power supply for Printed Circuit, connection by screw.

Range of Universal Input85-264vac47-440Hz.

Output voltage24vdc.

Output intensity1,3 A.Range of current output 0-1,3 according To the demands of the load.

Power:To 31.2 W.

Efficiency typical:88.5 per cent.

Consumption without load <0,1 W.

Input class II without grounding.

Operating temperature range of caseTcfrom-30up+70ºC.

Dimensions (Length x Width x Height) [mm]:91 x 39.5 x 28.5.

3 years of warranty.

Manufacturer: MEAN WELL.

Version ST series IRM are to connect using terminal screws.

This source is a class II non-grounded with double reinforced insulation.

Has a minimum consumption without load which allows you to meet the requisitivos of ecological design with a small consumption in stand-by.

It is CE certified and UL listed as power equipment limited "LPS".

It has protection against over loads, short circuits and over-voltage output.

Complies with EN55022 Class B without the need for additional components, although you should always verify the final design of the plate.
