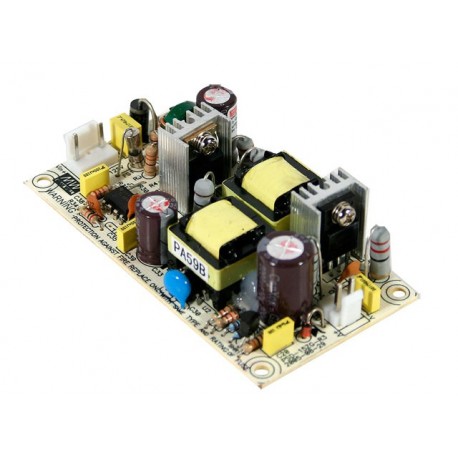

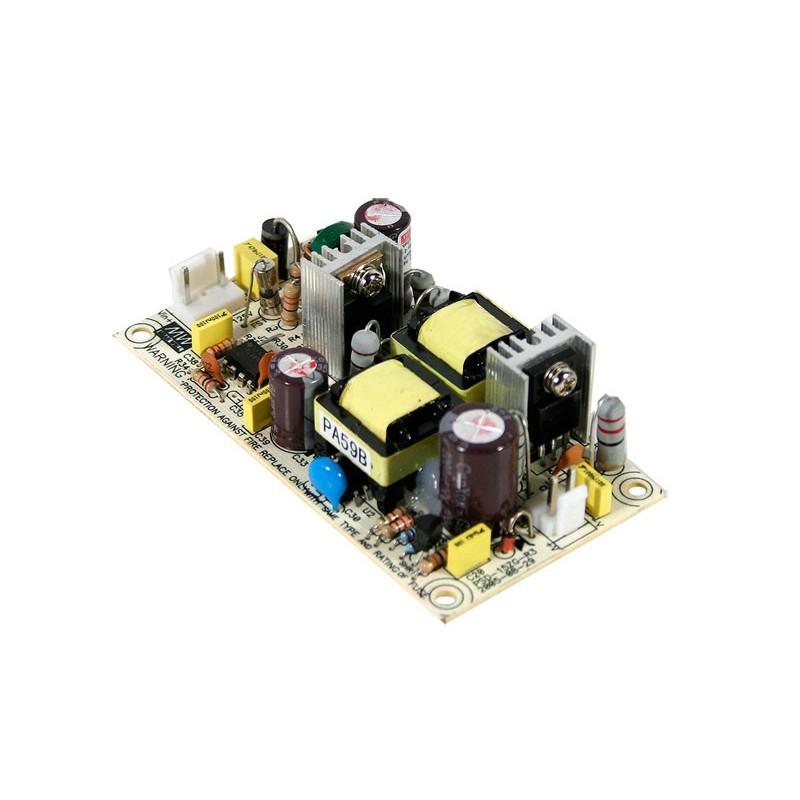

PSD-15C-5 MEANWELL DC-DC Single output Open frame converter, Input 36-72VDC, Output 5VDC / 3A
PSD-15C-5
MEANWELL
DC-DC Single output Open frame converter, Input 36-72VDC, Output 5VDC / 3A
DC/DC BOXES AND OPEN > PSD
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | PSD-15C-5 |
|---|---|
| Long Description | Dc/DC converter low cost, open format. Converter for Industrial applications or Telecommunications. Input range36-72Vcc. Output voltage5vdcAdjustable by potentiometer (5,75-6,75 Vdc). Output intensity3A. Power:15W. Efficiency of the78%. Operating temperature of the enclosure from-10up+60 ° C(see the curve derived in the technical data sheet). Dimensions (Length x Width x Height):94 x 49 x 25mm. 2 years of warranty. Manufacturer: MEAN WELL. This converter has a very compact size and is designed to give an isolated output, and stabilized. It allows us to give an output reliable when we have an entry from a battery or from any other computer that can easily swing in addition to achieving isolation between input and output. Its compact size makes it ideal for all types of applications. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Dc/DC converters |
| Format | Open Format |
| Applications | Railway, Industrial, Telecommunications |
| Series | PSD-15 |
| Warranty (Years) | 2,00 |
| Height (mm) | Twenty five |
| Width (mm) | Forty nine |
| Long/Background | Ninety four |
| Input range | 2:1 |
| Range DC Input | 36, 36,4, 38,4, 40, 43, 46,8, 50, 50,4, 52, 56, 60, 62,4, 64,4, 67,2, 72 |
| DC input Min | 36,00 |
| DC input Max | 72,00 |
| Input connector | Quick Connector |
| Output voltage | 5,00 |
| Power (W) | 15,00 |
| Peak Power (W) | Fifteen |
| Output connector | Quick Connector |
| Isolation (V) | 1.500,00 |
| Approvals | EC |
