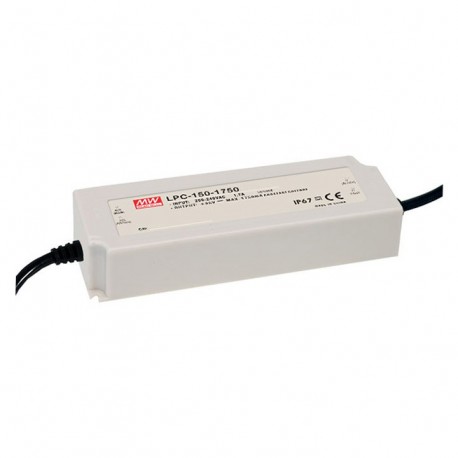

LPC-150-500 MEANWELL AC-DC Single output LED driver Constant Current (CC), Universal AC input, Output 0.5A /..
LPC-150-500
MEANWELL
AC-DC Single output LED driver Constant Current (CC), Universal AC input, Output 0.5A / 150-300VDC
LED DRIVERS > LPC
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | LPC-150-500 |
|---|---|
| Long Description | LED driver. Specially designed for powering LEDs directly in a steady stream. Format in box waterproof plasticIP67. Input range180-305Vca47-63Hz. Output in constant current500mA. Range of output voltage with current mode constant150 to 300Vccaccording to demand load. Power:150W. Efficiency typical:90%. Input class II without grounding. Operating temperature range of caseTcfrom-25ºCup+50ºC. Dimensions (Length x Width x Height):191 x 63 x 37.5 mm 2 years of warranty. Manufacturer: MEAN WELL. Series LP-C and LPC are LED Drivers designed to work directly with LEDs (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing, water-tight (IP67). Suitable for decorative lighting, architectural, LED indicators, theaters and electronic billboards. Have a low cost and a high reliability. Small and compact size. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP67 |
| Applications | Industrial, Telecommunications |
| Series | LPC-150 |
| Warranty (Years) | 2,00 |
| Height (mm) | 37.50 |
| Width (mm) | 63.00 |
| Long/Background | 191.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 180,00 |
| AC input Max | 305,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Intensity of Minimum Output (mA) | 500,00 |
| Intensity of Output Maximum (mA) | 500,00 |
| Output current mA | Five hundred |
| Power (W) | 150,00 |
| Peak Power (W) | One hundred fifty |
| Output connector | Cable |
| Isolation (V) | 3.000,00 |
| Approvals | EC |
