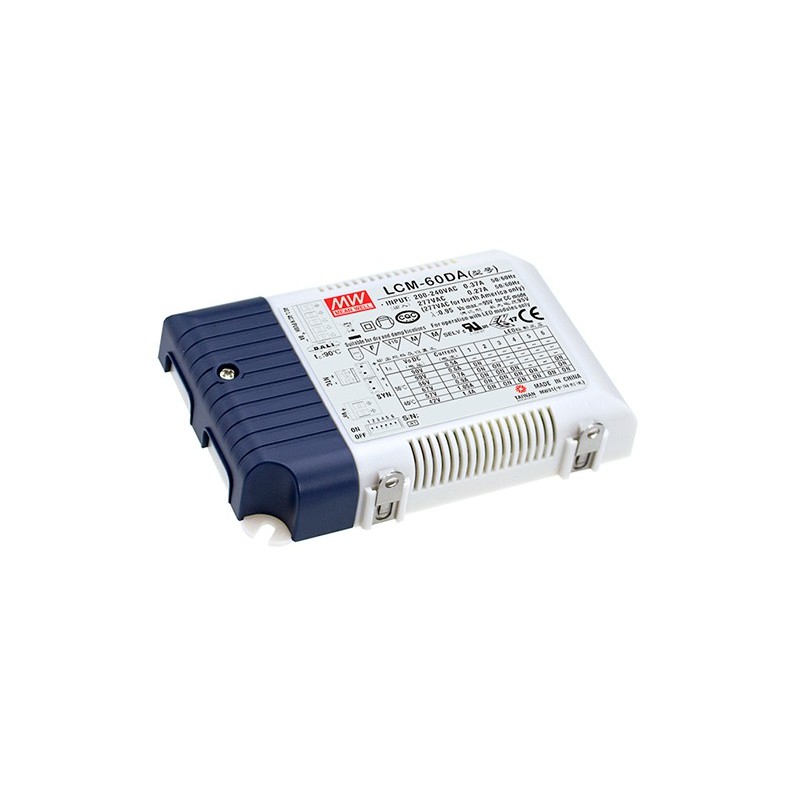

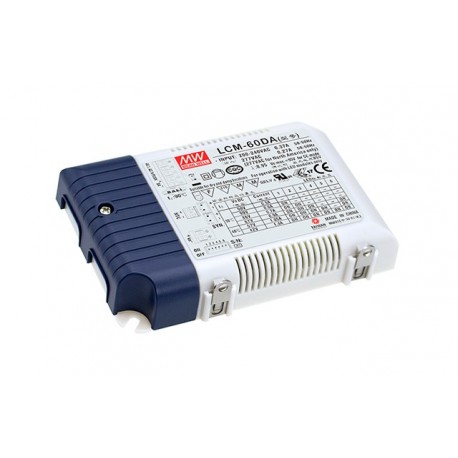

LCM-60DA
MEANWELL
1
Available Ship on today
AC-DC Multi-Stage LED driver Constant Current (CC), Modular output 0.5A/0.6A/0.7A/0.9A/1.05A/1.4A, Dimming with DALI & push
LED DRIVERS > LCM
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | LCM-60DA | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Long Description | LED driver dimmable. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP20. Input range180-295Vca47-63Hz. Current output selectable by micro-switch500, 600, 700, 900, 1050 or 1400mA.
Efficiency typical:92%. Regulation DALI0% to 100% of the intensity of output or push-button (PUSH-DALI). Certificate to DALI. We can regulate by push-button by connecting the input line cord to a push-button normally open and then to the Push (up-regulation in primary). You can connect any number of drivers LCM-GIVES the same push-button. Synchronization: we can sync up10 unitsvia the wires LCM-xxx-SYNC25 in such a way that by regulating a source other do the same regulation without the need to be connected to the bus DALI or push-button. We also make sure that if we use dimming by push button fonts are not desincronizarán. Input class II without grounding. OutputAuxiliary 12V/50mA Optionalfor the modelLCM-60DA-AUX. Factor corrector, power>0.975to 230vac at full load. Consumption at no load <0,5 W (<1.2 for LCM-40DA-AUX) Operating temperature range of caseTcfrom-30ºCup+60ºC. Dimensions (Length x Width x Height):123,5 x to 81.5 x 23mm. 3 years of warranty. Manufacturer: MEAN WELL. This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. This source has one outputoptional auxiliaryof12V/50mAfor the model LCM-60DA-AUX. This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.Be sure to adjust the output current desired using the selector current.For more information please see the datasheet in the section attachments. Input for protection by temperature of the LED modules. The driver has an input to connect a NTC sensor (resistance of a negative coefficient) which allows us to reduce the output current in case of excess of temperature in the LED modules. If we're not going to use this input protection, we can use it to connect a fixed resistor and adjust the output current to values lower intermediate up to 56% lower than the value selected with the DIP-Switch. For example if we want a current of 630mA we can adjust the output with the jumpers to 700mA and connect a resistor of 34kOhmnios. In this model, the maximum output current can also be set by using commands DALI. If we set the maximum value of output at 90% even though the command DALI shows 100% will give us only 90% (if it is set to 700mA will give us 630mA) and we can still use the input NTC to protect the LED modules. For more information please see the datasheet in the tab "Attachments" and you can use the Excel file to calculate the value of the resistance. With plastic housing, designed for applications of LED lighting and architectural. Suitable for indoor lighting, offices, LED panels.Low ripple current, no flicker (flicker-free). Compatible with any system DALI. | |||||||||||||||||||||
Country of Origin | China | |||||||||||||||||||||
Stock | Yes | |||||||||||||||||||||
Manufacturer | MEAN WELL | |||||||||||||||||||||
Product type | LED Driver | |||||||||||||||||||||
Format | Box | |||||||||||||||||||||
Subformato | IP20 | |||||||||||||||||||||
Applications | Lighting | |||||||||||||||||||||
Series | LCM-60DA | |||||||||||||||||||||
State | Recommended Model | |||||||||||||||||||||
Warranty (Years) | 3,00 | |||||||||||||||||||||
Height (mm) | 23.00 | |||||||||||||||||||||
Width (mm) | 81.50 | |||||||||||||||||||||
Long/Background | 123.50 | |||||||||||||||||||||
Type of Entry CA | Single-phase | |||||||||||||||||||||
AC input Min | 180,00 | |||||||||||||||||||||
AC input Max | 295,00 | |||||||||||||||||||||
Input frequency | 50 Hz, 60 Hz | |||||||||||||||||||||
Input connector | Quick Connector | |||||||||||||||||||||
Intensity of Minimum Output (mA) | 500,00 | |||||||||||||||||||||
Intensity of Output Maximum (mA) | 1.400,00 | |||||||||||||||||||||
Output current mA | 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300, 1350, 1400 | |||||||||||||||||||||
Power (W) | 60,30 | |||||||||||||||||||||
Peak Power (W) | 60.3 | |||||||||||||||||||||
Dimming | DALI, Push-button | |||||||||||||||||||||
Output connector | Quick Connector | |||||||||||||||||||||
Isolation (V) | 3.750,00 | |||||||||||||||||||||
Approvals | CCC, CE, ENEC, UL |
