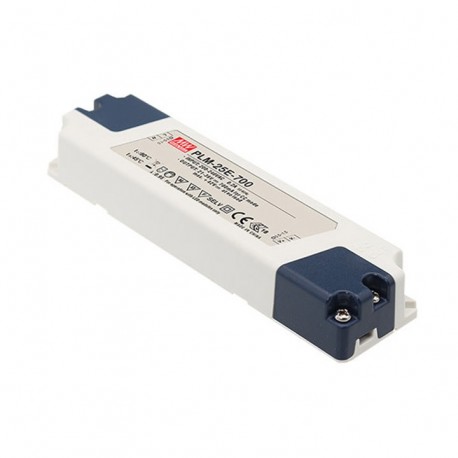

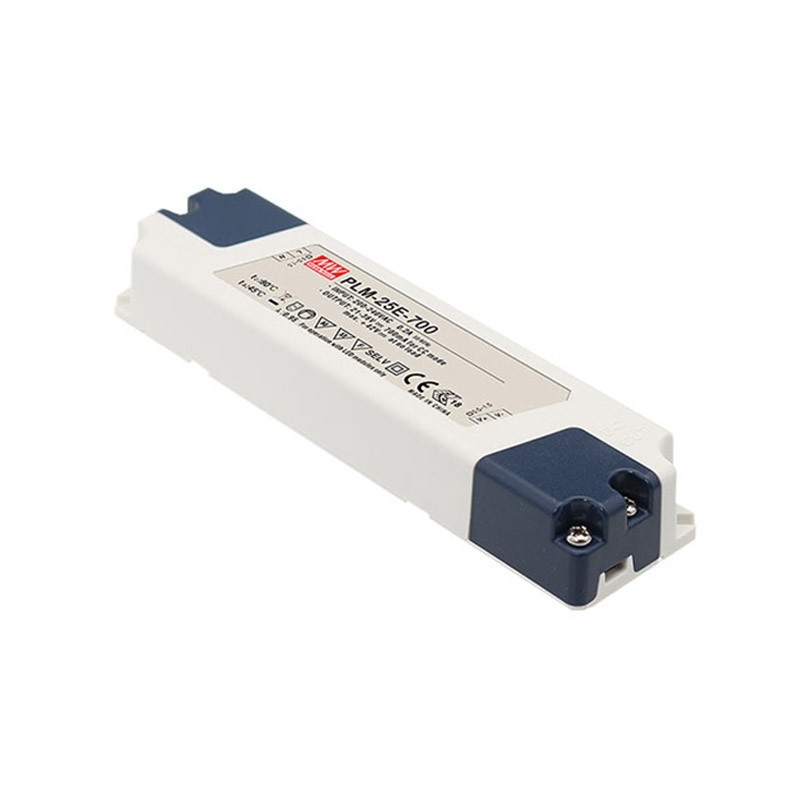

PLM-25E-700 MEANWELL AC-DC Single output LED driver Constant Current (CC), Input 110-295VAC, Output 0.7A / 2..

LED driver.

Specially designed for powering LEDs directly in a steady stream.

Format in plastic boxIP30.

Input range180-295Vca47-63Hz

Output in constant current700mA.

Range of output voltage with current mode constant21 to 36Vccaccording to demand load.

Power:25,2 W.

Efficiency typical:85%.

Input class II without grounding.

Factor corrector, power>0.95to 230vac at full load.

Consumption without load<0.5 W.

Operating temperature range of caseTcfrom-30ºCup+45ºC.

Dimensions (Length x Width x Height):145 x 38 x 22mm.

2 years of warranty.

Manufacturer: MEAN WELL.

The series PLM-E are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.

With plastic case, the series PLM-E has a small and compact size. Connection is by screw and protection, anti-pull, without the need of put terminals to make the connections. With ventilation for free circulation of air. With active PFC and high reliability at low cost. Indicated for interior applications, lighting, office, LED lighting and signalling mobile (roads, screens). Complies with all regulations of lighting.
