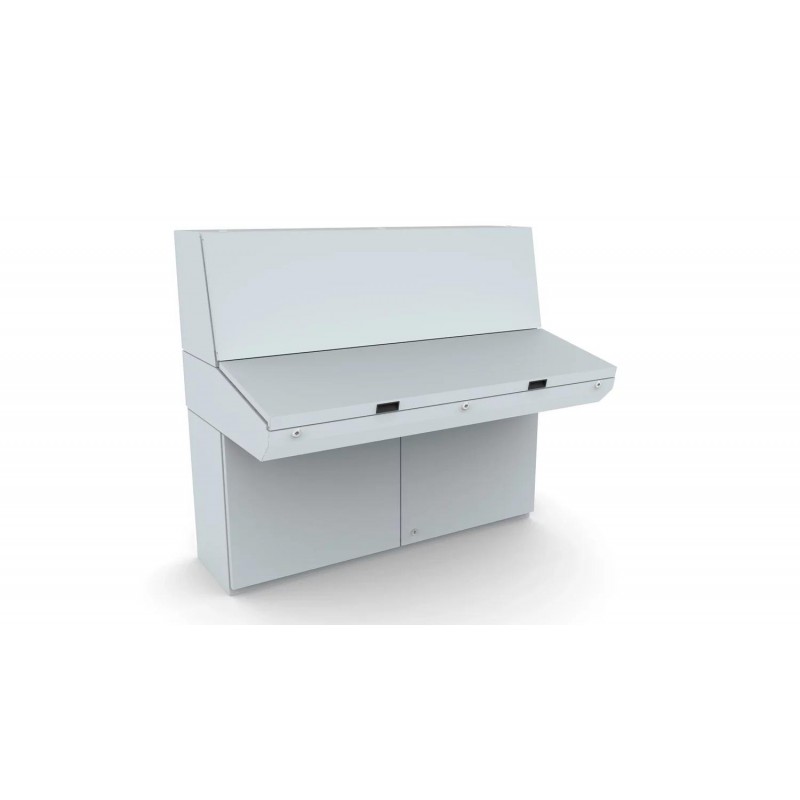

MPC061R5 ELDON Top console, 500x600x494 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MPC061R5 ELDON Top console, 500x600x494

MPC061R5

MPC061R5

ELDON

Available

Ship on today

Top console, 500x600x494

More details


Control Cabinets Switch Boxes Distribution Enclosures

Console Systems - ELDON

Mild steel, console system. MPC - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

QuantityPrice
1+$338.18
2+$331.08
3+$330.37
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Flexible console system, allows a versatile number of combinations to configure the system to your design. The top section and desk panels are held open by a self-engage/self-release mechanical panel stay and combines with the top removable rear panel and front door, to ensure convenient access. A range of 19" accessories adds further versatility. The MPC range is fully compatible with the stainless steel MPCS units, providing additional protection if required.

Characteristics
NoteTop section units, Mild steel
Height500 mm
Width600 mm
Depth494 mm
Weight27 Kg

Material:

Body and door: 1.5 mm mild steel. Rear panel: 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel.

Body:

Folded and seam welded. Console construction counts with a base that provides a distance between the fl oor and the lower part of the door/s acting as an integrated plinth.

Doors and panels:

Single folded surface mounted with hinges allowing left and right-hand opening to base door. Top section and desk panels held open by self engage/self release mechanical panel stays. Concealed hinges allowing 90° opening on the desk. Double door on 1200 and 1600 mm wide base units.

Mounting plate:

Standard mounting plate in base unit. Fixed by fixing brackets on C rail, top and bottom for depth adjustment. Optional in desk and top section units.

Lock:

Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.

Cable access:

Bottom opening in base unit for cable access. Bottom plates for cable glanding supplied as standard.

Earthing:

M8 threaded studs on bodies, doors and rear panels.

Finish:

RAL 7035 structured powder coating.

Protection:

Single door: IP 66 | TYPE 4, 12, 13 | IK 10. Double door: IP 55 | TYPE 12, 13 | IK 10.

Delivery:

The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base openings can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: MPC061R5English799 KbytesDatasheet 1: MPC061R5
Complete catalogue 1: MPC061R5English2 MbytesDatasheet 1: MPC061R5
