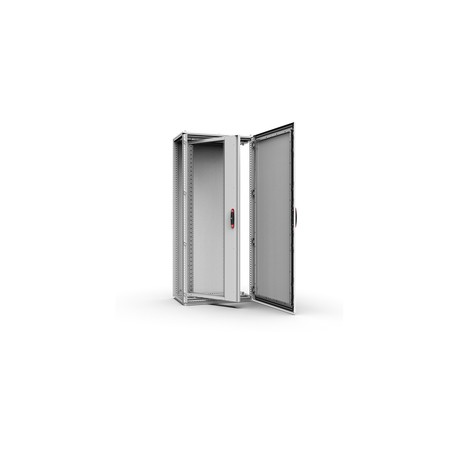

Swing frame side, 1600 ESFS318
Rotating frame side, 1600

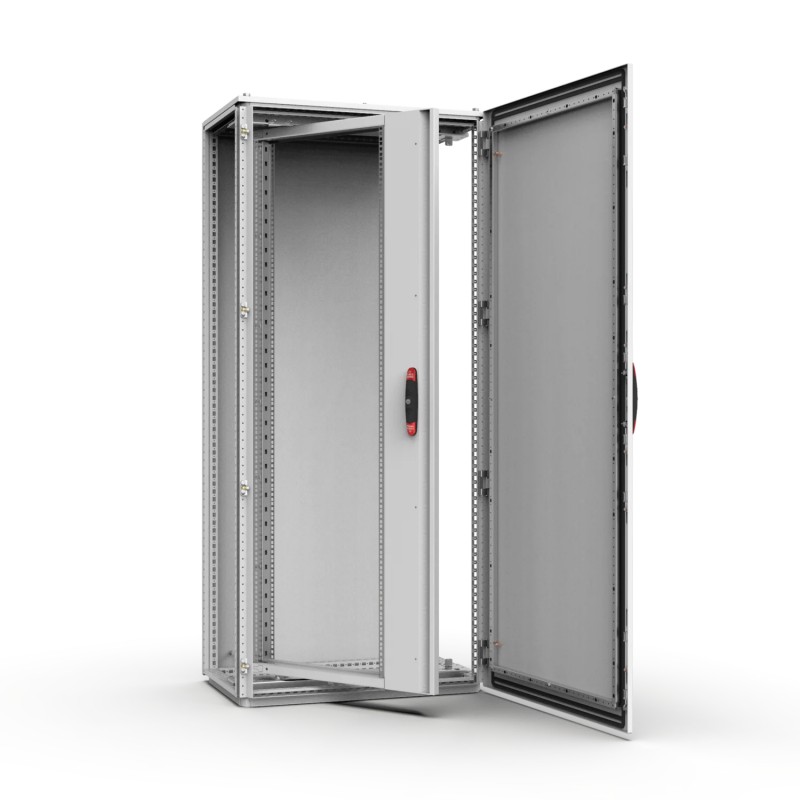

A swing frame for 19" equipment that provides additional mounting space for such equipment, as well as rear access to the fitted components and equipment once opened. It also provides extra space on the lock side of the 19" profiles to optimize the useful depth for equipment to be fixed to the swing frame.
Cabinet enclosures > Component for installation (switchgear cabinet)
Steel Floor Standing Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Description: | Full height swing frame for 19” components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19" vertical profiles for direct earthing of the mounted components. Standard equipped with 130° hinges. Full access to the enclosure's aperture can be acquired by use of 180° hinges ESFH180. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm. |
Maximum load: | 1800 N, supplied with a self-positioning device. |
Lock: | Double-bit 3 mm espagnolette (other lock options possible). |
Material: | 19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm. |
Finish: | RAL 7035 structured powder coating. |
Pack quantity: | 1 swing frame with hinges. |
Mounting requirements: | ESFS for 800 mm, 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure. |
Feature: | Side mounted swing frame, for floor standing enclosures. |
Advantage: | Additional surface for the installation of 19" equipment, within a hinged frame. |
Benefit: | The frame allows customers to install equipment and components into floor standing enclosures efficiently by maximising the installation space available. Access can be gained to the front and rear of the equipment installed in the frame, as well as to the components installed behind on the mounting plate, when the frame is opened. The useful depth for the equipment installed within the swing frame is optimised. |
Comment: | The transversal support bars, ESFB, must be mounted in combination with the side mounted swing frame. |
Title: | Size: | Type: |
---|---|---|
ESFS318 ESFS318 EN_ESFS278.pdf | 133 Kbytes | |
