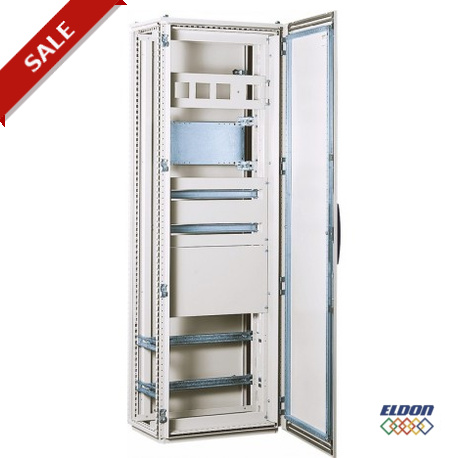

Support frame for easy installation of panels and mounting rails in a MCSL enclosure.
Steps of 50 mm

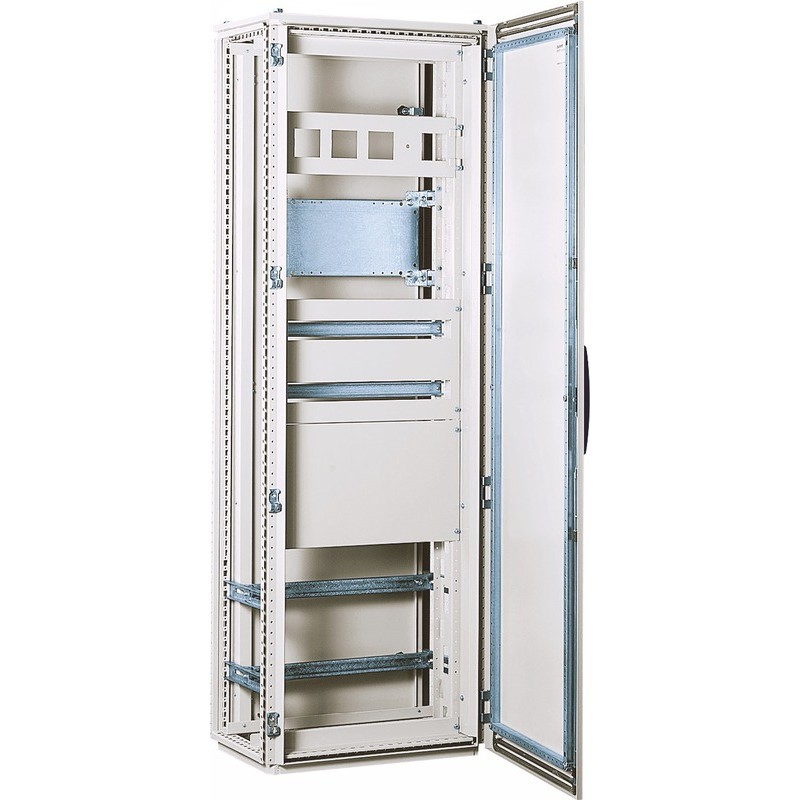

Support frame for mounting the modular panels and components by steps of 150mm (a space for equipment of 46mm high is provided). By using PP 0735 DIN rails 54mm can be obtained. The mounting plate can still be used and there is 80mm of space between standard or glazed doors and the fitted panels for protruding equipment. The frame can be assembled, fully equipped and pre-wired outside the enclosure. and then fitted into the enclosure. Cut-outs are provided on the sides of the vertical support for cable routing.
1.35mm steel plate in structure powder paint. RAL 7035.
2 vertical profiles, top & bottom plates.
PDF of Support frame, 2000x600 - ELDON - CMV2006R5
