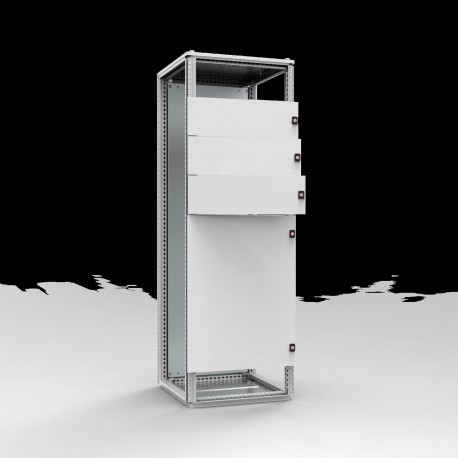

DP05004R5 nVent HOFFMAN Partial door, 500x400 DP05004R5
DP05004R5
ELDON
Partial door, 500x400 DP05004R5
Door partial, 500x400, steel sheet, lock double warded of 3 mm, IP44
Partial doors allow for many different, easily accessible configurations of separate compartments, within the enclosure.
Cabinet enclosures > Door/operating panel (switchgear cabinet)
Steel Floor Standing Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
More info
▲Technical data
Description: | To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CHDK. Equipped with double-bit 3 mm lock (1 lock up to 400 mm, over 400 mm height 2 locks). |
Material: | 1.75 mm steel plate. |
Finish: | RAL 7035 structured powder coating. |
Protection: | Complies with IP 44. |
Pack quantity: | 1 door with hinges, locks and mounting accessories. |
Mounting requirements: | Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels. |
Features
Feature: | The partial door forms part of the partial door system, which replaces the standard plain door fitted to floor standing enclosures. |
Advantage: | Partial doors can be configured to segregate the enclosure's openings, creating compartments that can be accessed by a door, to meet customer requirements. |
Benefit: | Individual compartments can be accessed easily. |
Comment: | Top and bottom partial panels DPC/DPCV are required to be mounted which reduces the useable height by 200 mm. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| DP05004R5 DP05004R5 EN_DP01504R5.pdf | 97 Kbytes |
 |
| Download general catalog |
|
