AC05040R5 ELDON Modular chassis, 500x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

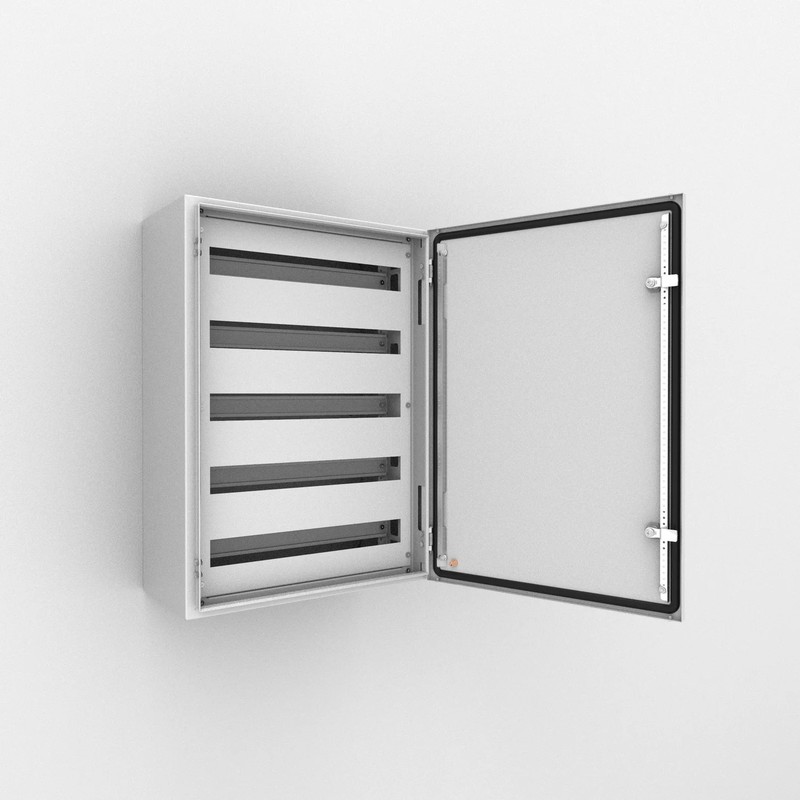

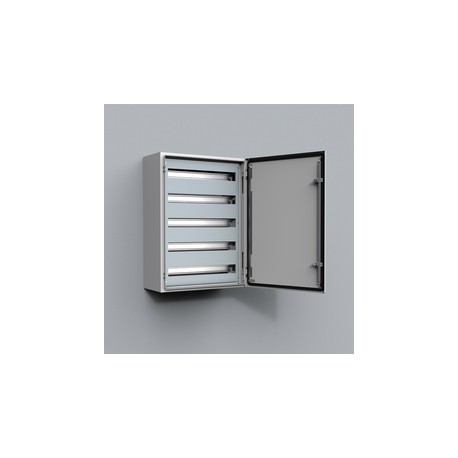

AC05040R5 ELDON Modular chassis, 500x400

AC05040R5

AC05040R5

ELDON

Available

Ship on today

Modular chassis, 500x400

More details


Control Cabinets Switch Boxes Distribution Enclosures

Wall Mounting Enclosures - ELDON

Wall Mounting Enclosures Accessories - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

QuantityPrice
1+$53.52
3+$50.92
6+$49.67
9+$49.05
12+$48.69
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



For DIN-rail components.

Characteristics
Height500 mm
Width400 mm
N° of modules48
N° of rows3

Description:

Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. Adjustable depth position with AMG accessory. In stainless steel enclosure machining is required.

Material:

DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.

Finish:

RAL 7035 structured powder coating.

Pack quantity:

Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: AC05040R5English182 KbytesDatasheet 1: AC05040R5
Complete catalogue 1: AC05040R5English4 MbytesDatasheet 1: AC05040R5
