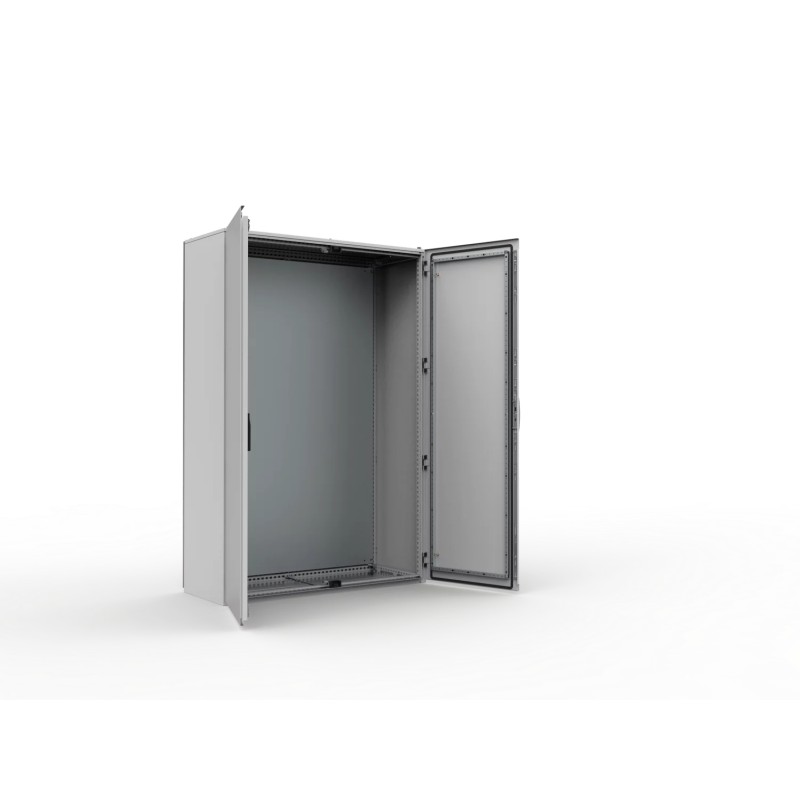

Floor standing, 2000x1200x400 - ELDON - MKD20124PER5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Floor standing, 2000x1200x400 - ELDON - MKD20124PER5





Ship on today

Floor standing, 2000x1200x400

More details

Control Cabinets Switch Boxes Distribution Enclosures

Floor Standing Enclosures - ELDON

Mild steel, compact version, double door. MKD - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

Price: $891.44
*This price is per unit and is the net value (not including taxes if applicable).
Up to 35% discount for registered clients.

Request a quote
How it Works

How does the quotation request work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with our price proposals
4 You can directly process the order for the quotation

There are several options for payment
- Credit card
- Wire Transfer
- PayPal

More info

As the double door version to MKS, the MKD offers the same innovative design and strength as its smaller brother. With a removable rear and roof panel to allow easy hole punching. The MKD maintains IP 55, and the rear panels can be changed for additional doors.

NoteWithout mounting plate
Height2000 mm
Width1200 mm
Depth400 mm
Bottom Plate Opening
Bottom Plate Opening
Weight145 Kg


Body: 1.35 mm painted steel. Rear and roof panels: 1.5 mm painted steel. Door: 2 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.


Four times folded and seam-welded frame. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.


Mounted with four hinges. Including door frame with 25 mm hole pattern. Standard doors cannot be reversed. Separate doors to be ordered for left hand door locking.

Rear panel:

Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels on 1600 mm wide enclosures.

Roof panel:



Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Can be exchanged for standard inserts or Euro-cylinder and swing handle.

Bottom plates:

Consists of three pieces.

Mounting plate:

Double folded and slides into position. Adjustable in depth by steps of 25 mm with the MPD02 accessory. Supplied outside of the enclosure packaging. Fitted inside for 1600 mm enclosures.


All panels are earthed through their fittings and are equipped with a separate earthing stud.


RAL 7035 structured powder coating.


Complies with IP 55 | TYPE 12, 13 | IK 10.


Body with fitted door, rear panel, roof panel, bottom plates, mounting plate (except in PE version) and door frame. Delivery also includes earthing bolts. The enclosure is delivered on a pallet identical to the enclosure width. All packing material is recyclable.

PDF of Floor standing, 2000x1200x400 - ELDON - MKD20124PER5

Datasheet 1: MKD20124PER5English664 KbytesDatasheet 1: MKD20124PER5
Complete catalogue 1: MKD20124PER5English9 MbytesDatasheet 1: MKD20124PER5
