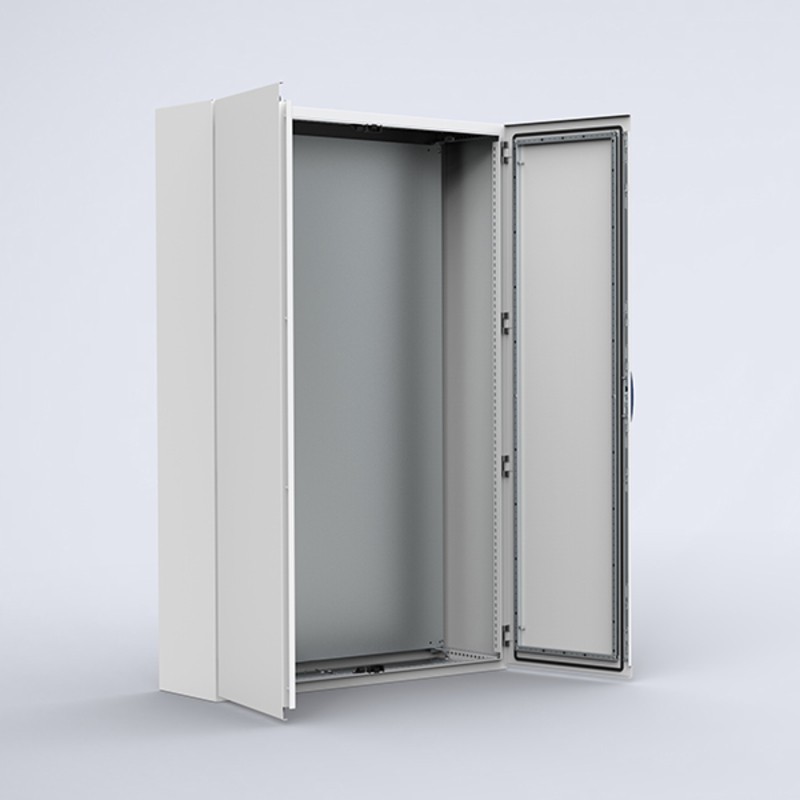

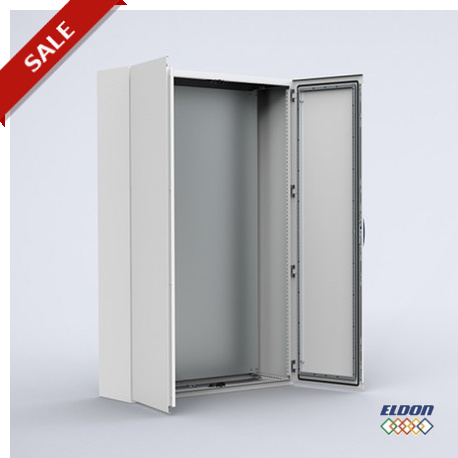

EKD16125 ELDON Floor standing, 1600x1200x500 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EKD16125 ELDON Floor standing, 1600x1200x500

EKD16125

EKD16125

ELDON

Available

Ship on today

Floor standing, 1600x1200x500

More details


Control Cabinets Switch Boxes Distribution Enclosures

Floor Standing Enclosures - ELDON

Mild steel, compact enclosure, double door. EKD - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



As the double door version to EKS, the EKD offers the same improved design and strength as its smaller brother. With one piece body and welded rear panel ensures superior rigidity, and the front hole pattern guarantees the highest flexibility while maintaining IP 55 protection degree.

Characteristics
NoteWith mounting plate
Height1600 mm
Width1200 mm
Depth500 mm
Mounting Plate
Height
1494 mm
Mounting Plate
Width
1094 mm
Max. enclosure
useful depth
455
Weight145,0 Kg
Max. enclosure useful depth (mm)455

Material:

Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.

Body:

One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.

Door:

Surface mounted with 4 hinges including door frame with 25 mm hole pattern and earthing studs. Standard doors can not be reversed.

Lock:

External espagnolette 4-point locking system. Standard fitted double-bit 3 mm insert. It can be exchanged for standard range of inserts, Euro-cylinder and swing handle.

Bottom plates:

Consists of two sets of two pieces or three (D>300) pieces.

Mounting plate:

Double folded and slides into position. Adjustable in depth by steps of 25 mm. Mounting plate is delivered attached on the outside of the enclosure packaging. Fitted inside for 1600 mm wide mounting plates.

Earthing:

Can be accomplished by using ECF (Earthing connections for frame).

Finish:

RAL 7035 structured powder coating.

Protection:

Complies with IP 55 | TYPE 12, 13 | IK 10.

Delivery:

One piece body with fitted doors, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packaging material is recyclable.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: EKD16125English544 KbytesDatasheet 1: EKD16125
Complete catalogue 1: EKD16125English9 MbytesDatasheet 1: EKD16125
