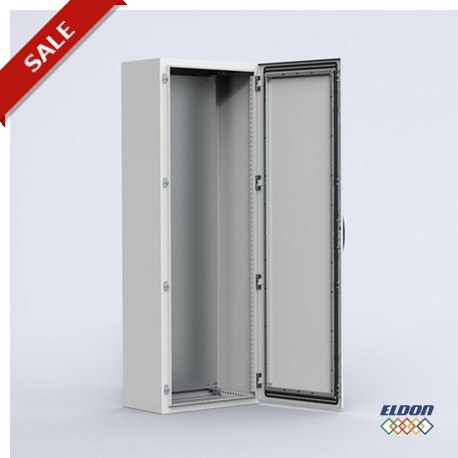

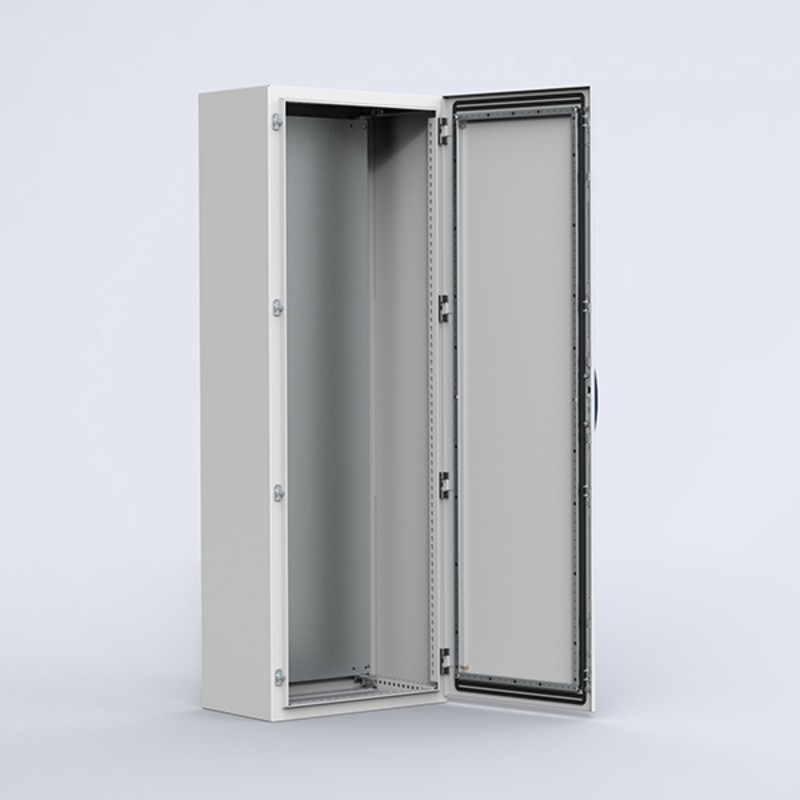

EKS12064 nVent HOFFMAN Floor standing, 1200x600x400

Material:

Body and welded rear panel: 1.5 mm mild steel. Door: 2 mm mild steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.

Body:

One piece enclosure body plus welded rear panel. Integrated depth profiles with hole pattern allowing mounting plate adjustment in depth.

Door:

Surface mounted with 4 hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern and earthing studs.

Lock:

Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Can be exchanged for standard inserts or Euro-cylinder and swing handle.

Bottom plates:

Consists of two pieces or three (D>300) pieces.

Mounting plate:

Double folded and slides into position. Adjustable in depth by steps of 25 mm. In the enclosure's delivery, mounting plate is attached on the outside of the enclosure packaging.

Earthing:

Can be accomplished by using ECF (Earthing connections for frame).

Finish:

RAL 7035 structured powder coating.

Protection:

Complies with IP 66 TYPE 4, 12, 13 IK 10.

Delivery:

One piece body with fitted door, bottom plates and mounting plate, including door earthing studs. The enclosure is delivered on a pallet identical to the enclosure width. Mounting plate is supplied on the outside of the enclosure packaging. All the packing material is recyclable.
