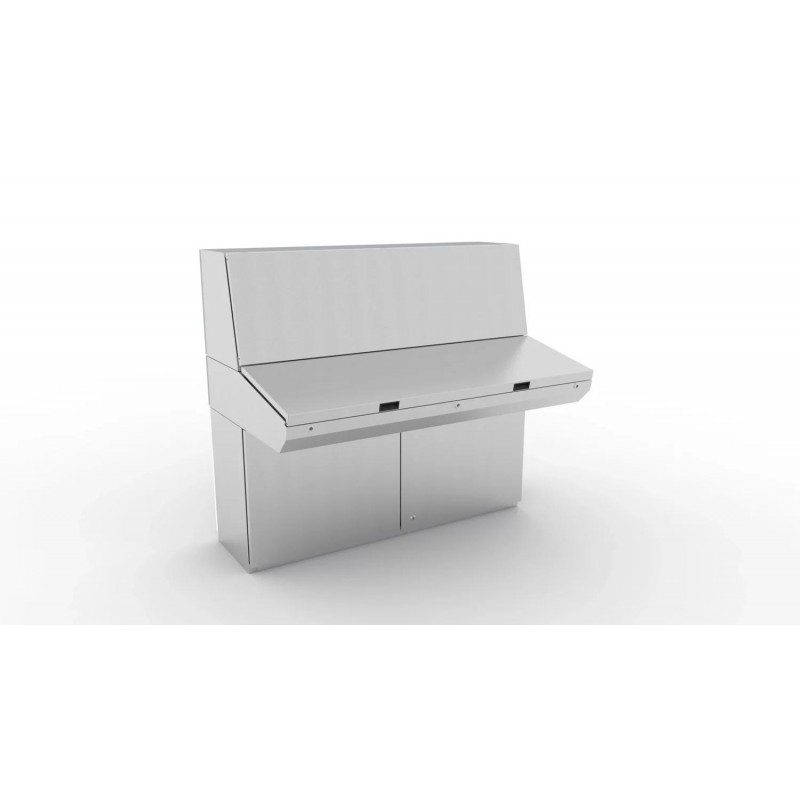

MPCS062 ELDON Desk console, 250x600x985 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MPCS062 ELDON Desk console, 250x600x985

MPCS062

MPCS062

ELDON

Available

Ship on today

Desk console, 250x600x985

More details


Control Cabinets Switch Boxes Distribution Enclosures

Console Systems - ELDON

Stainless steel, console system. MPCS - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Flexible console system, allows a versatile number of combinations to configure the system to your design. The top section and desk panels are held open by a self-engage/self-release mechanical panel stay and combines with the top removable rear panel and front door, to ensure convenient access. The MPCS range provides high corrosion resistance and is the ideal solution for harsh environments.

Characteristics
NoteDesk units, Stainless steel
Height250 mm
Width600 mm
Depth985 mm

Material:

MPCS: AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.

Body:

Folded and seam welded. Console construction counts with a base that provides a distance between the floor and the lower part of the door/s acting as an integrated plinth.

Doors and panels:

Single folded surface mounted with hinges allowing left and right-hand opening to base door. Top section and desk panels held open by self engage/self release mechanical panel stays. Concealed hinges allowing 90° opening on the desk. Double doors on 1200 mm and 1600 mm wide base units.

Mounting plate:

Standard in base unit. Fixed by fixing brackets on C rail, top and bottom for depth adjustment. Optional in desk and top section units.

Lock:

Double-bit 3 mm locks for top section and desk unit. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.

Cable access:

Bottom open in base unit for cable access. Bottom plates for cable glanding supplied as standard.

Earthing:

M8 threaded studs on bodies, doors and rear panels.

Finish:

240s pre grained stainless steel (average 0.5 micron).

Protection:

Single door: IP 66 | TYPE 4X, 12, 13 | IK 10. Double door: IP 55 | TYPE 12, 13 | IK 10.

Delivery:

The base unit is provided with a mounting plate as standard. Desk and top section units have mounting plates provided as accessories. All top and base apertures can be closed by choosing the appropriate accessory plate. Suitable nuts and washers for the various earthing studs are provided.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: MPCS062English913 KbytesDatasheet 1: MPCS062
Complete catalogue 1: MPCS062English2 MbytesDatasheet 1: MPCS062
