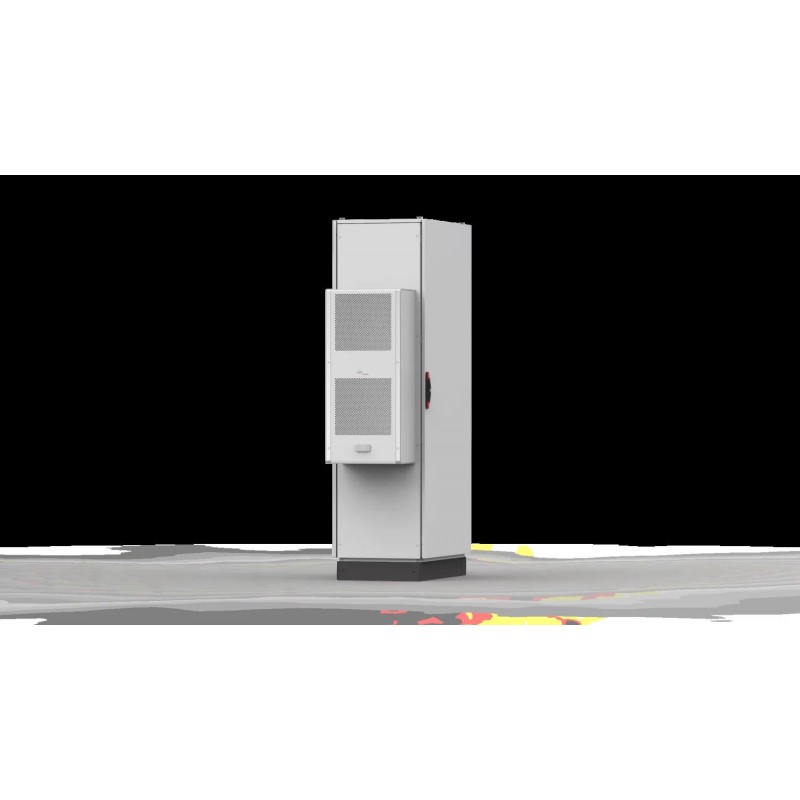

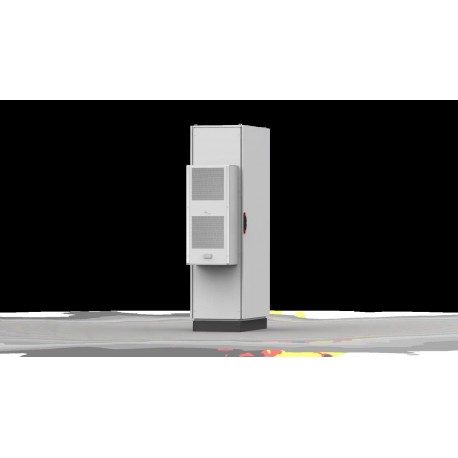

CUVN03602 nVent HOFFMAN Cooling unit 360W CUVN03602

Description:

High performance cooling unit for vertical installation. The unit is external mounted, in order to maximize the space inside the enclosure. The air conditioners cover a cooling range from 360 W to 5950 W. Common to all models is the self cleaning condenser coil, which eliminates the necessity for an air filter and therefore avoiding standard maintenance. The cooling capacity for specific conditions are indicated in the diagrams. All models above 1000 W are equipped with condensation dissipator. Digital display is installed on all models above 500W. Ozone friendly refrigerant R134a.

Type of connection:

Terminal included.

Material:

Galvanized steel powder coated. Note: The items ending in "SS" are manufactured from stainless steel AISI 304. Stainless steel AISI 316 is available on request.

Temperature limits inside:

+25 °C to +45 °C.

Temperature limits outside:

+20 °C to +55 °C.

Protection:

IP 54 TYPE 12.

Finish:

RAL 7035 for the galvanized steel versions.

Pack quantity:

One unit.

Feature:

Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree.

Advantage:

Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing. Smart energy management reduces the cooling units energy consumption by up to 23%.

Benefit:

The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified. The smart energy management and ease of installation will reduce both operational and installation costs.

Comment:

To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01. Once installed, the door switch will turn the cooling unit off, once the door is opened.
