CIPP09 nVent HOFFMAN 19" profiles one side, 475 CIPP09
CIPP09
ELDON
2

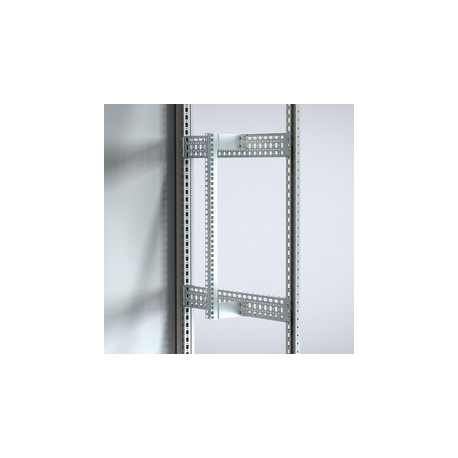

19" profiles one side, 475 CIPP09
Mounting rails, 475, galvanized, adjustable along, together with CIB/CID. Pack of 2 units.
These partial profiles, that can be adjustable in height and depth , allow for the installation of 19" equipment, while customers maintain access to the components installed on the mounting plate within the enclosure.
Cabinet enclosures > Profile (switchgear cabinet)
Steel Floor Standing Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
More info
▲Technical data
Description: | Partial height 19" vertical profiles to achieve 482.6 mm (19") mounting requirements on all sides. Adjustable in depth in steps of 25 mm using the CLPK click-in profiles. |
Material: | 2 mm zinc plated steel. |
Pack quantity: | 2 pieces with mounting accessories. |
Mounting requirements: | To be used with brackets CIC in 800 mm wide enclosures. |
Features
Feature: | Partial height zinc plated steel profiles with front and side hole patterns that are spaced 482,6 mm (19") apart for floor standing enclosures. |
Advantage: | The profiles provide a quick and easy solution in achieving 19" spacing for only a section of floor standing enclosures. |
Benefit: | As the partial profiles are mounted in the depth of the enclosure either by using click-in profiles, CLPK, or mounting profiles, CLPF, the 19" profiles can be adjusted in height. The partial height profiles allow customers to maintain access to components that are installed onto the enclosures mounting plate. |
Comment: | Either 19" brackets, CIC or width reducers, CIWR are required. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| CIPP09 CIPP09 EN_CIPP06.pdf | 149 Kbytes |
 |
| Download general catalog |
|
