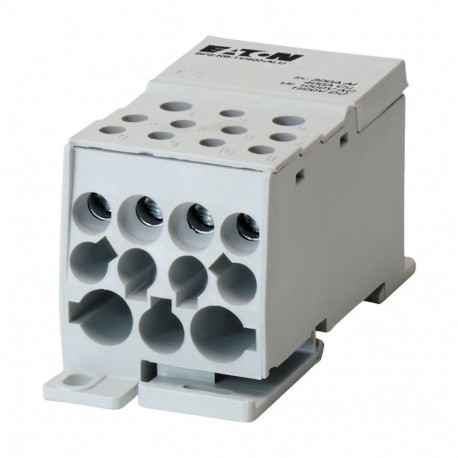

BPZ-KB-11/400-ALU 102706 1243567 EATON ELECTRIC Terminal block 1 pole, 400A, 11 output terminals, ALU
BPZ-KB-11/400-ALU
102706
1243567
EATON-MOELLER
Terminal block 1 pole, 400A, 11 output terminals, ALU
BPZ-KB-11/400-ALU
Energy distribution systems > Distributor assembly terminal blocks
Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Terminal block 1 pole, 400A, 11 output terminals, ALU
1-pole terminal block, BPZ-KB-...-ALU, aluminum construction, rated operational current 400 A, mounting on DIN-rail or mounting plate, UL-listed, makes wiring less time-consuming, ca. 80% less space is required.Module design, 1-pole to 4-pole systems can be assembled by using multiple blocks. Degree of protection IP10, max. operational voltage 1000 V AC , 1500 VDC. Equipment supplied: 1 1 pole terminal block
Delivery program
Mounting type
Floor standing distribution board
Surface mounted
Flush mounted
Surface mounted
Flush mounted
Material
Aluminium
Degree of Protection
IP10
Mounting position
universal
Number of poles
1 pole
Width
44 mm
Depth
49 mm
Height
95 mm
Number of clamping units per pole
12
Rated device current
400 A
Technical data
General
Standards
IEC 60 947 -7 -1
RoHS (in accordance with Directive 2002/95/EC of the European Parliament and Council)
conform
Heat deflection temperature
100 °C
UL 94 flame classification
V-0
Comparative tracking index
600 V
Degree of Protection
IP10
Assembly details
Clicks on DIN-rail or on base plate.
Save time on wiring.
Save 80% on space used.
Modular construction, 1-4 pole Systems can be built with several blocks.
Save time on wiring.
Save 80% on space used.
Modular construction, 1-4 pole Systems can be built with several blocks.
Important
This Power Distribution Block is suitable for ALU and CU conductors.
Please pay attention to the common handling guidelines when connecting the Aluminium conductors.
Clean and brush the contact surfaces and lubricate them with an appropriate grease.
As precaution the connections should get retightened regularly.
Please pay attention to the common handling guidelines when connecting the Aluminium conductors.
Clean and brush the contact surfaces and lubricate them with an appropriate grease.
As precaution the connections should get retightened regularly.
Electrical
IECMax. electrical load / Cu
300 A
IECMax. operating voltage / Cu
1000 V AC
IECMax. operating voltage / Cu
1500 V DC
Rated peak withstand current [Ipk]
51 kA
Rated short-time withstand current (t=1s) [Icw]
21 kA
Material characteristics
MaterialClamping body
Brass
MaterialHousing
PA66
MaterialHexagon socket set screw
Steel
Surface finishClamping body
Nickel plated
Surface finishHexagon socket set screw
Zn-Plated
ColourHousing
grey, RAL 7035
Terminal capacity
Incomersingle wire/multi wire
95 - 185 mm²
Incomersingle wire/multi wire
3/0 - 350 MCM AWG
Incomerfine wire (with sleeve)
95 - 150 mm²
Incomerfine wire (with sleeve)
3/0 - 5/0 AWG
IncomerTorque
25 N/m
IncomerTorque
221.2 lbf
Outgoingssingle wire/multi wire
2.5 - 35
2.5 - 16
2.5 - 10 mm²
2.5 - 16
2.5 - 10 mm²
Outgoingssingle wire/multi wire
14 - 2
14 - 6
14 - 8 AWG
14 - 6
14 - 8 AWG
Outgoingsfine wire (with sleeve)
2.5 - 25
2.5 - 16
2.5 - 10 mm²
2.5 - 16
2.5 - 10 mm²
Outgoingsfine wire (with sleeve)
14 - 4
14 - 6
14 - 8 AWG
14 - 6
14 - 8 AWG
OutgoingsTorque
3.5 - 7
2 - 3
2 - 3 N/m
2 - 3
2 - 3 N/m
OutgoingsTorque
31 - 62
17.7 - 26.5
17.7 - 26.5 lbf
17.7 - 26.5
17.7 - 26.5 lbf
Technical data ETIM 7.0
Energy distribution systems (EG000015) / Distributor assembly terminal blocks (EC001894)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Energy distribution system / Distributor assembly terminal blocks ([email protected] [ACO381011])
Height
95.4 mm
Width
44.5 mm
Depth
49 mm
Max. rated current
400 A
Number of poles
1
Conductor cross section flexible (fine-strand) with cable end sleeve
2.5 - 185 mm²
Conductor cross section solid (solid, stranded)
2.5 - 185 mm²
Number of clamp positions per pole
12
With PE-rail
No
With N-rail
No
Dimensions
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| BPZ-KB-11/400-ALU 1243567 102706 EN_102706.pdf | 111 Kbytes |
 |
