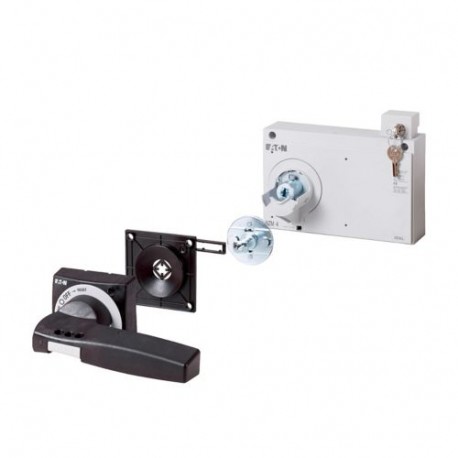

NZM4-XTVDKL 172534 EATON ELECTRIC NZM4-XTVDKL Door coupling rotary handle, black, +key lock, size 4
NZM4-XTVDKL
172534
EATON-MOELLER
NZM4-XTVDKL Door coupling rotary handle, black, +key lock, size 4
NZM4-XTVDKL
Door coupling rotary handle, black, +key lock, size 4
Low-voltage industrial components > Handle for power circuit breaker
Circuit Breakers NZM Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Door coupling rotary handle, black, +key lock, size 4
Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.
Delivery program
Product range
Accessories
Accessories
Door coupling rotary handle
Standard/Approval
UL/CSA, IEC
Construction size
NZM4
Description
Door coupling rotary handle for operating the switch through a closed control panel door
Function
Standard, black/grey
Protection class
IP66
UL/CSA Type 4X, Type 12
UL/CSA Type 4X, Type 12
Locking facility
lockable in position 0 using cylinder lock and key withdrawable
Also possible:
lockable on the 0 position on the handle using up to 3 padlocks
With door interlock
Also possible:
lockable on the 0 position on the handle using up to 3 padlocks
With door interlock
Door interlock
not defeatable in the locked OFF and ON positions with padlock on the handle
Can be modified in the unlocked ON position
Can be modified such that it can be defeated from the outside using a screwdriver
door to be opened in the OFF position when not locked
Can be modified in the unlocked ON position
Can be modified such that it can be defeated from the outside using a screwdriver
door to be opened in the OFF position when not locked
Project planning information
External warning plate/designation label can be clipped on.
Complete including rotary drive and coupling parts
Extension shaft additionally required.
obtainable in two lengths
Complete including rotary drive and coupling parts
Extension shaft additionally required.
obtainable in two lengths
For use with
NZM4(-4), N(S)4(-4)
Notes
circuit breaker can also be installed in a lying position 90° left/right, with the handle still in the same position.
cannot be combined with:
- remote operator
- side panel mounting
- mechan. interlock
- insulating surround
Design verification as per IEC/EN 61439
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices ([email protected] [AKF012014])
Lockable
Yes
Colour
Black
Suitable for emergency stop
No
With extension shaft
No
Suitable for power circuit breaker
Yes
Suitable for switch disconnector
Yes
Dimensions
Minimum door coupling rotary handle clearance from door pivot point
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| NZM4-XTVDKL NZM4-XTVDKL 172534 EN_172534.pdf | 282 Kbytes |
 |
