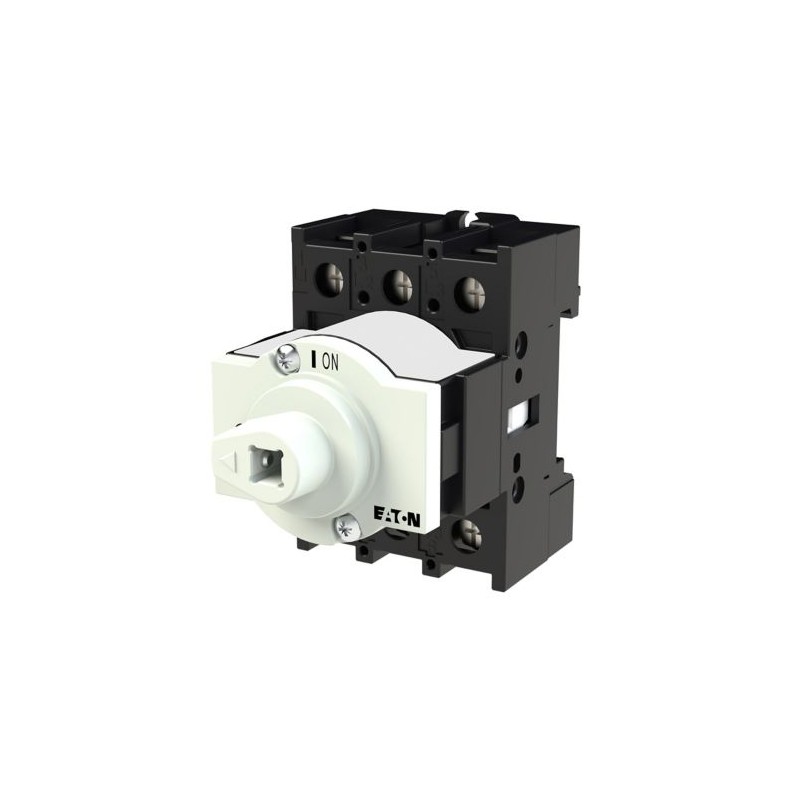

P1-25/XM 172834 EATON MOELLER Main switch, 3 pole, 25 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

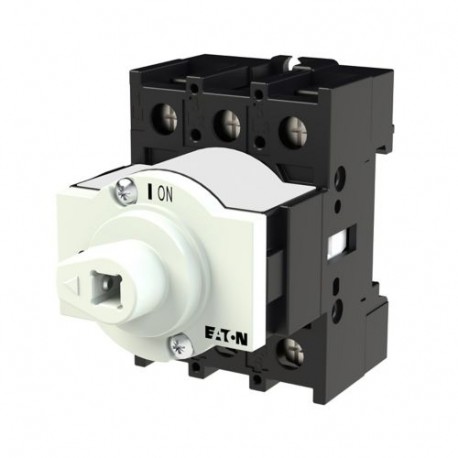

P1-25/XM 172834 EATON MOELLER Main switch, 3 pole, 25 A, rear mounting

P1-25/XM

172834

EATON - MOELLER

Available

Ship on today

Main switch, 3 pole, 25 A, rear mounting

More details


T Cam switches and P Switch-disconnectors - EATON - MOELLER

* Brand new produt in its original packing covered by the warranties and certifications provided by EATON - MOELLER

QuantityPrice
1+$30.26
7+$27.44
14+$26.77
20+$26.47
27+$26.26
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Delivery programme
Product range
  Main switch
maintenance switch
Repair switch
Part group reference
  P1
Notes
  Handle SVB(-SW)-P1/M (172840; 172842) only for use with extension shaft P1/P3-400 (172844).
Information about equipment supplied
  Auxiliary contact or neutral conductor fitted by user.
Number of poles
  3 pole
Auxiliary contacts


General
Standards
  IEC/EN 60947, VDE 0660, IEC/EN 60204,
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C-25 - +40
Overvoltage category/pollution degree
  III/3
Rated impulse withstand voltage
UimpV AC6000
Mechanical shock resistance
 g15
Mounting position
  As required
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Contacts
Mechanical variables

Number of poles
  3 pole
Auxiliary contacts


 N/O0

 N/C0
Electrical characteristics

Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA25
Note on rated uninterrupted current !u
  Rated uninterrupted current Iu is specified for max. cross-section.
Load rating with intermittent operation, class 12

AB 25 % DF
 x Ie2
AB 40 % DF
 x Ie1.6
AB 60 % DF
 x Ie1.3
Short-circuit rating

Fuse
 A gG/gL25
Rated short-time withstand current (1 s current)
IcwArms640
Note on rated short-time withstand current lcw
  Current for a time of 1 second
Rated conditional short-circuit current
IqkA50
Switching capacity
cos ϕ rated making capacity as per IEC 60947-3
 A240
Rated breaking capacity cos ϕ to IEC 60947-3
 A
230 V
 A190
400/415 V
 A150
500 V
 A170
690 V
 A150
Safe isolation to EN 61140

between the contacts
 V AC440
Current heat loss per contact at Ie
 W1.1
Lifespan, mechanical
Operationsx 106> 0.3
Maximum operating frequency
Operations/h 1200
AC

AC-3

Rating, motor load switch
PkW
220 V 230 V
PkW5.5
400 V 415 V
PkW7.5
500 V
PkW7.5
690 V
PkW7.5
Rated operational current motor load switch

230 V
IeA19.6
400V 415 V
IeA15.2
500 V
IeA12.1
690 V
IeA8.8
AC-21A

Rated operational current switch

440 V
IeA25
AC-23A

Motor rating AC-23A, 50 - 60 Hz
PkW
230 V
PkW5.5
400 V 415 V
PkW11
500 V
PkW11
690 V
PkW11
Rated operational current motor load switch

230 V
IeA25
400 V 415 V
IeA25
500 V
IeA17.4
690 V
IeA12.6
DC

DC-1, Load-break switches L/R = 1 ms

Rated operational current
IeA25
Voltage per contact pair in series
 V60
DC-23A, motor load switchL/R = 15 ms

24 V

Rated operational current
IeA25
Contacts
 Quantity1
48 V

Rated operational current
IeA25
Contacts
 Quantity2
60 V

Rated operational current
IeA25
Contacts
 Quantity2
120 V

Rated operational current
IeA12
Contacts
 Quantity3
Control circuit reliability at 24 V DC, 10 mA
Fault probabilityHF< 10 -5, < 1 fault in 100000 operations
Terminal capacities
Solid or stranded
 mm21 x (1,5 - 6)
2 x (1,5 - 6)
Flexible with ferrules to DIN 46228
 mm21 x (1 - 4)
2 x (1 - 4)
Terminal screw
  M4
Max. tightening torque
 Nm1.6
Technical safety parameters:
Notes
  B10d values as per EN ISO 13849-1, table C1
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Switch disconnector (EC000216)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector ([email protected] [AKF060010])
Version as main switch
  Yes
Version as maintenance-/service switch
  Yes
Version as safety switch
  No
Version as emergency stop installation
  No
Version as reversing switch
  No
Max. rated operation voltage Ue AC
 V690
Rated operating voltage
 V690 - 690
Rated permanent current Iu
 A25
Rated permanent current at AC-21, 400 V
 A25
Rated operation power at AC-3, 400 V
 kW7.5
Rated short-time withstand current lcw
 kA0.64
Rated operation power at AC-23, 400 V
 kW11
Switching power at 400 V
 kW13
Conditioned rated short-circuit current Iq
 kA80
Number of poles
  3
Number of auxiliary contacts as normally closed contact
  0
Number of auxiliary contacts as normally open contact
  0
Number of auxiliary contacts as change-over contact
  0
Motor drive optional
  No
Motor drive integrated
  No
Voltage release optional
  No
Device construction
  Built-in device fixed built-in technique
Suitable for ground mounting
  Yes
Suitable for front mounting 4-hole
  No
Suitable for front mounting center
  No
Suitable for distribution board installation
  No
Suitable for intermediate mounting
  Yes
Colour control element
  -
Type of control element
  -
Interlockable
  No
Type of electrical connection of main circuit
  Screw connection
Degree of protection (IP), front side
  IP65
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94; IEC/EN 60947-3; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  12528
CSA Class No.  3211-05
North America Certification  UL listed, CSA certified
Suitable for  Branch circuits, suitable as motor disconnect
Degree of Protection  IEC: IP65; UL/CSA Type 1
