P1-25/M4/K1-PR/HI11 172775 EATON MOELLER Main switch, 3 pole + 1 N/O + 1 N/C, 25 A, Emergency-Stop function,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

P1-25/M4/K1-PR/HI11 172775 EATON MOELLER Main switch, 3 pole + 1 N/O + 1 N/C, 25 A, Emergency-Stop function,..

P1-25/M4/K1-PR/HI11

172775

EATON - MOELLER

Available

Ship on today

Product on demand only, returns will not be accepted.

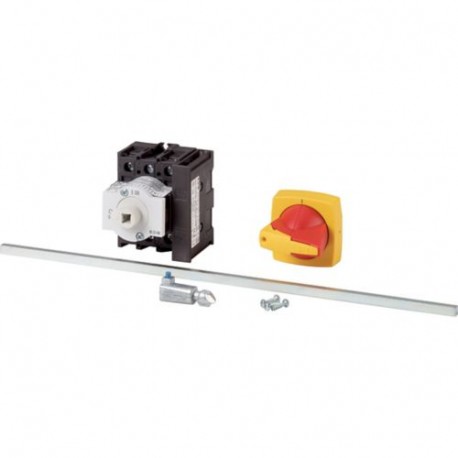

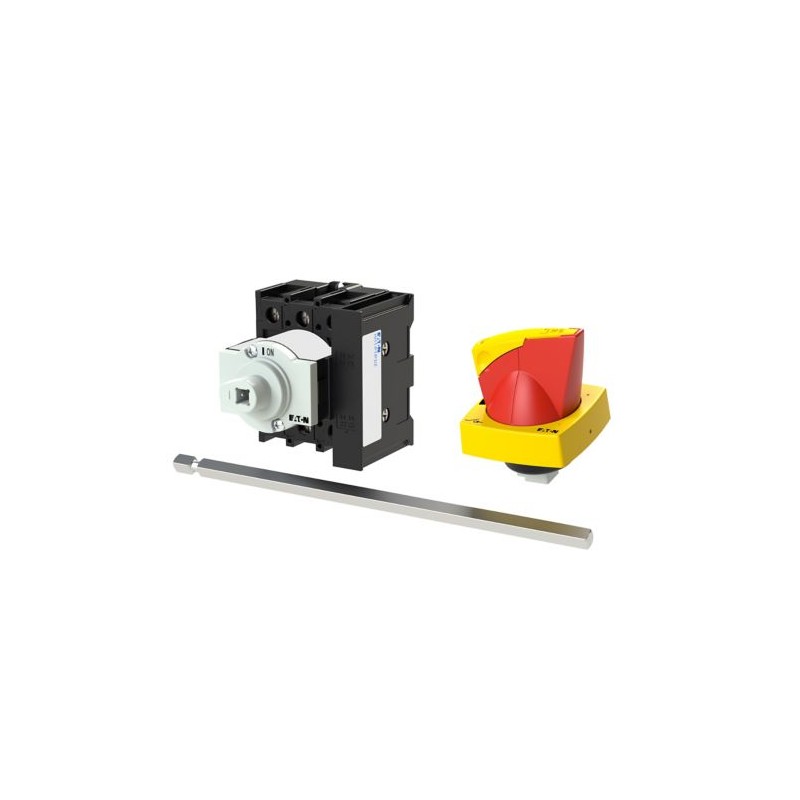

Main switch, 3 pole + 1 N/O + 1 N/C, 25 A, Emergency-Stop function, Lockable in the 0 (Off) position, rear mounting, with 400 mm metal shaft

More details


T Cam switches and P Switch-disconnectors - EATON - MOELLER

* Brand new produt in its original packing covered by the warranties and certifications provided by EATON - MOELLER

QuantityPrice
1+$92.24
3+$88.14
5+$86.65
7+$85.78
9+$85.39
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Delivery programme
Product range
  Main switch
maintenance switch
Repair switch
Part group reference
  P1
Emergency STOP
  Emergency switching off function

  With red rotary handle and yellow locking ring
Notes
  With metal shaft for a control panel depth of 400 mm
Information about equipment supplied
  Auxiliary contact or neutral conductor fitted by user.
Number of poles
  3 pole
Auxiliary contacts


General
Standards
  IEC/EN 60947, VDE 0660, IEC/EN 60204,
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Open
 °C-25 - +50
Enclosed
 °C-25 - +40
Overvoltage category/pollution degree
  III/3
Rated impulse withstand voltage
UimpV AC6000
Mechanical shock resistance
 g15
Mounting position
  As required
Protection against direct contact when actuated from front (EN 50274)
  Finger and back-of-hand proof
Contacts
Mechanical variables

Number of poles
  3 pole
Auxiliary contacts


 N/O1

 N/C1
Electrical characteristics

Rated operational voltage
UeV AC690
Rated uninterrupted current
IuA25
Note on rated uninterrupted current !u
  Rated uninterrupted current Iu is specified for max. cross-section.
Load rating with intermittent operation, class 12

AB 25 % DF
 x Ie2
AB 40 % DF
 x Ie1.6
AB 60 % DF
 x Ie1.3
Short-circuit rating

Fuse
 A gG/gL25
Rated short-time withstand current (1 s current)
IcwArms640
Note on rated short-time withstand current lcw
  Current for a time of 1 second
Rated conditional short-circuit current
IqkA50
Switching capacity
cos ϕ rated making capacity as per IEC 60947-3
 A240
Rated breaking capacity cos ϕ to IEC 60947-3
 A
230 V
 A190
400/415 V
 A150
500 V
 A170
690 V
 A150
Safe isolation to EN 61140

between the contacts
 V AC440
Current heat loss per contact at Ie
 W1.1
Current heat loss per auxiliary circuit at Ie (AC-15/230 V)
 CO0.2
Lifespan, mechanical
Operationsx 106> 0.3
Maximum operating frequency
Operations/h 1200
AC

AC-3

Rating, motor load switch
PkW
220 V 230 V
PkW5.5
400 V 415 V
PkW7.5
500 V
PkW7.5
690 V
PkW7.5
Rated operational current motor load switch

230 V
IeA19.6
400V 415 V
IeA15.2
500 V
IeA12.1
690 V
IeA8.8
AC-21A

Rated operational current switch

440 V
IeA25
AC-23A

Motor rating AC-23A, 50 - 60 Hz
PkW
230 V
PkW5.5
400 V 415 V
PkW11
500 V
PkW11
690 V
PkW11
Rated operational current motor load switch

230 V
IeA25
400 V 415 V
IeA25
500 V
IeA17.4
690 V
IeA12.6
DC

DC-1, Load-break switches L/R = 1 ms

Rated operational current
IeA25
Voltage per contact pair in series
 V60
DC-23A, motor load switchL/R = 15 ms

24 V

Rated operational current
IeA25
Contacts
 Quantity1
48 V

Rated operational current
IeA25
Contacts
 Quantity2
60 V

Rated operational current
IeA25
Contacts
 Quantity2
120 V

Rated operational current
IeA12
Contacts
 Quantity3
Control circuit reliability at 24 V DC, 10 mA
Fault probabilityHF< 10 -5, < 1 fault in 100000 operations
Terminal capacities
Solid or stranded
 mm21 x (1,5 - 6)
2 x (1,5 - 6)
Flexible with ferrules to DIN 46228
 mm21 x (1 - 4)
2 x (1 - 4)
Terminal screw
  M4
Max. tightening torque
 Nm1.6
Technical safety parameters:
Notes
  B10d values as per EN ISO 13849-1, table C1
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C50
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Switch disconnector (EC000216)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector ([email protected] [AKF060010])
Version as main switch
  Yes
Version as maintenance-/service switch
  Yes
Version as safety switch
  No
Version as emergency stop installation
  Yes
Version as reversing switch
  No
Max. rated operation voltage Ue AC
 V690
Rated operating voltage
 V690 - 690
Rated permanent current Iu
 A25
Rated permanent current at AC-21, 400 V
 A25
Rated operation power at AC-3, 400 V
 kW7.5
Rated short-time withstand current lcw
 kA0.64
Rated operation power at AC-23, 400 V
 kW11
Switching power at 400 V
 kW13
Conditioned rated short-circuit current Iq
 kA80
Number of poles
  3
Number of auxiliary contacts as normally closed contact
  1
Number of auxiliary contacts as normally open contact
  1
Number of auxiliary contacts as change-over contact
  0
Motor drive optional
  No
Motor drive integrated
  No
Voltage release optional
  No
Device construction
  Built-in device fixed built-in technique
Suitable for ground mounting
  Yes
Suitable for front mounting 4-hole
  No
Suitable for front mounting center
  No
Suitable for distribution board installation
  No
Suitable for intermediate mounting
  Yes
Colour control element
  Red
Type of control element
  Door coupling rotary drive
Interlockable
  Yes
Type of electrical connection of main circuit
  Screw connection
Degree of protection (IP), front side
  IP65
Dimensions
IL008007ZU Switch-disconnector P1: Metal shaft

>>
