BPZ-FPS/17 106431 2459344 EATON ELECTRIC Front plate support, H 1650mm
BPZ-FPS/17
106431
2459344
EATON-MOELLER
Front plate support, H=1650mm
BPZ-FPS/17
Cabinet enclosures > Component for installation (switchgear cabinet)
Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info

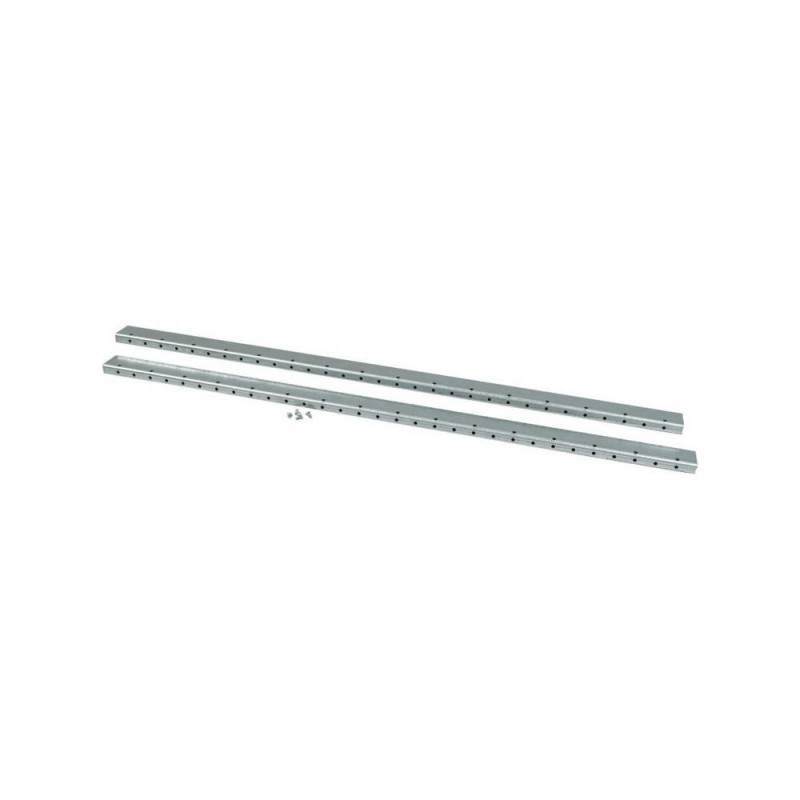

▲Front plate support, H=1650mm
Service distribution system—Profi Plus (floor standing distribution board, surface-mounted and flush-mounted distribution boards). For fixing the front plate, for assembly for BP-F...-F floor standing distribution boards with a flexible configuration, for mounting the front plate without BPZ-MSW or for assembling a partitioned distribution board with BPZ-MSW from behind (without BPZ-MSW), front plate height 1650 mm, equipment supplied: 1 pair of front plate supports (for left and right) made of 2 mm-thick, galvanized sheet steel, incl. screws
General specifications
Product name
Eaton xEnergy Basic installation component
Part no.
BPZ-FPS/17
EAN
4015081062010
Product Length/Depth
15 millimetre
Product height
1650 millimetre
Product width
40 millimetre
Product weight
2.1 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Installation component
Delivery program
Type
Additional equipment
Model
Mounting rail
Color
Stainless steel
Technical Data - Mechanical
Surface finishing
Galvanized
Mounting method
Floor standing distribution board
Mounting position
Vertical
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
1650 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Additional information
Functions
Additional equipment
RAL-number
0
Technical data ETIM 9.0
Cabinet enclosures (EG000011) / Components for installation (enclosure/cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) (ecl@ss13-27-18-28-11 [ACN627016])
Model
Mounting rail
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
1650 mm
Suitable for enclosure building depth
0 mm
Width
40 mm
Height
1650 mm
Depth
15 mm
Max. load capacity
0 kg
Material
Metal
Colour
Stainless steel
RAL-number
0
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| BPZ-FPS/17 2459344 106431 EN_106431.pdf | 105 Kbytes |
 |
