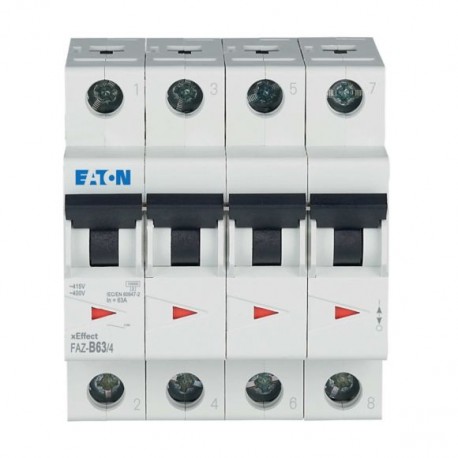

FAZ-B63/4 279041 EATON MOELLER FAZ-B63/4 Over current switch, 63A, 4p, B-Char, AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FAZ-B63/4 279041 EATON MOELLER FAZ-B63/4 Over current switch, 63A, 4p, B-Char, AC

FAZ-B63/4

279041

EATON - MOELLER

Available

Ship on today

Product on demand only, returns will not be accepted.

FAZ-B63/4 Over current switch, 63A, 4p, B-Char, AC

More details


Circuit Breakers Electrical Power

Industrial Protective Devices - EATON - MOELLER

* Brand new produt in its original packing covered by the warranties and certifications provided by EATON - MOELLER

QuantityPrice
1+$170.38
2+$166.44
3+$164.50
4+$164.38
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Delivery programme
Basic function
  Miniature circuit breakers
Pole
  4 pole
Tripping characteristic
  B
Application
  Switchgear for industrial and commercial applications
Rated current
InA63
Rated switching capacity acc. to IEC/EN 60947-2
 kA15
Product range
  FAZ
Technical data
Electrical
Standards
  IEC/EN 60947-2
IEC/EN 60898
Rated operational voltage
UeV

UeV AC230/400

 V DC48 (per pole)
Rated switching capacity acc. to IEC/EN 60947-2
 kA15
Operational switching capacity
 kA7.5
Characteristic
  B, C, D
Max. back-up fuse
 A gL/gG125
Selectivity Class
  3
Lifespan
Operations > 10000
Direction of incoming supply
  as required
Mechanical
Standard front dimension
 mm45
Enclosure height
 mm80
Terminal protection
  Finger and back-of-hand proof to BGV A2
Mounting width per pole
 mm17.5
Mounting
  IEC/EN 60715 top-hat rail
Degree of Protection
  IP20, IP40 (when fitted)
Terminals top and bottom
  Twin-purpose terminals
Terminal capacities
 mm2

 mm21 x 25

 mm22 x 10
Thickness of busbar material
 mm0.8 … 2
Mounting position
  As required
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA63
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW20.8
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C75

  linear, per +1 °C, results in a 0.5% reduction of current carrying capacity
Technical data ETIM 6.0(Show features)(Hide features)
Circuit breakers and fuses (EG000020) / Miniature circuit breaker (MCB) (EC000042)
Electric engineering, automation, process control engineering / Electrical installation, device / Miniature circuit breaker system (MCB) / Miniature circuit breaker (MCB) ([email protected] [AAB905011])
Release characteristic
  B
Number of poles (total)
  4
Number of protected poles
  4
Nominal rated current
 A63
Nominal rated voltage
 V400
Rated short-circuit breaking capacity Icn EN 60898 at 230 V
 kA10
Rated short-circuit breaking capacity Icn EN 60898 at 400 V
 kA10
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V
 kA15
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V
 kA15
Voltage type
  AC
Current limiting class
  3
Frequency
 Hz50 - 60
Concurrently switching N-neutral
  Yes
Suitable for flush-mounted installation
  No
Over voltage category
  3
Pollution degree
  2
Width in number of modular spacings
  4
Built-in depth
 mm70.5
Additional equipment possible
  Yes
Degree of protection (IP)
  IP20
Characteristics
AWA1220-1755 Circiut-breaker

>>
