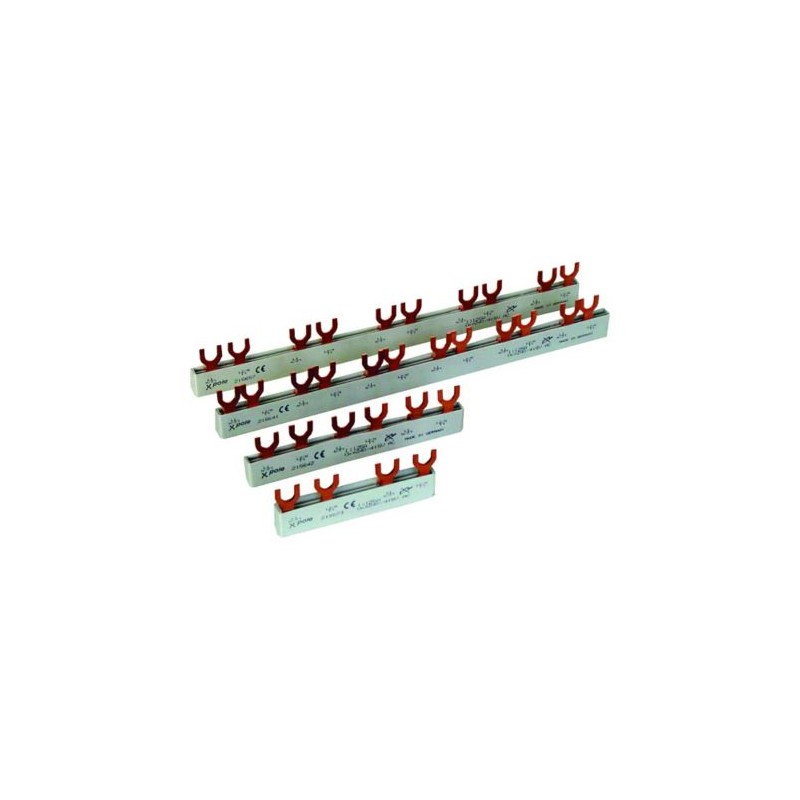

EVG-3PHAS/12MODUL/HI 215658 EATON MOELLER EV busbars 3Ph., 13.5HP, for auxiliary contact unit View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

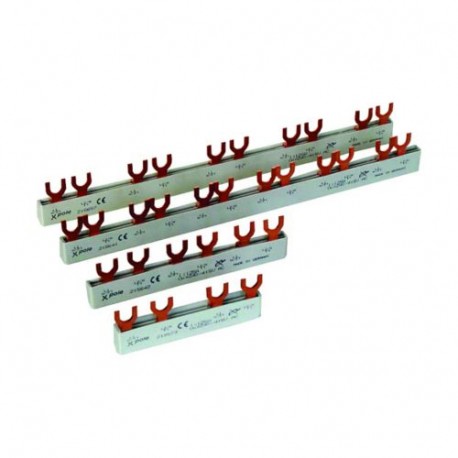

EVG-3PHAS/12MODUL/HI 215658 EATON MOELLER EV busbars 3Ph., 13.5HP, for auxiliary contact unit

EVG-3PHAS/12MODUL/HI

215658

EATON - MOELLER

Available

Ship on today

EV busbars 3Ph., 13.5HP, for auxiliary contact unit

More details


Industrial Protective Devices - EATON - MOELLER

* Brand new produt in its original packing covered by the warranties and certifications provided by EATON - MOELLER

QuantityPrice
1+$10.49
15+$9.01
29+$8.80
43+$8.69
57+$8.62
*This price is per unit and is the net value (not including taxes if applicable).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Delivery programme
Basic function
  Busbar
Basic function accessories
  Busbar for miniature circuit-breaker
Busbar for residual-current circuit-breakers
Busbar for combined residual-current/power circuit-breaker
Type
  3-phase + auxiliary contact
Product range
  EVG
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar (ecl@ss8.1-27-37-13-06 [ACN992008])
Number of phases
  3
Number of poles
  3
Suitable for number of devices
  4
Pitch dimensions
 mm0
Cross section
 mm²10
Length
 mm210
Number of modular spacings
  12
Rated permanent current Iu
 A63
Type of electric connection
  Fork
Insulated
  Yes
Rated surge voltage
 kV4
Conditioned rated short-circuit current Iq
 kA25
Max. rated operation voltage Ue
 V500
Rated short-time withstand current lcw
 kA0
Suitable for devices with N-busbar
  No
Suitable for devices with auxiliary switch
  Yes

Datasheet - PDF

Title:Language:Size:Type:
pdf- EV busbars 3Ph., 13.5HP, for auxiliary contact unit - EATON - EVG-3PHAS/12MODUL/HI - 215658English160 Kbytespdf- EV busbars 3Ph., 13.5HP, for auxiliary contact unit - EATON - EVG-3PHAS/12MODUL/HI - 215658
