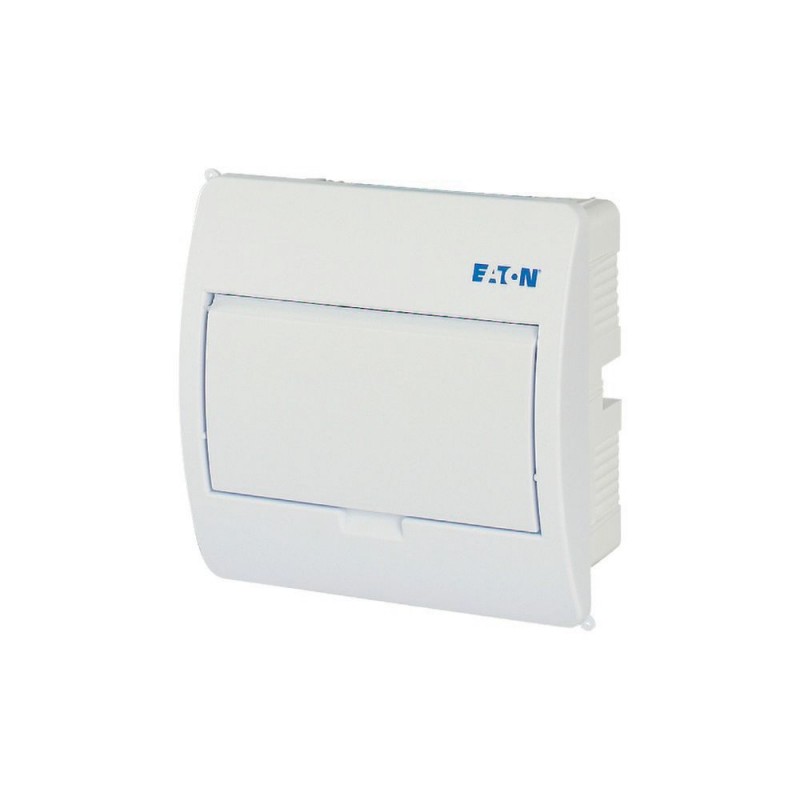

BC-U-1/8-TW-ECO 281697 EATON ELECTRIC ECO Compact distribution board, flush mounting, 1-rows, 8 MU, IP40

BC-U-1/8-TW-ECO

281697

EATON-MOELLER

ECO Compact distribution board, flush mounting, 1-rows, 8 MU, IP40

BC-U-1/8-TW-ECO

More details


Distribution boards > Small distribution board

Compact Distribution Boxes

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $25.63
Unit price: $25.63

Quantity Price
1+$25.63
2+$25.63
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


ECO Compact distribution board, flush mounting, 1-rows, 8 MU, IP40
ECO Compact distribution board, flush mounting, white RAL9003, IP40 degree of protection to IEC/EN 62208, 8 module units, 1-row, protection class 2, totally insulated, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, enclosure completely made of ABS, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm, AC 400 V, roHs-compliant, consisting of a plastic base with a top hat DIN-rail made of galvanized sheet steel, finger-proof IP2X neutral and protective conductor terminals , knockout cable entries on top and bottom, top with 46-mm device opening, white hinged flap flush with the front and featuring open-position latching, operator only with screw closures, top with sealable bottom, including inscription labels.

General specifications
Product name
Eaton xComfort ECO LV systems Final Distribution Boards
Part no.
BC-U-1/8-TW-ECO
EAN
4015082816971
Product Length/Depth
205 millimetre
Product height
125 millimetre
Product width
205 millimetre
Product weight
0.6 kilogram
Compliances
RoHS conform
Certifications
EN 62208
Product Tradename
xComfort ECO
Product Type
LV systems
Product Sub Type
Final Distribution Boards
Delivery program
Type
Basic deviceECO distribution boardInstallation distribution board
Application
Indoor (installation site)
Color
White
Signal white (RAL 9003)
Technical Data - Electrical
Frequency rating of contacts
50 Hz
Technical Data - Mechanical
Closure type
Other
Enclosure material
Plastic
Width in number of modular spacings
8
Mounting method
Flush mounting
DIN-rail
Flush mounted (plaster)
Material
ABS (plastic)
Degree of protection
IK05 (impact resistance)
IP40
Number of module space units per row
8
Number of rows
1
Terminal type
Screw terminals
PE and N terminal number and cross section
PE: 8 x 10 mm²
N: 8 x 10 mm²
Built-in depth
70 mm
Built-in height
0 mm
Built-in width
0 mm
Internal depth
98 mm
Cover/door color
White
Cover/door model
Closed
Cover/door type
Door
Single
Module rack type
Single-rail
Protective shrouding material
Plastic
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-20 °C - 70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP40
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
3.75 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Additional information
Fitted with:
Basic device
Device support rails
Neutral-/protective conductor terminal
Functions
Basic device
Protection class
II (totally insulated)
RAL-number
9003
Special features
IP40Protection Class IIPlastic housing white (RAL 9003)
Used with
Installation distribution board
ECO distribution board
Basic device

Technical data ETIM 9.0

Distribution boards (EG000023) / Small distribution board (EC000214)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (including small distribution board) / Small distribution board (ecl@ss13-27-14-24-09 [ACN387016])
Mounting method
Flush-mounted
Number of rows
1
Width in number of modular spacings
8
Type of covering
Door
Cover model
Closed
Type of door
Single
Transparent cover/door
No
Signal passing door
No
With lock
No
Type of closure
Other
Housing material
Plastic
Built-in depth
70 mm
Built-in height
0 mm
Built-in width
0 mm
Inner depth
98 mm
Earthing terminal block
No
Neutral terminal block
No
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
UV resistant
No
Colour
White
RAL-number
9003
Degree of protection (IP)
IP40
Height
125 mm
Width
205 mm
Depth
205 mm

Datasheet - PDF

▲
Title: Size: Type:
BC-U-1/8-TW-ECO 281697 EN_281697.pdf 189 Kbytes BC-U-1/8-TW-ECO 281697 EN_281697.pdf
