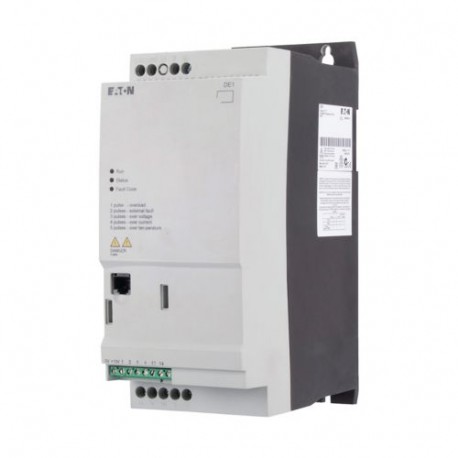

DE1-129D6NN-N20N 177364 EATON MOELLER DE1-129D6NN-N20N Variable speed starter, single-phase mains connection.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

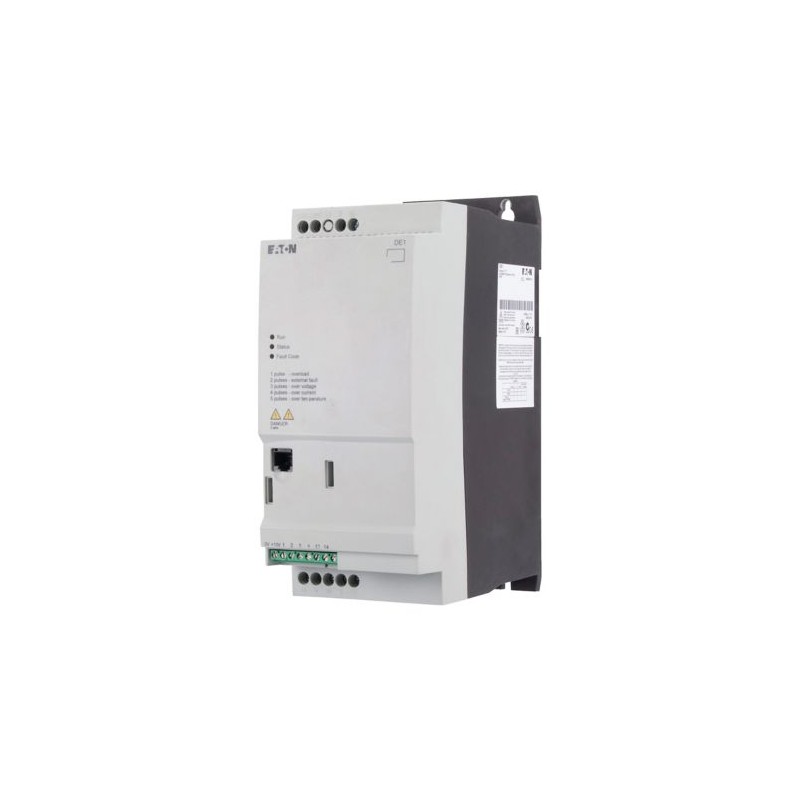

DE1-129D6NN-N20N 177364 EATON MOELLER DE1-129D6NN-N20N Variable speed starter, single-phase mains connection..

DE1-129D6NN-N20N

177364

EATON - MOELLER

Available

Ship on today

Product on demand only, returns will not be accepted.

DE1-129D6NN-N20N Variable speed starter, single-phase mains connection, three-phase motor connection at 230 V, 9.6 A and 2.2 kW / 0.3 HP

More details


Frequency inverters - EATON - MOELLER

* Brand new produt in its original packing covered by the warranties and certifications provided by EATON - MOELLER

QuantityPrice
1+$214.00
2+$209.08
3+$206.64
4+$206.56
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Delivery programme
Product range
  Variable speed starter
Part group reference (e.g. DIL)
  DE1
Rated operational voltage
Ue 230 V AC, 1-phase
240 V AC, single-phase
Output voltage with Ve
U2 230 V AC, 3-phase
240 V AC, 3-phase
Mains voltage (50/60Hz)
ULNV200 (-10%) - 240 (+10%)
Rated operational current

At 150% overload
IeA9.6
Note
  Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50 °C
Note
  Overload cycle for 60 s every 600 s
Assigned motor rating

Note
  for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
Note
  Overload cycle for 60 s every 600 s
Note
  at 230 V, 50 Hz
150 % Overload
PkW2.2
150 % Overload
IMA8.7
Note
  at 220 - 240 V, 60 Hz
150 % Overload
PHP3
150 % Overload
IMA9.6
Degree of Protection
  IP20/NEMA 0
Interface/field bus (built-in)
  OP-Bus (RS485)/Modbus RTU
Frame size
  FS2
Connection to SmartWire-DT
  with SmartWire-DT module DX-NET-SWD3
Technical data
General
Standards
  Specification for general requirements: IEC/EN 61800-2
EMC requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
Certifications
  CE, UL, cUL, c-Tick
Production quality
  RoHS, ISO 9001
Climatic proofing
ρw%< 95%, average relative humidity (RH), non-condensing, non-corrosive
Ambient temperature

operation (150 % overload)
ϑ°C-10 - +50, max. +60
Storage
ϑ°C-40 - +70
Radio interference level

Radio interference class (EMC)
  C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Environment (EMC)
  1st and 2nd environments
maximum motor cable length
ImC1 ≤ 5 m
C2 ≤ 10 m
C3 ≤ 25 m
Mechanical shock resistance
 g15 (11 m/s, EN 60068-2-27)
Vibration
  EN 61800-5-1
Altitude
 m0 - 1000 m above sea level
Above 1000 m: 1% derating for every 100 m
max. 2000 m
Degree of Protection
  IP20/NEMA 0
Protection against direct contact
  BGV A3 (VBG4, finger- and back-of-hand proof)
Main circuit
Supply

Rated operational voltage
Ue 230 V AC, 1-phase
240 V AC, single-phase
Mains voltage (50/60Hz)
ULNV200 (-10%) - 240 (+10%)
Input current (150% overload)
ILNA23.2
Supply frequency
fLNHz50/60
Frequency range
fLNHz45 - 66
Mains switch-on frequency
  Maximum of one time every 30 seconds
Power section

Overload current (150% overload)
ILA14.4
max. starting current (High Overload)
IH%200
Note about max. starting current
  for 1.875 seconds every 600 seconds
Output voltage with Ve
U2 230 V AC, 3-phase
240 V AC, 3-phase
Output Frequency
f2Hz0 - 50/60 (max. 300)
Switching frequency
fPWMkHz16
adjustable 4 - 32 (audible)
Operation Mode
  U/f control
Speed control with slip compensation
Frequency resolution (setpoint value)
ΔfHz0.025
Rated operational current

At 150% overload
IeA9.6
Note
  Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50 °C
Maximum leakage current to ground (PE) without motor
IPEmA< 3,5 AC, < 10 DC
Frame size
  FS2
Motor feeder

Note
  for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
Note
  Overload cycle for 60 s every 600 s
Note
  at 230 V, 50 Hz
150 % Overload
PkW2.2
Note
  at 220 - 240 V, 60 Hz
150 % Overload
PHP3
Apparent power

Apparent power at rated operation 230 V
SkVA3.82
Apparent power at rated operation 240 V
SkVA3.99
Braking function

Standard braking torque
  max. 30 % MN
DC braking torque
  adjustable to 100 %
Control section
Reference voltage
UsV10 V DC (max. 0.2 mA)
Analog inputs
  1, parameterizable, 0 - 10 V DC, 0/4 - 20 mA
Digital inputs
  4, parameterizable, 10 - 30 V DC
Relay outputs
  1, parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1)
Interface/field bus (built-in)
  OP-Bus (RS485)/Modbus RTU
Assigned switching and protective elements
Power Wiring

Safety device (fuse or miniature circuit-breaker)

IEC (Type B, gG), 150 %
  FAZ-B32/1N
UL (Class CC or J)
 A35
Mains contactor

150 % overload (CT/IH, at 50 °C)
  DILM7-… + DILM12-XP1
110 % overload (VT/IL, at 40 °C)
  DILM7-… + DILM12-XP1
Main choke

150 % overload (CT/IH, at 50 °C)
  DX-LN1-024
Radio interference suppression filter (external)
  DX-EMC12-025-FS2
Note regarding radio interference suppression filter
  Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Motor feeder

motor choke

150 % overload (CT/IH, at 50 °C)
  DX-LM3-011
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Operating ambient temperature min.
 °C-10
Operating ambient temperature max.
 °C50
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Frequency converter =< 1 kV (EC001857)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter = < 1 kv ([email protected] [AKE177011])
Mains voltage
 V200 - 240
Mains frequency
  50/60 Hz
Number of phases input
  1
Number of phases output
  3
Max. output frequency
 Hz300
Max. output voltage
 V230
Rated output current I2N
 A9.6
Max. output at quadratic load at rated output voltage
 kW0.5
Max. output at linear load at rated output voltage
 kW0.5
With control unit
  No
Application in industrial area permitted
  Yes
Application in domestic- and commercial area permitted
  Yes
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for KNX
  No
Supporting protocol for MODBUS
  Yes
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for SERCOS
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  Yes
Number of HW-interfaces industrial Ethernet
  0
Number of HW-interfaces PROFINET
  0
Number of HW-interfaces RS-232
  0
Number of HW-interfaces RS-422
  0
Number of HW-interfaces RS-485
  1
Number of HW-interfaces serial TTY
  0
Number of HW-interfaces USB
  0
Number of HW-interfaces parallel
  0
Number of HW-interfaces other
  0
With optical interface
  No
With PC connection
  Yes
Integrated breaking resistance
  No
4-quadrant operation possible
  No
Type of converter
  U converter
Degree of protection (IP)
  IP20
Height
 mm230
Width
 mm90
Depth
 mm168
Relative symmetric net frequency tolerance
 %5
Relative symmetric net current tolerance
 %10
Approvals
Product Standards  UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No.  E172143
UL Category Control No.  NMMS, NMMS7
CSA File No.  UL report applies to both US and Canada
North America Certification  UL listed, certified by UL for use in Canada
Specially designed for North America  No
Suitable for  Branch circuits
Max. Voltage Rating  1~ 240 V AC IEC: TN-S UL/CSA: Y (Solidly Grounded Wey)
Degree of Protection  IEC: IP20
Dimensions
IL040005ZU DE1 variable frequency drive

>
>
>
>
>
>
>
>
>
>
>>
