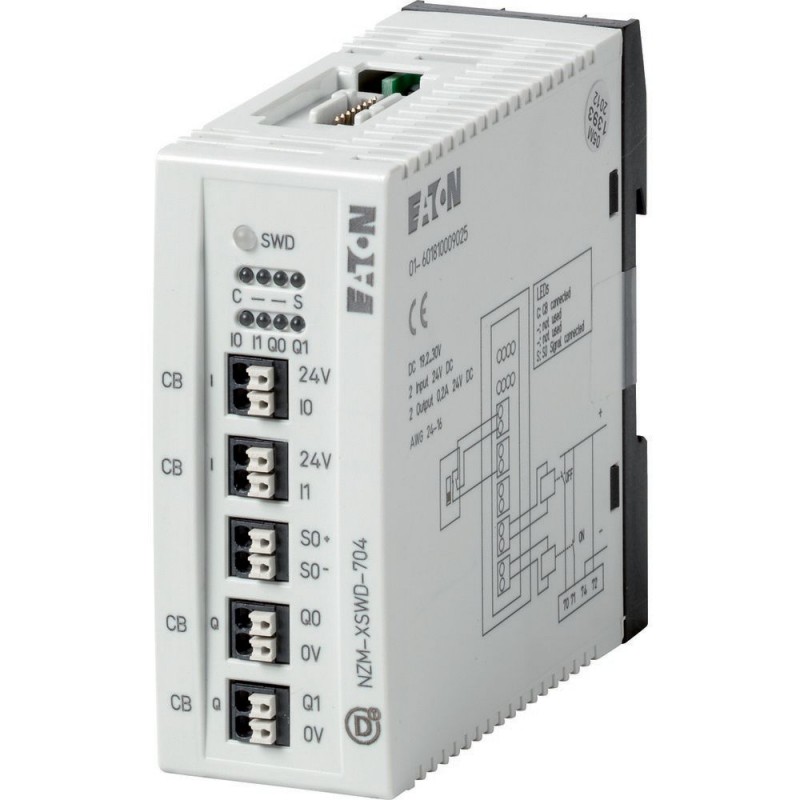

NZM-XSWD-704 135530 EATON MOELLER Connection, SmartWireDarwin, for NZM View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM-XSWD-704 135530 EATON MOELLER Connection, SmartWireDarwin, for NZM

NZM-XSWD-704

135530

EATON - MOELLER

Available

Ship on today

Connection, SmartWireDarwin, for NZM

More details


Circuit-breakers NZM - EATON - MOELLER

* Brand new produt in its original packing covered by the warranties and certifications provided by EATON - MOELLER

QuantityPrice
1+$429.25
2+$427.21
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Delivery programme
Product range
  SmartWire-DT slave
Subrange
  SmartWire-DT NZM module for circuit-breaker NZM
Product range
  Accessories
Standard/Approval
  IEC
Construction size
  NZM2/3/4
Accessories
  Accessories, diagnostics & communication
Function
  The module implements the data connection between the NZM2/3/4 with electronic release and the SmartWire-DT.
Description
  A switch with a remote operator can also be remotely operated with the module.
Two digital inputs for the switch status
2 transistor outputs for remote switching
Retentive memory for energy data (kWh)
Energy data is transmitted through digital input (S0) from an external energy measuring module NZN...-XMC-SO.
Messages
  Status data NZM: ON/OFF/TRIPPED
Load warnings
Reason for last trip
Actual current value in A
Switch type
Actual settings of the rotary coding switches
Information about equipment supplied
  A connection cable (1.90 m) for the circuit-breaker and two NZM auxiliary contacts (1 x NO, 1 x NC) are included as standard.
For use with
  SmartWire-DT interface for NZM circuit-breakers
Connection to SmartWire-DT
  yes
Technical data
General
Standards
  IEC/EN 61131-2
EN 50178
Dimensions (W x H x D)
 mm35 x 90 x 101
Weight
 kg0.1
Mounting
  Top-hat rail IEC/EN 60715, 35 mm
Mounting position
  Vertical
Climatic environmental conditions
Relative humidity

Condensation
  Take appropriate measures to prevent condensation
Relative humidity, non-condensing (IEC/EN 60068-2-30)
 %5 - 95
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
  IP20
Vibrations (IEC/EN 61131-2:2008)

Constant amplitude 3,5 mm
 Hz5 - 8.4
Constant acceleration 1 g
 Hz8.4 - 150
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
 Impacts9
Drop to IEC/EN 60068-2-31
Drop heightmm50
Free fall, packaged (IEC/EN 60068-2-32)
 m0.3
Electromagnetic compatibility (EMC)
Overvoltage category
  II
Pollution degree
  2
Electrostatic discharge (IEC/EN 61131-2:2008)

Air discharge (Level 3)
  kV8
Contact discharge (Level 2)
  kV4
Electromagnetic fields (IEC/EN 61131-2:2008)

80 - 1000 MHz
 V/m10
1.4 - 2 GHz
 V/m3
2 - 2.7 GHz
 V/m1
Radio interference suppression (SmartWire-DT)
  EN 55011 Class A
Burst (IEC/EN 61131-2:2008, Level 3)

Supply cable
 kV2
Signal lines
 kV1
SmartWire-DT cables
 kV1
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
 V10
SmartWire-DT network
Station type
  SmartWire-DT slave
Setting the baud rate
  automatic
Status SmartWire-DT
 LEDGreen
Connection
  Plug, 8-pole
Connection plug: External device plug SWD4-8SF2-5
Current consumption (15 V SWD supply)


Electricity consumption  Bus AUX 24 V AUX 24 V
    With active remote operator with remote operator inactive

  mA mA mA
NZM-XSWD-704 35 300 100
Connection supply and I/O
Terminal for I/O sensor

Connection type
  Push in terminals
Solid
 mm20.2 - 1.5 (AWG 24 - 16)
Flexible with ferrule
 mm20.25 - 1.5
Digital inputs
Quantity
  8
Input current
 mANormally 4 at 24 V DC
Limit value type 1
  Low < 5V DC;High > 15V DC
Input delay
  High->Low < 0.2 ms
Low High typ. < 0.2 ms
Status display inputs
 LEDyellow
Digital semi-conductor outputs
Quantity
  4
Output current
 ANormally 0.5 at 24 V DC
Short-circuit tripping current
 Amax. 1.2 over 3 ms
Lamp load
RLLW
Technical data for design verification

Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
PLC's (EG000024) / Fieldbus, decentr. periphery - communication module (EC001604)
Electric engineering, automation, process control engineering / Control / Field bus, decentralized peripheral / Field bus, decentralized peripheral - communications module ([email protected] [BAA073010])
Supply voltage AC 50 Hz
 V0 - 0
Supply voltage AC 60 Hz
 V0 - 0
Supply voltage DC
 V24 - 24
Voltage type of supply voltage
  DC
Supporting protocol for TCP/IP
  No
Supporting protocol for PROFIBUS
  No
Supporting protocol for CAN
  No
Supporting protocol for INTERBUS
  No
Supporting protocol for ASI
  No
Supporting protocol for KNX
  No
Supporting protocol for MODBUS
  No
Supporting protocol for Data-Highway
  No
Supporting protocol for DeviceNet
  No
Supporting protocol for SUCONET
  No
Supporting protocol for LON
  No
Supporting protocol for SERCOS
  No
Supporting protocol for PROFINET IO
  No
Supporting protocol for PROFINET CBA
  No
Supporting protocol for Foundation Fieldbus
  No
Supporting protocol for EtherNet/IP
  No
Supporting protocol for AS-Interface Safety at Work
  No
Supporting protocol for DeviceNet Safety
  No
Supporting protocol for INTERBUS-Safety
  No
Supporting protocol for PROFIsafe
  No
Supporting protocol for SafetyBUS p
  No
Supporting protocol for other bus systems
  Yes
Radio standard Bluetooth
  No
Radio standard WLAN 802.11
  No
Radio standard GPRS
  No
Radio standard GSM
  No
Radio standard UMTS
  No
IO link master
  No
System accessory
  Yes
Degree of protection (IP)
  IP20
With potential separation
  Yes
Fieldbus connection over separate bus coupler possible
  Yes
Rail mounting possible
  Yes
Wall mounting/direct mounting
  Yes
Front build in possible
  No
Rack-assembly possible
  No
Suitable for safety functions
  No
Category according to EN 954-1
  B
SIL according to IEC 61508
  None
Performance level acc. to EN ISO 13849-1
  None
Appendant operation agent (Ex ia)
  No
Appendant operation agent (Ex ib)
  No
Explosion safety category for gas
  None
Explosion safety category for dust
  None
Width
 mm35
Height
 mm90
Depth
 mm101
Approvals
North America Certification  Request filed for UL and CSA
Dimensions
IL05006005Z (AWA2723-2721) SmartWire-DT: NZM Interface

>
>
>
>
>>
