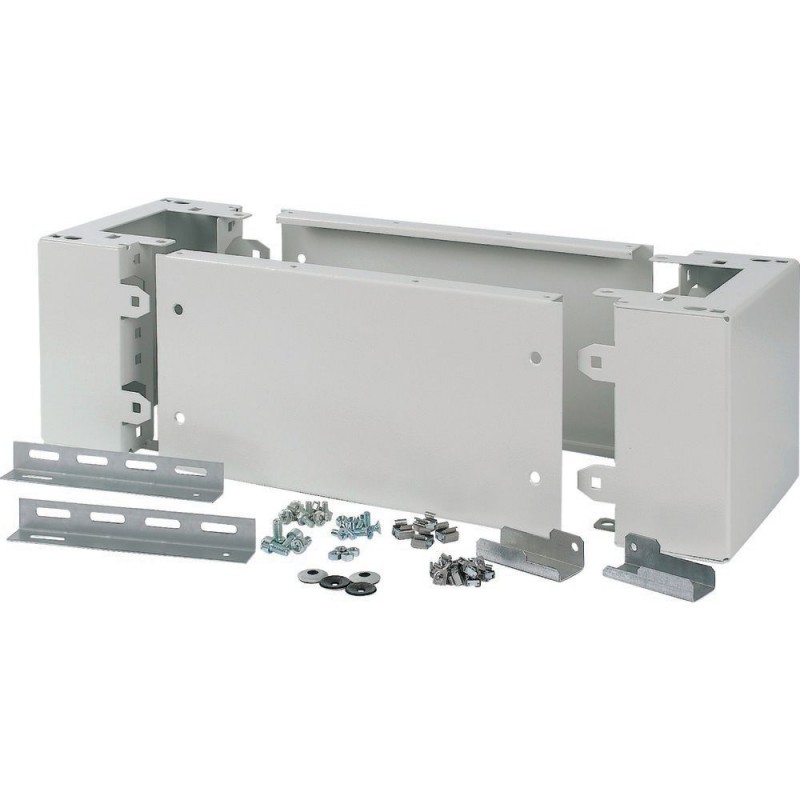

PLI-6/250-200-CS 140472 0002466326 EATON ELECTRIC Cable marshalling base, HxWxD 200x600x250mm
PLI-6/250-200-CS
140472
0002466326
EATON-MOELLER
Cable marshalling base, HxWxD=200x600x250mm
PLI-6/250-200-CS
Cabinet enclosures > Base/base element (switchgear cabinet)
Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Cable marshalling base, HxWxD=200x600x250mm
Cable marshalling base, front and side walls removable, including fixing sundries, cable clamp rail not included as standard, sheet steel RAL7035
General specifications
Product name
Eaton xEffect CS plinth
Part no.
PLI-6/250-200-CS
EAN
4015081372553
Product Length/Depth
250 millimetre
Product height
200 millimetre
Product width
600 millimetre
Product weight
6 kilogram
Compliances
RoHS conform
Product Tradename
xEffect CS
Product Type
Accessories
Product Sub Type
Plinth
Delivery program
Type
Accessory CS
Model
Base complete
Accessory/spare part type
Cable marshalling bases
Color
Gray
Technical Data - Mechanical
Surface finishing
Powder-spray painted RAL 7035, light gray
Material
Steel plate
Steel
Steel
Load capacity - max
275 kg
Suitable for enclosure building length/depth
250 mm
Suitable for enclosure building width
600 mm
Additional information
RAL-number
7035
Special features
Front and side walls removable
Including fixing sundries
Including fixing sundries
Suitable for
Cable patch
Used with
Enclosure depth = 250 mm
Enclosure width = 600 mm
Enclosure width = 600 mm
Technical data ETIM 9.0
Cabinet enclosures (EG000011) / Base/base element (enclosure/cabinet) (EC000721)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Base/plinth (electrical cabinet) / Base/base element (enclosure) (ecl@ss13-27-18-20-03 [ACN612016])
Model
Base complete
Material
Steel
Colour
Grey
RAL-number (similar)
7035
Impact strength
Other
Max. load capacity
275 kg
Suitable for enclosure building width
600 mm
Suitable for enclosure building depth
250 mm
Suitable for aeration/de-aeration
No
Suitable for cable patch
Yes
Suitable for outdoor set-up
No
Width
600 mm
Height
200 mm
Depth
250 mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PLI-6/250-200-CS 0002466326 140472 EN_140472.pdf | 158 Kbytes |
 |
