> >>XSPBA0801 107681 2465266 ELECTRIC Bottom plate, XE, +foam, for B 800 mm, IP20
Previous Product Next Product

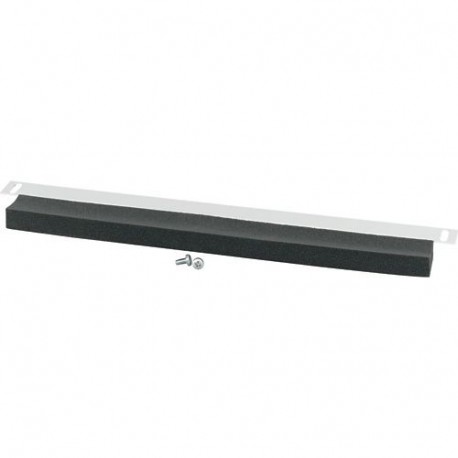

XSPBA0801 107681 2465266 EATON ELECTRIC Bottom plate, XE, +foam, for B 800 mm, IP20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

XSPBA0801 107681 2465266 EATON ELECTRIC Bottom plate, XE, +foam, for B 800 mm, IP20

XLST2J8C

107681

2465266

EATON-MOELLER

Bottom plate, XE, +foam, for B = 800 mm, IP20

XLST2J8C

XLST2J8C - Bottom/Top coverstrip 75mm long, 35mm blind + 40mm foam gasket, IP20, for 800mm Sectionwidth, grey

More details


Cabinet enclosures > Component for installation (switchgear cabinet)

Enclosures

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $16.05
Unit price: $16.05

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


EL-Nummer (Norway)
2465266
Bottom/Top coverstrip 75mm long, 35mm blind + 40mm foam gasket, IP20, for 800mm Sectionwidth, grey
Bottom/Top coverstrip 75mm long, 35mm blind + 40mm foam gasket, IP20, for 800mm Sectionwidth, material thickness 1.5 mm, in RAL 7035 structure finish

Delivery program

Product range
Control centres XVTL
Basic function
Accessories
Product function
Accessories
Accessories
Bottom plates
Single unit/Complete unit
Accessories
Description
Bottom plates as blanking covers
adjustable from 60 - 75 mm
Cable bushings < ∅ 50 mm possible when using 2 XSPBA…
∅ 50 - 80 mm cable bushings possible when using an XSPBA… in conjunction with XVTL-BP/JL
Function
for downward separation and for cable entries
Material
Sheet steel 1.5 mm
Surface finish
RAL 7035, light grey
Information about equipment supplied
Including screws
Suitable for depth
60 -75
Suitable for width
800
Cableway
< ⌀ 50 mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Component for installation (switchgear cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) ([email protected] [ACN627011])
Model
Floor plate
Suitable for enclosure building width
800 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
0 mm
Width
700 mm
Height
20 mm
Depth
75 mm
Max. load capacity
0 kg
Material
Metal
Colour
Grey
RAL-number
7035

Datasheet - PDF

▲
Title: Size: Type:
XLST2J8C 2465266 107681 EN_107681.pdf 122 Kbytes XLST2J8C 2465266 107681 EN_107681.pdf
