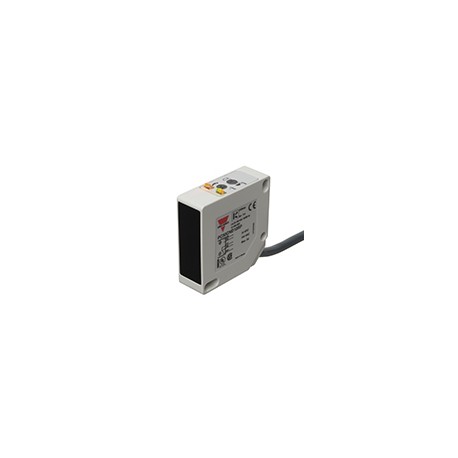

PC50CND10RP CARLO GAVAZZI Selected parameters SYSTEM Diffuse reflective HOUSING rectangular SENSING RANGE 1 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PC50CND10RP CARLO GAVAZZI Selected parameters SYSTEM Diffuse reflective HOUSING rectangular SENSING RANGE 1 ..

PC50CND10RP

PC50CND10RP

CARLO GAVAZZI

Available

Ship on today

Selected parameters SYSTEM Diffuse reflective HOUSING rectangular SENSING RANGE 1 ... 5 m CONNECTION Cable OUTPUT RELAY SPDT MATERIAL Plastic Others SENSING RANGE 1 m HOUSING 50 x 50 x 17 mm MATERIAL PC + ABS

More details


Photocells Photoelectric Sensors Detectors

Sensors

Photoelectric Sensors

* Brand new produt in its original packing covered by the warranties and certifications provided by CARLO GAVAZZI

QuantityPrice
1+$83.25
3+$79.39
5+$77.98
7+$77.17
10+$76.44
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Photoelectrics
Type PC50CND10RP
• Range: 1 m
• Adjustable sensitivity
• Modulated, infrared light
• Supply voltage:
12 to 240 VDC and 24 to 240 VAC, 50/60 Hz
• Output: Relay 3 A, 30 VDC, 240 VAC
• Make and break switching function
• LED-indication for output ON, signal stability and supply ON
• Protection: reverse polarity, transients
• High degree of EMC
Product Description
Ordering Key
PC50CND10RP

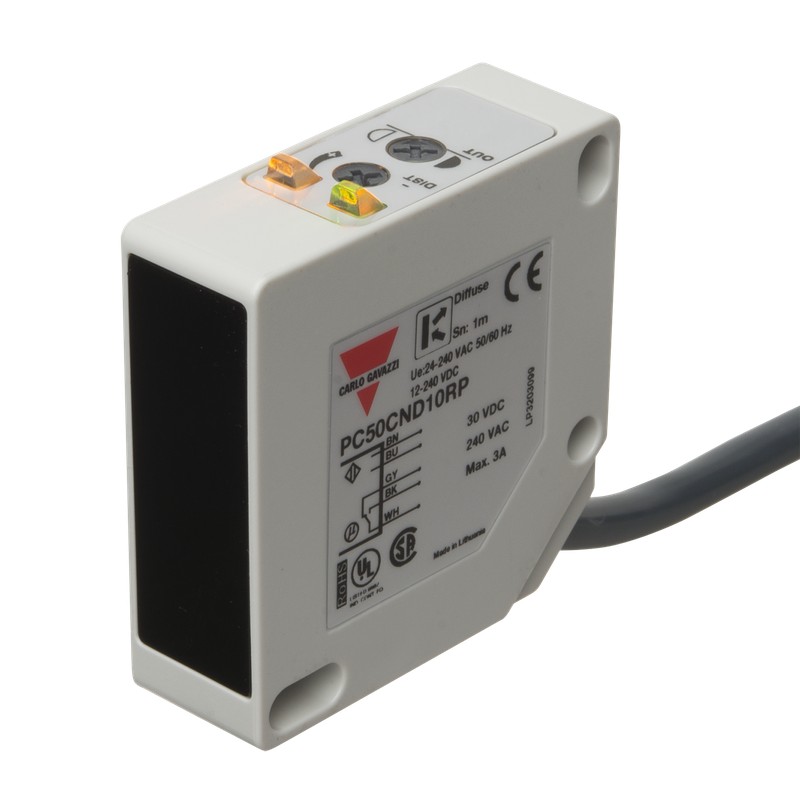

The PC50CND. is a general purpose diffuse-reflective sen- sor in a compact squared
17 x 50 x 50 mm reinforced PC/ABS-housing. It is useful in applications where basic sensors provide adequate
sensing performance. The long sensing range in addition to sensitivity adjustment gives a very flexible sensor. Light and dark operation is switch selectable.
Type
Housing style Housing size Housing material Housing length Detection principle Sensing distance Output type
Output configuration
Type Selection
Housing Range Ordering no.
W x H x D (Sn) Make and break switching
17 x 50 x 50 mm 1 m PC 50 CND 10 RP
Specifications
Rated operating distance (Sn) Up to 1 m,
reference target Kodak
test card R 27, white, 90%
reflectivity, 200 x 200 mm
Blind zone Max. 10 cm
Sensitivity Adj. by single-turn pot. meter
Temperature drift ≤ 0.5%/°C
Hysteresis (H)
Differential travel 3-20%
Rated operational volt. (UB ) 12 to 240 VDC
24 to 240 VAC, 50 to 60 Hz
Rated operational power ≤ 2.0 VA (relay ON)
Output
Contact ratings
Resistive loads AC 1 3 A/250 VAC
DC 1 3 A/30 VDC (> 10 mA/5 VDC) Mechanical life (typical) ≥ 15 x 106 operations Electrical life (typical) ≥ 1 x 105 operations
at 3 A/240 VAC
Protection Reverse polarity, transients
Light source GaAlAs, LED, 880 nm Light type Infrared, modulated Sensing angle ± 2° at 1/2 range Ambient light Max. 5’000 lux
Operating frequency 20 Hz
Response time
OFF-ON (tON) ≤ 25 ms
ON-OFF (tOFF) ≤ 25 ms
Power ON delay (tv) ≤ 300 ms
Output function Light and dark operation is switch selectable
Indication function
Output ON LED, yellow
Supply ON, signal stability LED, green
Environment
Overvoltage category II (IEC 60664/60664A 60947-1) Pollution degree 3 (IEC 60664/60664A 60947-1) Degree of protection IP 67 (IEC 60529 60947-1)
Temperature
Operating -20° to +60°C (-4° to +140°F) Storage -25° to +80°C (-13° to +176°F)
Vibration 10 to 150 Hz, 0.5 mm/7.5 g
(IEC 68-2-6)
Shock 2 x 1 m & 100 x 0.5 m
(IEC 68-2-32)
Rated insulation voltage 250 VAC (rms)
Housing material
Body PC/ABS, grey, reinforced
Front glass PC black
Mounting bracket Steel, galvanized
Connection
Cable PVC, grey, 2 m, 5 x 0.34 mm2
Weight 130 g Approvals UL, CSA CE-marking Yes
Specifications are subject to change without notice (28.02.2006) 1
