DPB01CM48 CARLO GAVAZZI Selected parameters OUTPUT SIGNAL 1 relay SETPOINTS 2, adjustable MONITORED VARIABLE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DPB01CM48 CARLO GAVAZZI Selected parameters OUTPUT SIGNAL 1 relay SETPOINTS 2, adjustable MONITORED VARIABLE..

DPB01CM48

DPB01CM48

CARLO GAVAZZI

Available

Ship on today

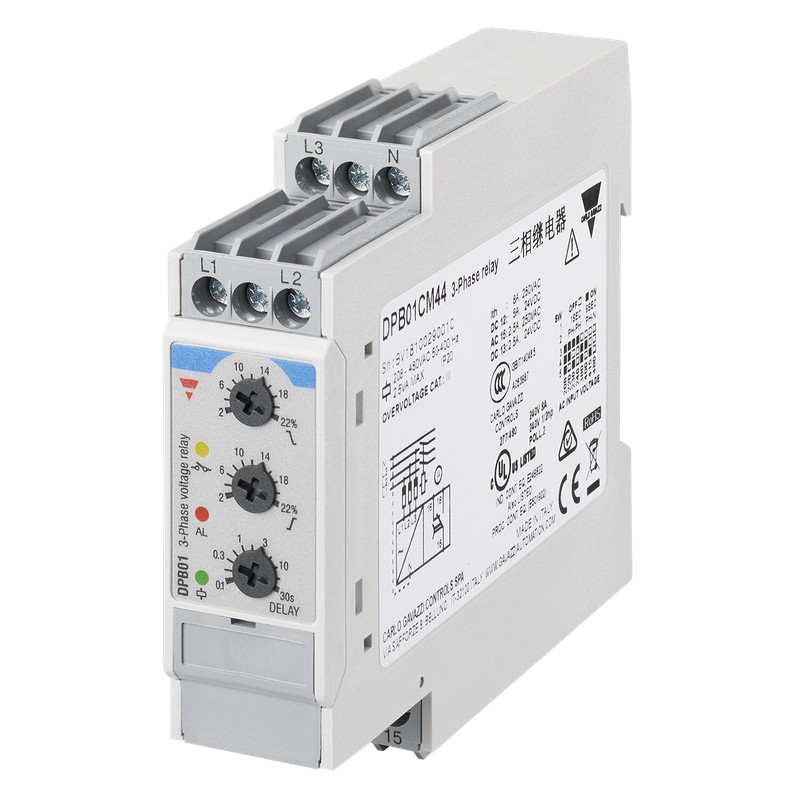

Selected parameters OUTPUT SIGNAL 1 relay SETPOINTS 2, adjustable MONITORED VARIABLE 3-phase AC voltage monitoring Others SIZE 22,5 mm POWER SUPPLY RANGE 380÷480 VAC MONITORING FUNCTION Under and over voltage, phase sequence, phase loss MOUTING DIN-rail INPUT RANGE 380÷480 VAC DELAY 1, adjustable

More details


Energy Meters Control Analizers

Controls

Monitoring Relays and Measurement Current Transformers

* Brand new produt in its original packing covered by the warranties and certifications provided by CARLO GAVAZZI

QuantityPrice
1+$157.65
2+$153.52
3+$151.47
4+$150.16
6+$149.19
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Monitoring Relays
True RMS 3-Phase, 3-Phase+N, Multi-function
Types DPB01, PPB01
DPB01 PPB01
• TRMS 3-phase over and under voltage,
phase sequence and phase loss monitoring relays
• Detect when all 3 phases are present and have the correct phase sequence (except for N versions)
• Available versions (W4) supplied between phase and neutral
• Detect if all the 3-phase-phase or phase-neutral volt- ages are within the set limits
• Upper and lower limits separately adjustable
• Measure their own power supply
• Selection of measuring range by DIP-switches
• Adjustable voltage on relative scale
• Adjustable delay function (0.1 to 30 s)
• Output: 8 A SPDT relay N.E.
• For mounting on DIN-rail in accordance with
DIN/EN 50 022 (DPB01) or plug-in module (PPB01)
• 22.5 mm Euronorm housing (DPB01)
or 36 mm plug-in module (PPB01)
• LED indication for relay, alarm and power supply ON
Product Description Ordering Key
DPB 01 C M23
3-phase or 3-phase+neutral line voltage monitoring relay for phase sequence, phase loss, over and under voltage (separately adjustable set
Type Selection
points) with built-in time delay function.
Supply ranges from 208 to
480 VAC covered by two multivoltage relays.
Housing Function Type
Item number
Output
Power supply
Mounting Phase sequence Output Supply: Supply: Supply:
detection 208 to 240 VAC 380 to 415 VAC 380 to 480 VAC
DIN-rail yes SPDT DPB 01 C M23 DPB 01 C M48 W4 DPB 01 C M48
Plug-in yes SPDT PPB 01 C M23 PPB 01 C M48 W4
Plug-in yes SPDT PPB 01 C M48
DIN-rail no SPDT DPB 01 C M23 N DPB 01 C M48 N W4 DPB 01 C M48 N
Plug-in no SPDT PPB 01 C M23 N PPB 01 C M48 N W4
Plug-in no SPDT PPB 01 C M48 N
Input Specifications
Input
L1, L2, L3, N DPB01: Terminals L1, L2, L3, N PPB01: Terminals 5, 6, 7, 11
Measure their own supply
Note: Connect the neutral only if it is intrinsically at the star centre
Measuring ranges
208 to 240 VAC 177 to 275 VL-L AC M23 versions
380 to 415 VAC 323 to 475 VL-L AC PPB01CM48
PPB01CM48N
D/P PB01CM48W4
D/P PB01CM48NW4
380 to 480 VAC 323 to 550 VL-L AC DPB01CM48
DPB01CM48N
Ranges
Upper level +2 to +22%
of the nominal voltage
Lower level -22 to -2%
of the nominal voltage
Note: The input voltage
must not exceed the maximum rated voltage or drop below
the minumum rated voltage reported above.
Hysteresis
Set points from 2 to 5% 1% Set points from 5 to 22% 2%
Specifications are subject to change without notice (31.03.10) 1
