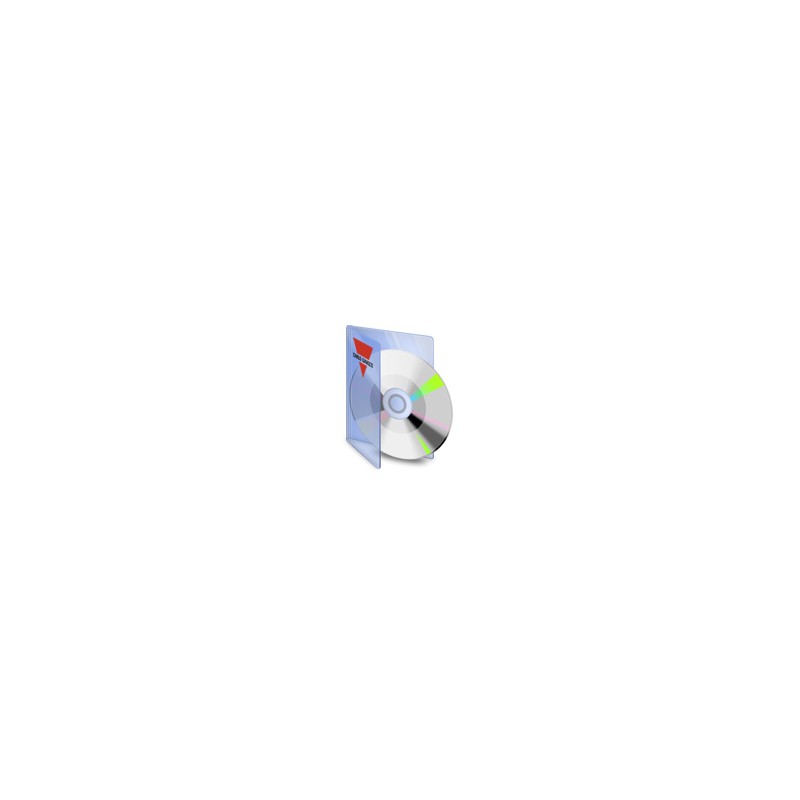

PQTSOFTNETWORK CARLO GAVAZZI Selected parameters FUNCTION Network software PROGRAMMING TOOL FOR PQT 90 TYPE .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PQTSOFTNETWORK CARLO GAVAZZI Selected parameters FUNCTION Network software PROGRAMMING TOOL FOR PQT 90 TYPE ..

PQTSOFTNETWORK

PQTSOFTNETWORK

CARLO GAVAZZI

Available

Ship on today

Selected parameters FUNCTION Network software PROGRAMMING TOOL FOR PQT 90 TYPE Software Others DESCRIPTION Network management for PQT-90 OPERATING SYSTEM Windows 98, Windows XP, Vista

More details


Energy Meters Control Analizers

Controls

Energy Management, Software and Accessories

* Brand new produt in its original packing covered by the warranties and certifications provided by CARLO GAVAZZI

QuantityPrice
1+$116.09
2+$112.80
4+$110.13
5+$109.38
7+$108.41
*This price is per unit and is the net value (not including taxes if applicable).

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Energy Management
Energy Management Software
Type PQTSoft Network
• Main Menu Description
• Management of up to 255 PQT90 in a local RS485 network connected to a PC
• Management of up to 100 single remote PQT90’s
• Management of up to 25000 PQT90’s in max. 100
remote RS485 networks composed of 250 instru-
ments each.
• Monitoring and control of all the electrical variables
• Event stamping
• Manual and automatic download of the values
logged in the 2 Mb memory
Product Description
How toorderPQTSOFTNETWORK
Software in English and other languages for the data downloading from the mem- ory of PQT90. Personalized SMS can be associated to the set alarms. Management of a digital or analogue com-
munication modem. The soft- ware canbeusedwiththe most common operating sys- tems such as:
Windows
95/98/98SE/2000/NT/XP.
Model (software only)
Model (software and cables to be used by modem/GSM)
Important Note
PQTSOFTNETWORK-KIT
The correctdatatransferby means of RS485 (PQT90) and RS232 (PC) is to be made by means of our serial communi- cation adaptor RS485/RS232 model SIUPC2.
General Characteristics
Configuration menu
PQTSoft Network
Setup71
LocalsinglePQT connected to
RS232the PC by RS232 serial port.
Operating mode
Three operation modes can be selected:
- local RS485
- management of a communication modem for each single instrument (data download)
- management of a communication modem from the
SIU-PC
... MAX255
local network (RS485 communication, data download).
RS232
RS485
RS485
Maximum 255 PQT’s in an RS485 local networkconnected to the PC by RS232 thanks to the RS485-RS232SIU-PC convert- er.
MODEMMODEM
Data logging
In pre-formatted XLS files (excel data base). The instan- taneous variables, energies, gas, and water are saved
RS232
Telephone network RS232
separately in specific files.
... MAX100
Max. 100 remotesingle PQT’s (PQTSoft can managemax.
100 phone numbersto be chosen among those listed in the phone book) connected to the PC by means ofa telephone networkthanksto an analoguemodem(make sure that the “nullmodem” connector is always connected betweenPQT and modem).
MODEMMODEM SIU-PC
Data download
Manual or automatic download on regular basis. Modem communication.
Phonebook management (storage of 100 numbers).
RS232
Telephone network RS232
... MAX255
RS485
Each number can be associated to a modem corre-
... MAX100
... MAX255
sponding either to a single instrument or to a network
Max25,000PQT’sinmax100remoteRS485networks
(eachmadeof250instruments)connected tothePCby meansof a telephonenetworkand RS485-RS232SIU-PC converter.
of instruments. Each network can manage up to 255 local instruments.
Communication setup 73
Specifications are subject to change without notice PQTSOFT NETWORK DS ENG1502081
