EASSM2310M CARLO GAVAZZI Selected parameters FUNCTION Delay on operate OUTPUT SIGNAL Solid state Others INPU.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

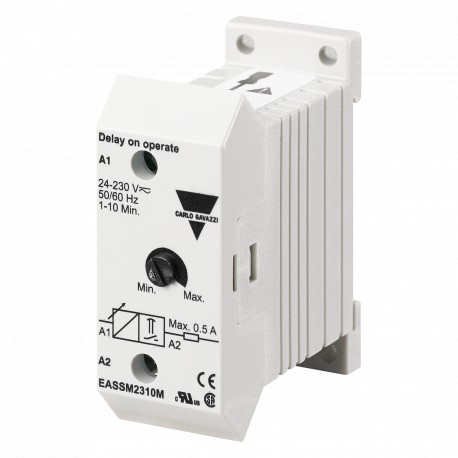

EASSM2310M CARLO GAVAZZI Selected parameters FUNCTION Delay on operate OUTPUT SIGNAL Solid state Others INPU..

EASSM2310M

EASSM2310M

CARLO GAVAZZI

Available

Ship on today

Selected parameters FUNCTION Delay on operate OUTPUT SIGNAL Solid state Others INPUT RANGE 60 s - 600 s MOUNTING DIN-rail (22,5 mm)/panel SIZE 22,5 mm POWER SUPPLY RANGE 24÷230 V AC/DC SOCKET N/A

More details


Timers

Controls

Timers

* Brand new produt in its original packing covered by the warranties and certifications provided by CARLO GAVAZZI

QuantityPrice
1+$26.29
9+$23.47
17+$22.95
25+$22.67
34+$22.49
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Timers
Delay on Operate
Type EAS
• Fail-safe two-wire connection
• Low-cost
• Multi-voltage: 24-230 VAC
• Delay on operate
• Time range: 0.5 s - 10 m
• Knob-adjustable time setting
• Output: SCR 10-500 mA (screws) and SCR 10-700mA (Fast-ON)
• For mounting on DIN-rail in accordance with
DIN/EN 50 022
• 22.5 mm small Euronorm housing
SCREW FAST-ON
Product Description Ordering Key
EAS S M23 10S F
Small, low-cost mono function timer with adjustable time setting. Only 2-wire con- nection for easy and fail-safe use (see diagram).
Type Selection
For mounting on DIN-rail or directly on surface by screws. The timer is used e.g. to delay small industrial relays or 3-phase contactors.
Housing Function Small E-line Output
Power supply
Time range
Fast-ON connection
Mounting Output Time range Connection Supply: 24 - 230 VAC/DC
For DIN-rail SCR 0.5 - 10 s Screws EAS S M23 10S
or for screw SCR 0.1 -1 m Screws EAS S M23 1M
SCR 1 - 10 m Screws EAS S M23 10M
For DIN-rail SCR 0.5 - 10 s Fast-ON EAS S M23 10S F
or for screw SCR 0.1 -1 m Fast-ON EAS S M23 1M F
SCR 1 - 10 m Fast-ON EAS S M23 10M F
Time Specifications
Time ranges
10 s 0.5 - 10 s
1 m 0.1 - 1 m
10 m 1 - 10 m
Time range accuracy max. setting: actual time
≥ max. set time
min. setting: actual time
≤ min. set time
Repeat accuracy ≤ 0.2%
Time variation
Within rated power supply ≤ 0.1%/V
and ambient temperature ≤ 0.2%/°C
Reset
Time and output Power supply interruption
≥ 200 ms
Output Specifications
Output SCR
Output current
Maximum load current
(screw terminals) 500 mA (Fast-ON connection) 700 mA
Maximum current for 100 ms
(screw terminals) 5.5 A (Fast-ON connection) 7 A
Minimum load current 10 mA
Leakage current ≤ 3.5 mA @ 230 V
typ.: 2 m
Voltage drop ≤ 8 VAC/DC
typ.: 5 VAC/DC @ 50 mA
Supply Specifications
Power supply Overvoltage cat. III (IEC 60664) Rated operational voltage (IEC 60038)
24-230 VAC/DC, -10/+15% Rated insulation voltage None
Specifications are subject to change without notice (23.10.06) 1
