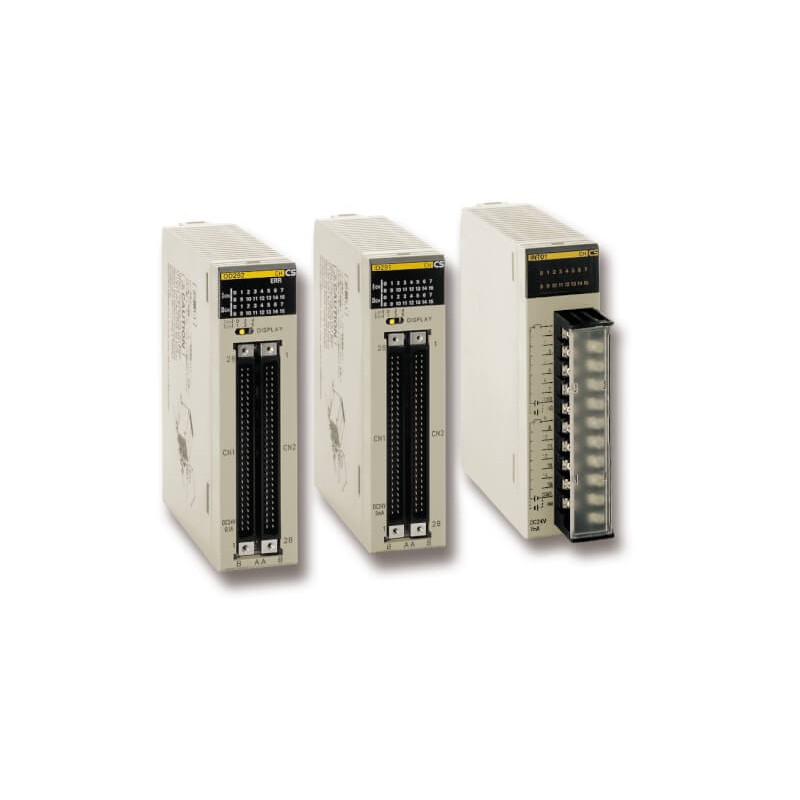

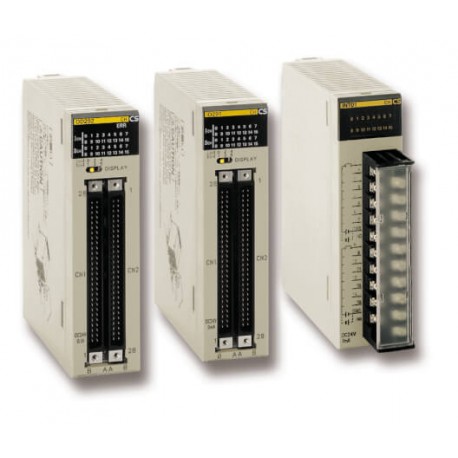

CS1W-IDP01 CS1W0125A 135628 OMRON Modul 16 Hochgeschwindigkeits-Eingänge

16

AC or DC input

120 VAC or VDC

10 mA

-

M3

CS1W-IA111

16

AC input

240 VAC

10 mA

-

M3

CS1W-IA211

16

DC input

24 VDC

7 mA

-

M3

CS1W-ID211

16

DC input

24 VDC

7 mA

Inputs start interrupt tasks in PLC program

M3

CS1W-INT01

16

DC input

24 VDC

7 mA

Latches pulses down to 50 µs pulse width

M3

CS1W-IDP01

32

DC input

24 VDC

6 mA

-

1 × 40 pt Fujitsu

CS1W-ID231

64

DC input

24 VDC

6 mA

-

2 × 40 pt Fujitsu

CS1W-ID261

96

DC input

24 VDC

5 mA

-

2 × 56 pt Fujitsu

CS1W-ID291

8

Triac output

250 VAC

1.2 A

-

M3

CS1W-OA201

16

Triac output

250 VAC

0.5 A

-

M3

CS1W-OA211

8

Relay output

250 VAC

2.0 A

-

M3

CS1W-OC201

16

Relay output

250 VAC

2.0 A

-

M3

CS1W-OC211

16

DC output (sink)

12 to 24 VDC

0.5 A

-

M3

CS1W-OD211

16

DC output (source)

24 VDC

0.5 A

With short-circuit protection, alarm

M3

CS1W-OD212

32

DC output (sink)

12 to 24 VDC

0.5 A

-

1 × 40 pt Fujitsu

CS1W-OD231

32

DC output (source)

24 VDC

0.5 A

With short-circuit protection, alarm

1 × 40 pt Fujitsu

CS1W-OD232

64

DC output (sink)

12 to 24 VDC

0.3 A

-

2 × 40 pt Fujitsu

CS1W-OD261

64

DC output (source)

24 VDC

0.3 A

With short-circuit protection, alarm

2 × 40 pt Fujitsu

CS1W-OD262

96

DC output (sink)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-OD291

96

DC output (source)

24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-OD292

32+32

DC output (sink)

12 to 24 VDC

0.3 A

-

2 × 40 pt Fujitsu

CS1W-MD261

32+32

DC in+out (source)

24 VDC

0.3 A

With short-circuit protection, alarm

2 × 40 pt Fujitsu

CS1W-MD262

48+48

DC output (sink)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-MD291

48+48

DC in+out (source)

12 to 24 VDC

0.1 A

-

2 × 56 pt Fujitsu

CS1W-MD292

Connection cable between I/O terminal block and I/O unit with 40-pt Fujitsu connector ( _ _ _ = length in cm)

Fujitsu (40pt)

XW2Z-___B

I/O terminal block for input unit with 40-pt Fujitsu connector

Push-in

XW2R-P34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

Push-in

XW2R-P34G-C3

I/O terminal block for input unit with 40-pt Fujitsu connector

Clamp

XW2R-E34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

Clamp

XW2R-E34G-C3

I/O terminal block for input unit with 40-pt Fujitsu connector

M3 Screws

XW2R-J34G-C1

I/O terminal block for output unit with 40-pt Fujitsu connector

M3 Screws

XW2R-J34G-C3
