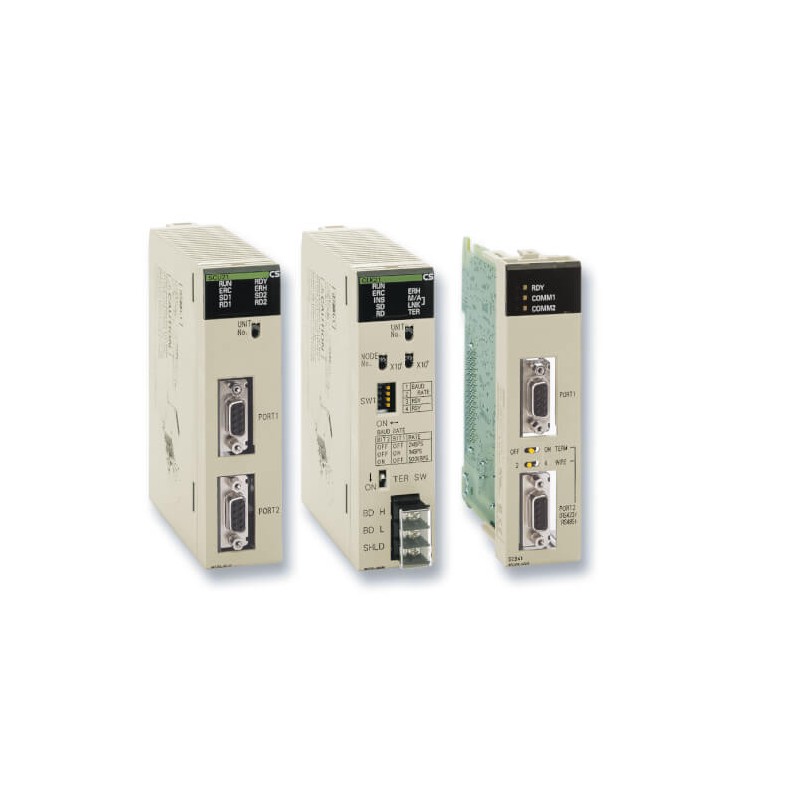

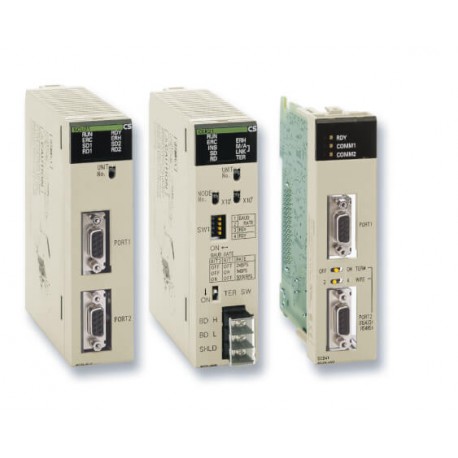

CS1W-RPT03 CS1W0276B 163570 OMRON Repeater-Controller-Link-Kabel lt /lt - gt /gt Glasfaser Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

CS1W-RPT03 CS1W0276B 163570 OMRON Repeater-Controller-Link-Kabel lt /lt - gt /gt Glasfaser

CS1W-RPT03

CS1W0276B

CS1WRPT03

OMRON

Verfügbar Schiff am heute

Repeater Controller-Link-Kabel-Glasfaser

Controller Link Kabelrepeater-FiberOptik

Mehr Infos


Steuerungssysteme > Zubehör Steuerungssysteme

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON

Gesamtpreis: $1,743.49
Stückpreis: $1,743.49

Menge Preis
1+$1,743.49
2+$1,743.49
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wenn unser Preis nicht der beste ist, fragen Sie uns nach einem Angebot Fordern Sie ein Angebot

Mehr Infos

▲


Spezifikationen & Bestellinfo

Ordering information

Type

Ports

Protocols

Unit class

Remarks

Connection type

Order code

Serial

2 × RS-232C

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU bus unit

-

9-pin D-Sub

CS1W-SCU21-V1

Serial

2 × RS-422/RS-485

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU bus unit

-

9-pin D-Sub

CS1W-SCU31-V1

Serial

2 × RS-232C

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU option board

-

9-pin D-Sub

CS1W-SCB21-V1

Serial

1 × RS-232C +
1 × RS-422/RS-485

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU option board

-

9-pin D-Sub

CS1W-SCB41-V1

GP-IB

Master/Slave selectable

GP-IB instrument
communication

Special I/O unit

-

GP-IB

CS1W-GPI01

Ethernet

1 × 100 Base-Tx

UDP, TCP/IP, FTP server,
SMTP (e-mail), SNTP (time adjust),
FINS routing, socket service

CPU bus unit

-

RJ45

CS1W-ETN21

Controller link

2-wire twisted pair

Omron proprietary

CPU bus unit

-

2-wire screw + GND

CS1W-CLK23

Optical HPCF

-

2 × HPCF connector

CS1W-CLK13

Optical graded-index fiber

-

4 × ST connector

CS1W-CLK53

EtherNet/IP

1 × 100 Base-Tx

EtherNet/IP, UDP, TCP/IP, FTP server, SNTP, SNMP

CPU Bus unit

31 mm

RJ45

CS1W-EIP21

DeviceNet

1 × CAN

DeviceNet

CPU bus unit

-

5-p detachable

CS1W-DRM21-V1

CompoNet

4-wire, data + power to slaves (Master)

CompoNet (CIP-based)

Special I/O unit

-

4-p detachable IDC
or screw

CS1W-CRM21

CompoBus/S

2-wire (Master)

Omron proprietary

Special I/O unit

-

2-wire screw +
2-wire power

CS1W-SRM21

PROFIBUS-DP

1 × RS-485 (Master)

DP, DPV1

CPU bus unit

-

9-pin D-Sub

CS1W-PRM21

CAN

1 × CAN

CANopen, User-defined

CPU bus unit

-

5-p detachable

CS1W-CORT21

PROFINET IO

1 × 100 Base-Tx
PROFINET IO controller

FINS UDP

CPU bus unit

-

RJ45

CS1W-PNT21

PROFIBUS-DP

1 × RS-485 (Slave)

DP

C200H special
I/O unit

C200H units cannot be used on CS1D systems

9-pin D-Sub

C200HW-PRT21

Accessories

Description

Connection type

Order code

RS-232C to RS-422/RS-485 signal converter. Mounts directly on serial port.

9-pin D-sub to screw clamp terminals

CJ1W-CIF11

Controller link PCI board with support software

PCI, wired CLK

3G8F7-CLK23-E

Controller link PCI board with support software

PCI, HPCF connectors

3G8F7-CLK13-E

Controller link PCI board with support software

PCI, ST connectors

3G8F7-CLK53-E

Controller link repeater unit (wire to wire)

Screw - Screw

CS1W-RPT01

Controller link repeater unit (wire to HPCF fiber)

Screw - HPCF connector

CS1W-RPT02

Controller link repeater unit (wire to graded-index glass fiber)

Screw - ST connector

CS1W-RPT03

PROFIBUS DP to RS-422/RS-485 Serial Gateway. User-configurable, with Omron protocols built-in.

9-pin D-sub to screw clamp terminals

PRT1-SCU11

PROFINET IO + ModBus/TCP to Modbus/RTU (RS-485) Gateway.

3 × RJ45 to screw clamp terminals

EJ1N-HFU-ETN

Note: For Ethernet Cables and Accessories, see page

Zubehör

Ethernet cables and accessories

EtherCAT patch cables, improved shield

Shape

Connector 1

Connector 2

Material

Cable

Color

Length in cm

Order code

20

30

50

100

150

200

300

500

750

1000

1500

2000


M12 straight

M12 straight

PVC

AWG22, 2 pairs

Black

–

–

⬛

⬛

–

⬛

⬛

⬛

–

⬛

–

–

XS5W-T421-[.]M2-SS


M12 straight

RJ45

PVC

AWG22, 2 pairs

Black

–

–

⬛

⬛

–

⬛

⬛

⬛

–

⬛

–

–

XS5W-T421-[.]MC-SS

Note: For [.] fill in the 1-character length code.

Ethernet patch cables, standard RJ45 connectors

Shape

Connector 1

Connector 2

Material

Cable

Color

Length in cm

Order code

20

30

50

100

150

200

300

500

750

1000

1500

2000


RJ45 std.

RJ45 std.

LSZH

Cat6a S/FTP 4 pairs

Blue

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-6LSZH8SS[...]CM-B


RJ45 std.

RJ45 std.

LSZH

Cat6a S/FTP 4 pairs

Yellow

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-6LSZH8SS[...]CM-Y


RJ45 std.

RJ45 std.

LSZH

Cat6a S/FTP 4 pairs

Green

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-6LSZH8SS[...]CM-G


RJ45 std.

RJ45 std.

PUR

Cat5e S/FTP 4 pairs

Green

–

–

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-5PUR8SS[...]CM-G

Note: For [...] fill in the length in cm.

Ethernet patch cables, RJ45/M12 connectors

Shape

Connector 1

Connector 2

Material

Cable

Color

Length in cm

Order code

30

50

100

200

300

500

1000

1500


RJ45

RJ45

PVC

Cat5e Shielded Quad

Light Blue

A

B

C

D

E

G

J

K

XS5W-T421-[.]MD-K


M12 straight

M12 straight

PVC

Cat5e Shielded Quad

Light Blue

–

B

C

D

E

G

J

K

XS5W-T421-[.]M2-K


M12 straight

RJ45

PVC

Cat5e Shielded Quad

Light Blue

A

B

C

D

E

G

J

K

XS5W-T421-[.]MC-K


M12 angled

M12 angled

PVC

Cat5e Shielded Quad

Light Blue

–

B

C

D

E

G

J

K

XS5W-T422-[.]M2-K


M12 angled

RJ45

PVC

Cat5e Shielded Quad

Light Blue

A

B

C

D

E

G

J

K

XS5W-T422-[.]MC-K

Note: For [.] fill in the 1-character length code.

Specifications

Item

XS6W-6LSZH8SS_CM-_

XS6W-5PUR8SS_CM-G

Rated current

1 A (at 50°C)

Withstand voltage

1,000 VDC for 60 s (leakage current: 1 mA max.)

Ambient operating temperature

−20 to 60°C

−40 to 85°C

Ambient storage temperature

−20 to 60°C

−40 to 85°C

Ambient installation temperature

0 to 50°C

−10 to 60°C

Protective structure

IP20

IP20

Accessories

Ethernet cables and accessories

Accessories

Type

Connector

Specification

Color

Length

Order code

Ethernet installation cable


none

CAT 5, SF/UTP, 4 × 2 × AWG 24/1
(solid core), Polyurethane (PUR)

Green

100 m

WM IE-5IC4x2xAWG24/1-PUR

Ethernet installation cable


none

CAT 5, SF/UTP, 4 × 2 × AWG 26/7
(stranded core), Polyurethane (PUR)

100 m

WM IE-5CC4x2xAWG26/7-PUR

Ethernet socket


RJ45 socket

DIN-rail mount socket to terminate
installation cable in the cabinet

Grey

60 × 17.5 × 67 mm

WM IE-TO-RJ45-FJ-B

Ethernet field-mount plugs


Metal RJ45

for AWG22 to AWG26

Chrome

52 mm

WM IE-PS-RJ45-FH-BK

Ethernet field-mount plugs


Plastic RJ45

for AWG22 to AWG24

Black

52 mm

XS6G-T421-1

Industrial switching hubs

Shape

Functions

Ports

Failure detection

Power supply voltage

Order code


Quality of Service (QoS):

EtherNet/IP control data priority

Failure detection:

Broadcast storm and LSI error detection
10/100BASE-TX, Auto-negotiation

3

–

24.0 VDC±5%

W4S1-03B


5

W4S1-05B

⬛

W4S1-05C

EtherCAT junction slave

Shape

Functions

Ports

Power supply voltage

Order code


Creation of star- and tree topologies
in EtherCAT networks.

Distributed Clock (DC) is supported.

3

20.4 to 28.8 VDC

(24 VDC –15% to 20%)

GX-JC03


6

GX-JC06
