NA5-15W101B
392731
NA579008M
OMRON
1
Verfügbar Schiff am heute

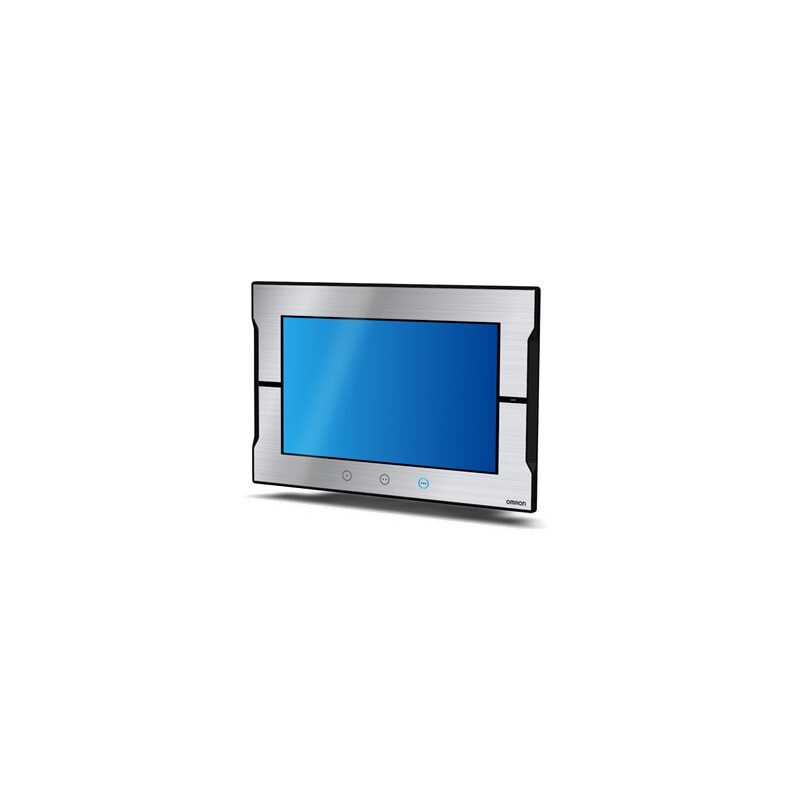

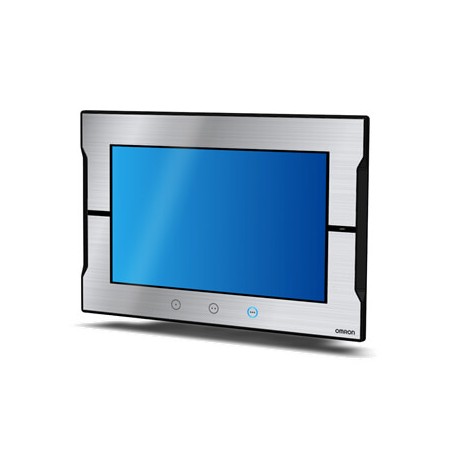

Schnittstelle zu Sysmac NA, 15.4"", 1280x800, TFT 16.7 mill. farben: Schwarz
Industriesteuerungen SPS > Grafik-Panel
Programmierbare Bedienterminals (HMI) > NA-Serie
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Ein dynamisches, intuitives und vorausschauendes MMI macht moderne Maschinen noch attraktiver und wettbewerbsfähiger. Das Sysmac MMI ermöglicht es, Prozesse noch schneller und effizienter zu steuern und zu beobachten und stellt ein natürliches, proaktives Interface zwischen Maschine und deren Bediener dar.
−20 to +60°C3 | ||||
10 to 90%2 | ||||
5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2for 100 minutes each in X,Y, and Z directions | ||||
Front-panel controls: IP65 oil-proof type, UL type 4X (using a high pressure waterproof attachment (PWA)) | ||||
The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.) | ||||
UL 508/CSA standard C22.2 No.1424 |
*1The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
·The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
· The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
· The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.
*2Use the Programmable Terminal within the following temperature and humidity ranges.
*3Store the Programmable Terminal within the following temperature and humidity ranges.
Titel: | Größe: | Typ: |
---|---|---|
NA5-15W101B NA579008M 392731 v413_sysmac_automation_platform_machine_interface_na_series_brochure_de.pdf | 4 Mbytes | |
NA5-15W101B NA579008M 392731 | 240 Kbytes |
